Seller of Motorized Lab Jack, Travel 10 mm
Specification
Model Number |
06DS10 |
Travel |
10mm |
Dimension |
70mmx70mm |
Driver |
Ball Screw |
Guide |
Sliding Guide |
Stepper Motor(1.8°) |
SST42D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
5kg |
Weight |
2kg |
Min Adjustment |
5μm(non-MS drive) 0.25μm(20-MS drive) |
Max Speed |
5mm/sec |
Repeatability |
7μm |
Backlash |
3μm |
Feature
*Regular stages set with stepper motors and RS232 interfaces, can connect with motion controller conveniently.
*High accuracy cross-roller guide for high performance and smooth moving
*Mounting holes both on the top and bottom of table for combine with other stages easily
*The stages can be redesigned.

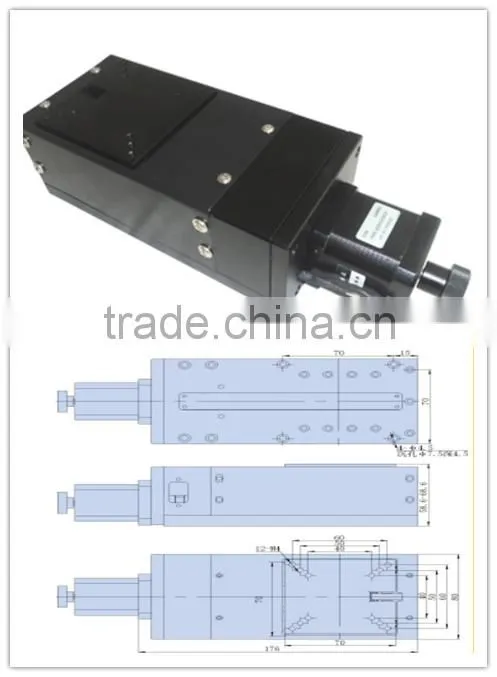

Product drawings
