motorized linear moving stages

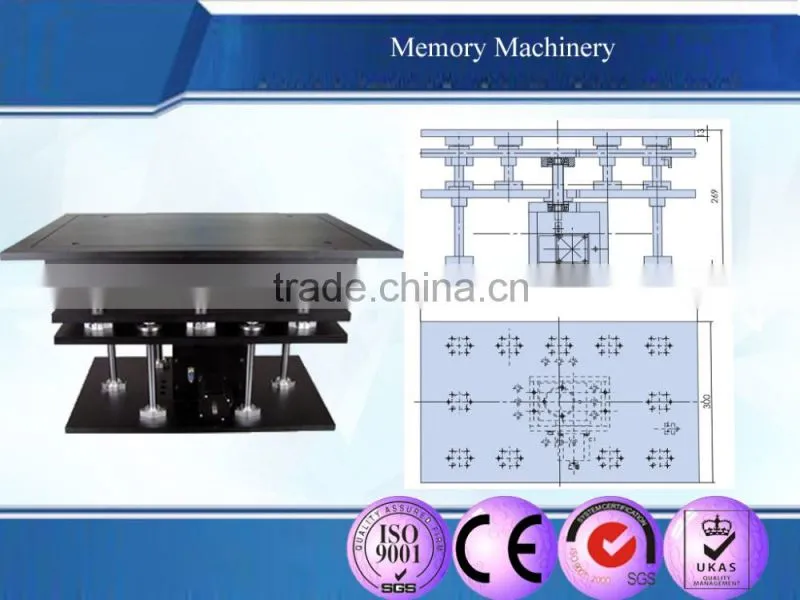

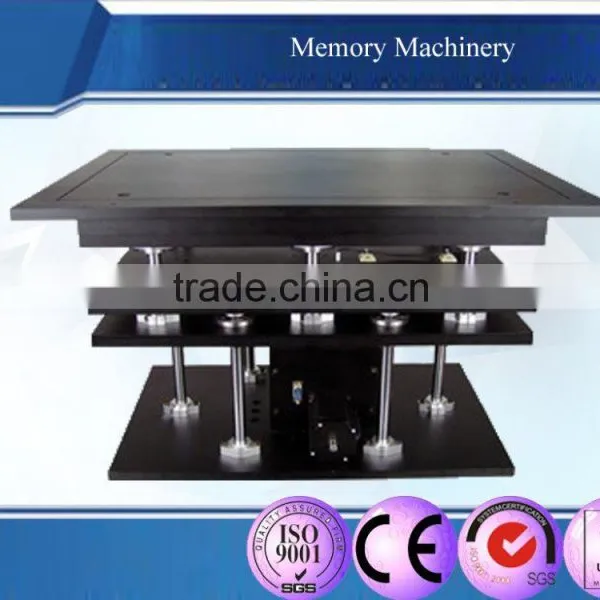

Low Loading Motorized Linear Moving Stages (Round Guide Type)
Model Number |
05DP50 |
05DP100 |
05DP150 |
05DP200 |
05DP300 |
|
Travel Range |
50mm |
100mm |
150mm |
200mm |
300mm |
|
Oversize |
90X90mm |
90X90mm |
90X90mm |
100X120mm |
100X120mm |
|
Bearing |
High Precise Ball Screw with 4mm leading |
|||||
Travel Guide |
Round rail |
|||||
Stepper Motor |
1.8° 2-phase STP-57D3016 stepper motor (servo optional) |
|||||
Material |
Aluminum Alloy |
|||||
Surface Treatment |
Black-Anodized |
|||||
Loading |
15kg |
10kg |
7kg |
5kg |
||
Weight |
2.8kg |
3.4kg |
4.5kg |
4.8kg |
6.3kg |
|
Resolution |
20μm /pulse, non-ms driver 1μm /pulse, 20ms driver |
|||||
Max Speed |
40mm/sec |
|||||
Repeatability |
3μm |
|||||
Accuracy |
5μm |
|||||
Straightness |
5μm |
6μm |
8μm |
|||
Degree of Parallelization |
10μm |
15μm |
20μm |
|||
Pitching |
25” |
50” |
60” |
|||
Yawing |
20” |
25” |
30” |
|||
Backlash |
5μm |
|||||
Optional Accessories |
Brake Function, Grating Scales, Servo Motor and Dust Cover |
|||||
Features
*High precise ball screw provides high-performance and high-accuracy
*RS232 interface for connecting motion controller easily
*Round guide for long travel but low-loading use
*Special design for couple with other stage easily
*The basic type can set with grating scales, servo motor
*RS232 interface for connecting motion controller easily
