15 tons daily industrial folding type rice vermicelli making machine/thin rice vermicelli production line
Folding type thin rice vermicelli show
Introduction
The rice vermicelli making machine is one industrial plant. The whole process is fully automatic from flour inset, flour mixing, flour feeding, first extruding, second extruding, vermicelli forming, steaming, aging, washing, folding the shape,drying, cooling and packaging.
Beside the rice flour, it also can process various kinds of flours, such as wheat, rice ,corn, oats, millet, barley, buckwheat, starch flours and compound flours etc.
The Production Process based on Chinese method as following:
Mixing the rice flour --flour ripening---lifting rice flour to the flour feeder ---feeding rice flour to extruder --- first extrusion --second extrusion --- rice vermicelli forming ---first aging ---steaming --- second aging ---washing ---folding and drying---cooling
Note: According to the rice feature and rice vermicelli texture preferrence in different areas, so the rice vermicelli process is not totally same. We can make the process as the customer's special requirement.
Thai & India thin rice vermicelli process as following:
Mixing the rice flour --steamed the mixed well rice flour---lifting rice flour to the flour feeder ---feeding rice flour to extruder ---extruding --- rice vermicelli forming ---steaming rice vermicelli ---aging ---washing ---folding and drying---cooling
The features : Folding Rice Vermicelli Machine/Thin Rice Vermicelli Production Line
|
1 High automatic production Highly automatic controlled production line which realizes the continuous production of the first aging, steaming, second aging, vermicelli loosing and drying. |
|

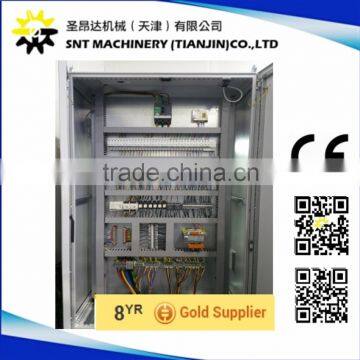

2 Strict process control In order to guarantee the high quality of the products and achieve the industrialized production, the whole production line is controlled by scored of frequency converters and PLC which could adjust technical parameters for each unit. |
|
3 Continuous aging,steaming process The aging tunnel is adopted the multi-levels with humid and temperature controlled system which shorten the aging time, save the energy resource and low down the cost of production. |
|
4 Automatic loosing, saving much labor The automatic vermicelli loosing machine which save a great labor and improve the profit space of production. |
|

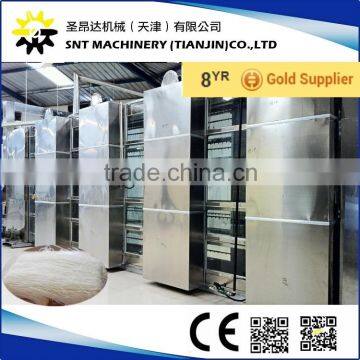

5 Excellent drying effect In order to meet the demands of drying curve and achieve the better drying effect, the drying tunnel is adopted the up and down multi-level design and strict control of humid and temperature in each section. |
Models : Folding Rice Vermicelli Machine /Thin Rice Vermicelli Production Line
|
Model |
Daily output (ton) |
Dimension (L x W x H)m |
Compressed air (m3/min) |
Steam Kg/h |
Power Kw |
Operator |
LR4 |
4 |
56.4 x 3 x 3.6 |
0.7 |
700 |
80 |
10+ |
LRV7 |
7 |
71 x 3 x 3.6 |
1.2 |
1000 |
120 |
12+ |
LRV15 |
15 |
96 x 4.7 x 3.6 |
1.6 |
1500 |
200 |
15+ |
our company supples excellent pre-sales to after-sales service
1 supply solutions according to the buyer's special demands ;
2 design the total installation of the manufacturing line ;
3 supply information of the related device ;
4 install the machine, provide the technicial assistance both at check-up and startup;
5 train the operators;
6 12 months warranty and longlife paid maintenance.
Welcome to SNT Machinery
Saint Ngong Tat Machinery Company (Tianjin) Limited (SNT for short) is the sole-venture
enterprise of Wang Wai Tat Machinery Company (Hong Kong) which specializes in the extruding
technology noodles making machine. SNT Machinery was established in Tianjin 1992. We have
developed several series of noodle machines, such as non-fried instant noodle, instant rice
noodle, rice vermicelli, stick rice vermicelli, starch vermicelli and vermicelli production line etc.
Contact
May Wong
Tel:+86 22 2319 3156; 2319 3158
Mobile phone: +86 13820496613
Whats app: +852 63411838
Please feel free to contact with us for your next target at once!
