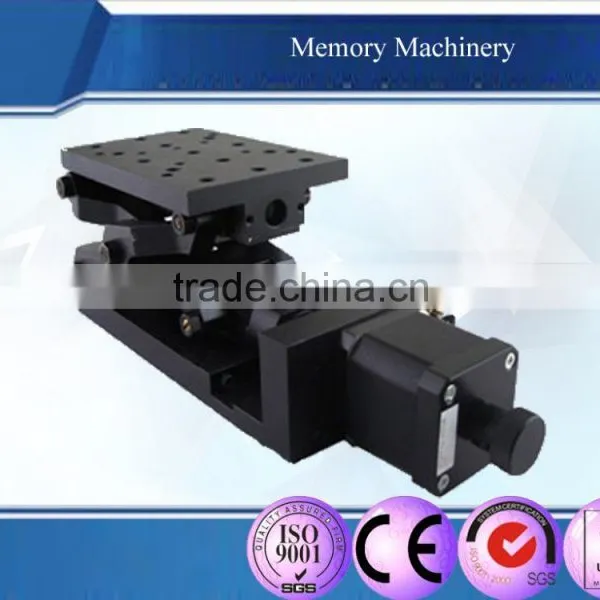

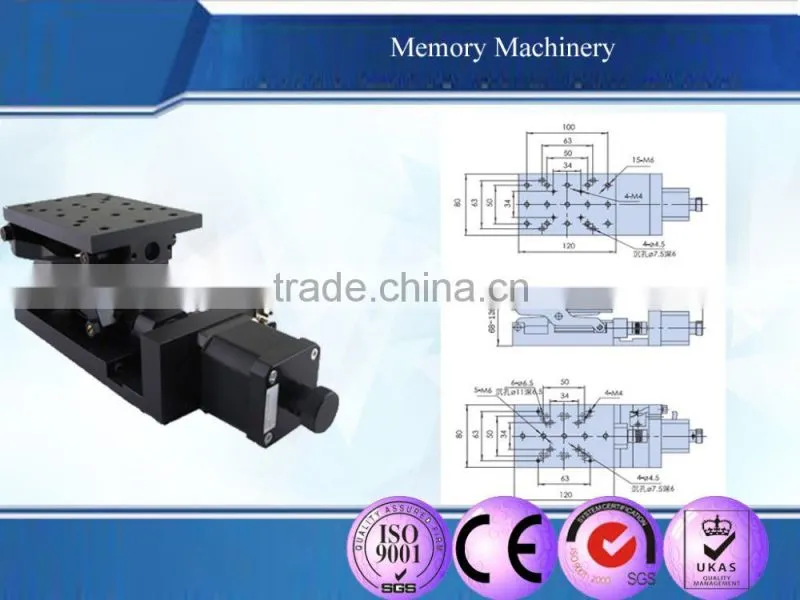

Precision Motorized Lab Jack, Travel 60mm
Specification
Model Number |
01DS60 |
Travel |
60+/-2mm |
Dimension |
120mmx80mm |
Driver |
Lead screw |
Guide |
Sliding Guide |
Stepper Motor(1.8°) |
SST42D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
10kg |
Weight |
1.5kg |
Min Adjustment |
5μm(non-MS drive) 0.25μm(20-MS drive) |
Max Speed |
5mm/sec |
Repeatability |
10μm |
Backlash |
4μm |
Feature
*Regular stages set with stepper motor and RS232 interface, can connect with motion controller conveniently.
*Fork type mechanical structure for lifting with high stability.
*High accuracy lead screw for high performance and smooth moving
*Mounting holes both on the top and bottom of table for combine with other stages easily
*The stages can be redesigned.

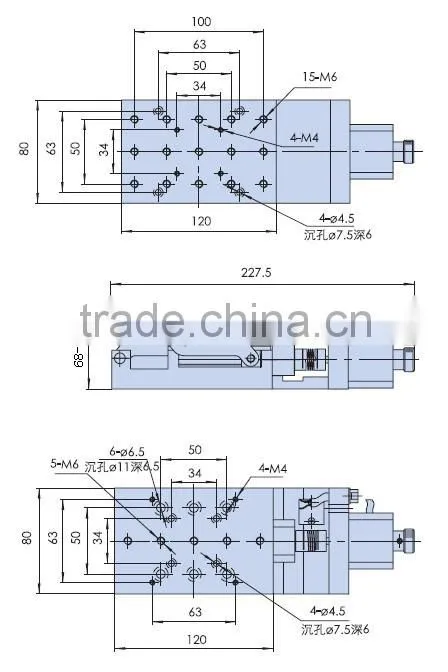

Product drawings
