Aluminum Alloy High Performance Motorized Lab Jack Travel 60mm
1. Specification:
Model Number |
01DS60 |
Travel |
60+/-2mm |
Dimension |
120mmx80mm |
Driver |
Lead screw |
Guide |
Sliding Guide |
Stepper Motor(1.8°) |
SST42D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
10kg |
Weight |
1.5kg |
Min Adjustment |
5μm(non-MS drive) 0.25μm(20-MS drive) |
Max Speed |
5mm/sec |
Repeatability |
10μm |
Backlash |
4μm |
2. Features:
Motorized Electric Lab Jack, Travel 60mm
1) Regular stages set with stepper motor and RS232 interface, can connect with motion controller conveniently.
2) Fork type mechanical structure for lifting with high stability.
3) High accuracy lead screw for high performance and smooth moving
4) Mounting holes both on the top and bottom of table for combine with other stages easily
5)The stages can be redesigned.

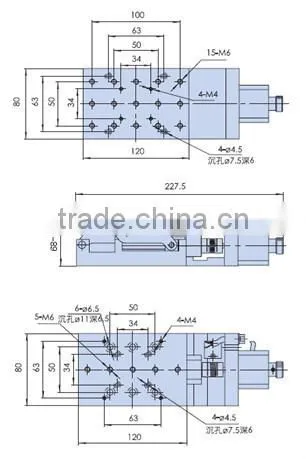

3. Drawing:
4. Product:
Motorized Electric Lab Jack, Travel 60mm
