Motorized Optical Rotation Platform

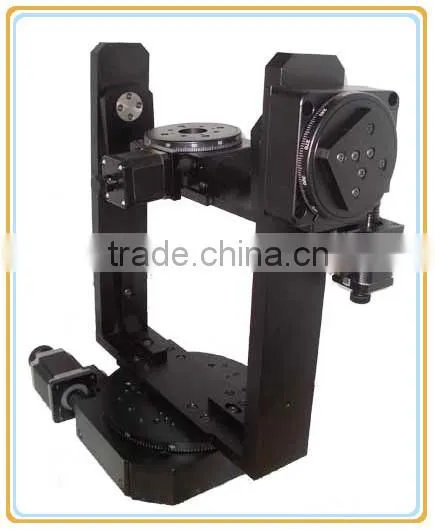

Description: This three axis rotation system is used to position specimens and sensors in 3D space for simulation and calibration.
This custom motion system is built with standard rotation stages, 2*02DX100 and 1*03DX200 and provides a high-performance and high-accuracy positioning by the motors.
If you require the 360°of continuous rotation, the motion system must be designed by slip ring, like the picture showed below. It will achieve the 360°continuous rotation for all three axes.
Specification:
Model Number |
3WDX200 |
Angle Range |
360°for X, Y, Z axis |

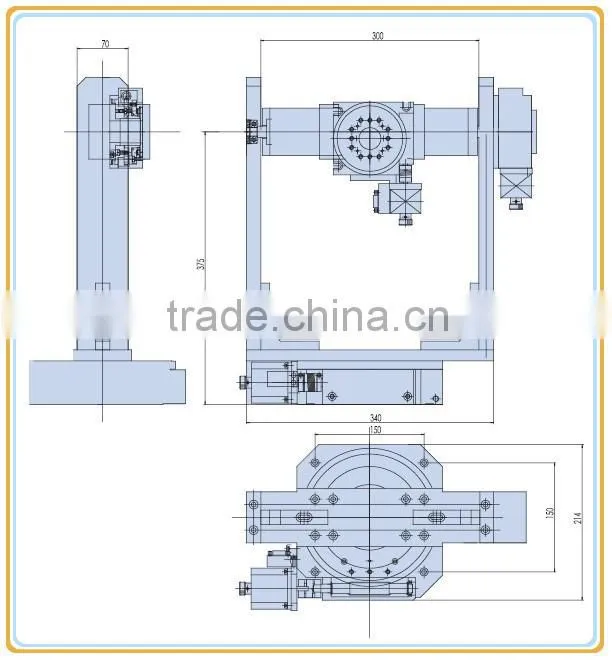

Dimension |
150x150mm |
Worm Gear Ratio |
180:1 |
Driver |
Worm Gear |
Guide |
Bearing |
Stepper Motor(1.8°) |
SST57D3301 |
Material |
Aluminum |
Surface Treatment |
Black-anodized |
Loading |
10kg |
Weight |
10kg |
Resolution |
0.01°, non-ms driver 0.0005°, 20MS driver |
Speed |
10°/sec |
Repeatability |
0.005° |
Run-out of top plate |
15μm |
Backlash |
0.005° |
