Specifications
Lab Jack/Vertical Stage
1.Load capacity:10kg/18kg
2.Scissor-shaped raising and lowering support.
3.Double-guide rail.
Lab Jack /Motorized Vertical TranslationStage
Features
1. Stepping motor as standard configuration,raising and lowering automatically adjusted and controlled.
2. Scissor-shaped raising and lowering support,driven by precision abrasive screw;
3. Double-guide rail and 5-axis through positioning mechanism to guarantee absolutely stable movement;
4. Multiple hole sites design on both up and low sides,high adaptability.
Technical Parameters

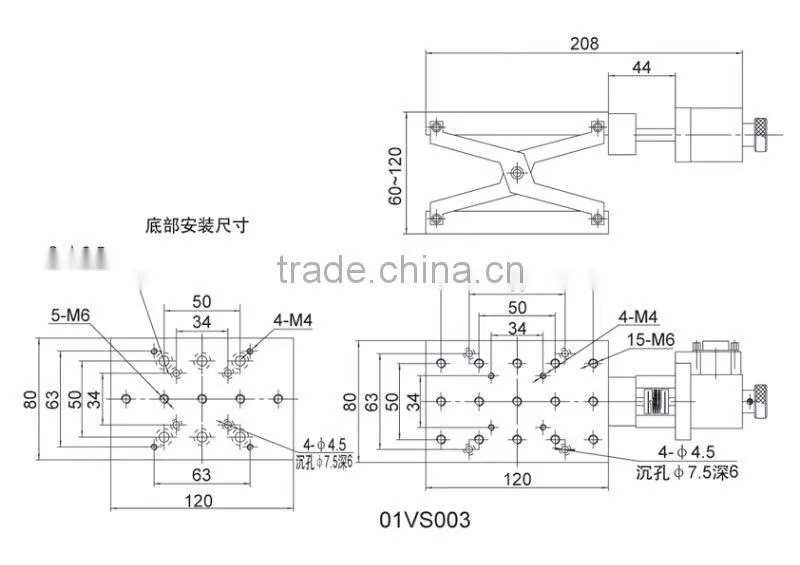

Model |
01VS003 |
01VS004 |
Stroke,mm |
60 |
130 |
Table Top Size,mm |
80×120 |
120×240 |
Resolution(8 subdivisions) |
0.005mm |
|
Repeat Positioning Accuracy |
Less than0.02mm |
|
Maximum Speed |
25mm/s |
25mm/s |
Stepping Motor |
2-phase |
2-phase |
Maximum static Torque |
40Ncm |
80Ncm |
Maximum Load |
10kg |
18kg |
Dead Weight |
1.5kg |
3kg |
