Mini Motorized Rotation Stage(diameter 60mm)
1. Specification
Item Number |
01DX60 |
Angle Range |
360° |
Dimension |
diameter 100mm |
Worm Gear Ratio |
180:1 |
Drive Mechanism |
Worm Gear |
Guide |
Bearing |
Stepper Motor(1.8°) |
SST4202121 |
Material |
Aluminum |
Surface Treatment |
Black- Anodized |
Loading |
30kg |
Weight |
1.2kg |
Resolution |
0.02°non-driver 0.01°20 MS driver |
Speed |
25°/sec |
Repeatability |
0.005° |
Accuracy |
0.01° |
Run Out of Top |
15μm |
Backlash |
0.005° |
Eccentricity |
5μm |
Degree of Parallelization |
80μm |
2. Feature:
1) Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily
2) High precision Worm gear design for high accuracy, loading and long working time.
3) Forward and reverse rotate are possible
4) The stage could use in vertical and assemble with other stages
5) 60mm diameter dimension but without through hole
6) The regular stage without limit switch and home position, but can add according to requirements

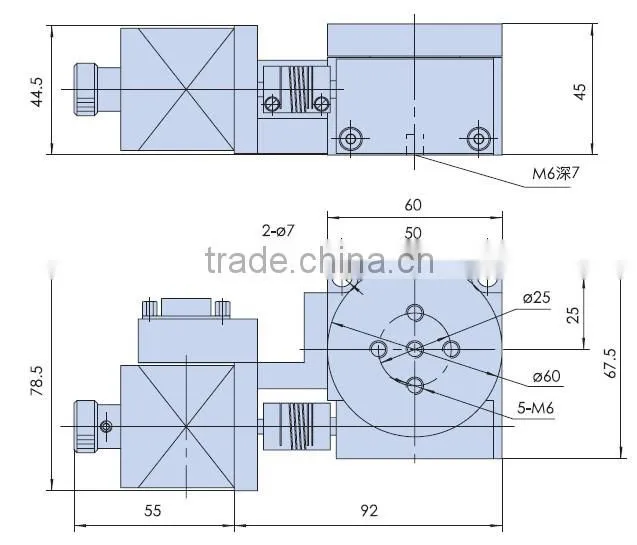

3. Drawing:
4.Product:
Welcome to send me your inquiry, ummi (at) friend - hardware . c o m
