Help CenterMini Motorized Rotation Stage
Related Products
-
Mini Motorized Rotation Stage(diameter 100mm)US$ 350 - 500MOQ: 1 Set -
Motorized Electric Lab Jack, Travel 10 mmUS$ 399 - 3,999MOQ: 1 Set
-
Motorized Lab Jack, 60mmTravelUS$ 399 - 3,999MOQ: 1 Set
-
Precision Motorized Lab Jack, Travel 60mmUS$ 399 - 3,999MOQ: 1 Set
-
Motorized Lab Jack/ Vertical Translation StageUS$ 399 - 3,999MOQ: 1 Set

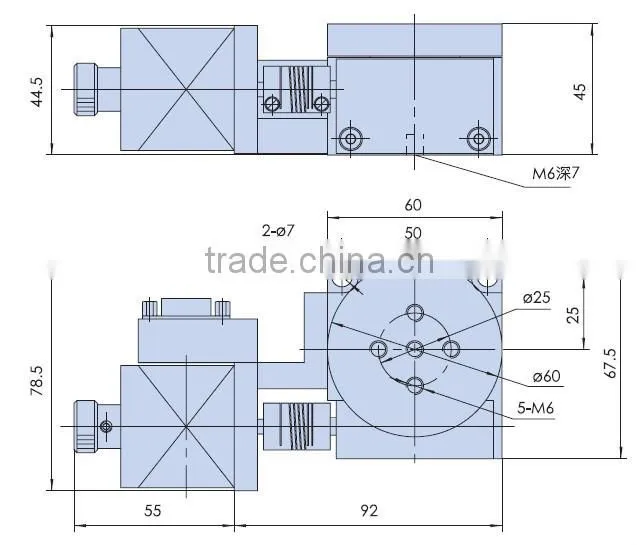

Item Number |
01Dx60 |
Angle Range |
360° |
Dimension |
diameter 60mm |
Worm Gear Ratio |
90:1 |
Drive Mechanism |
Worm Gear |
Guide |
Bearing |
Stepper Motor(1.8°) |
SST4202121 |
Material |
Aluminum |
Surface Treatment |
Black- Anodized |
Loading |
30kg |
Weight |
1.2kg |
Resolution |
0.02°non-driver 0.001°20 MS driver |
Speed |
25°/sec |
Repeatability |
0.005° |
Accuracy |
0.01° |
Run Out of Top |
15μm |
Backlash |
0.005° |
Eccentricity |
5μm |
Degree of Parallelization |
80μm |
Feature
*Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily
*High precision Worm gear design for high accuracy, loading and long working time.
*Forward and reverse rotate are possible
*The stage could use in vertical and assemble with other stages
*200mm diameter dimension and with dia 90mm through hole for add rotating encode possible
*The regular stage without limit switch and home position, but can add according to requirements
