Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > High Quality Motorized Lab Jack, Travel 30mm
High Quality Motorized Lab Jack, Travel 30mm
US$ 100 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
memory
Model Number:
03DS30, 03DS30
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Motorized Rotation StageUS$ 350 - 3,000MOQ: 1 Set -
Mini Motorized Rotation Stage(diameter 100mm)US$ 350 - 500MOQ: 1 Set
-
Motorized Electric Lab Jack, Travel 10 mmUS$ 399 - 3,999MOQ: 1 Set
-
Motorized Lab Jack, 60mmTravelUS$ 399 - 3,999MOQ: 1 Set
-
Precision Motorized Lab Jack, Travel 60mmUS$ 399 - 3,999MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
memory
Model Number
03DS30, 03DS30

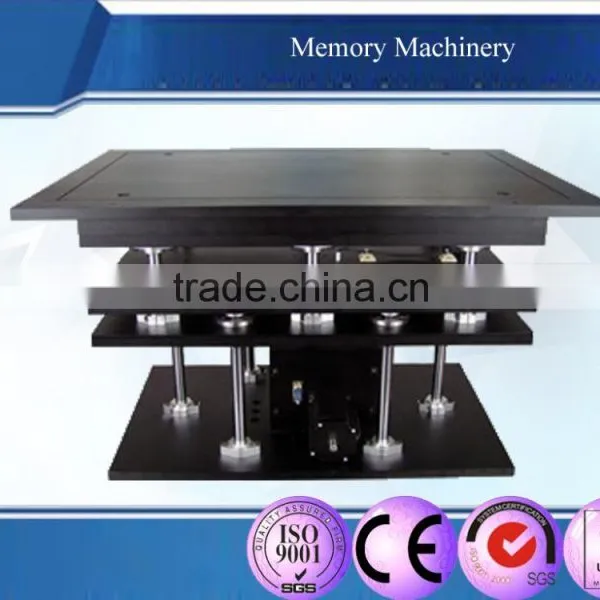

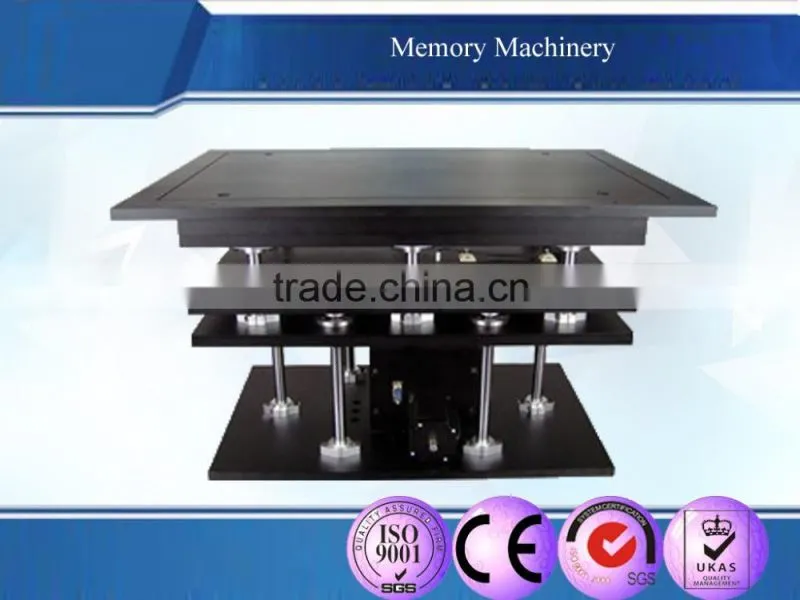

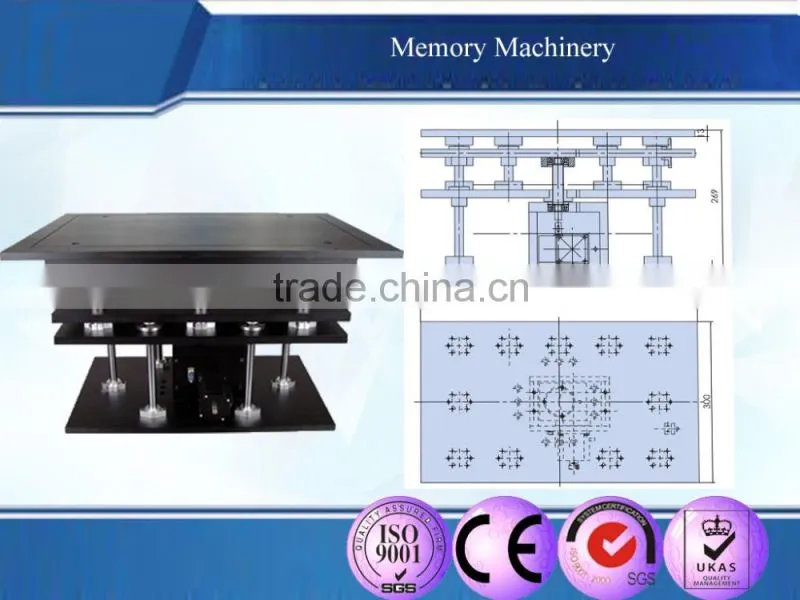

High Quality Motorized Lab Jack, Travel 30mm
Model Number |
03DS30 |
Travel |
30+/-2mm |
Dimension |
500mmx300mm |
Driver |
Lead screw |
Guide |
Sliding Guide |
Stepper Motor(1.8°) |
SST57D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
100kg |
Weight |
35kg |
Min Adjustment |
0.2μm(non-MS drive) |
Max Speed |
10mm/sec |
Repeatability |
4μm |
Backlash |
3μm |
Features:
*Regular stage sets with stepper motor and RS232 interface, can connect with motion controller conveniently.
*Orthogonal changement and muti-axis support mechanical structure for lifting with high stability.
*High accuracy lead screw for high performance and smooth moving
*Mounting holes both on the top and bottom of table for combine with other stages easily
*The stages can be redesigned.
