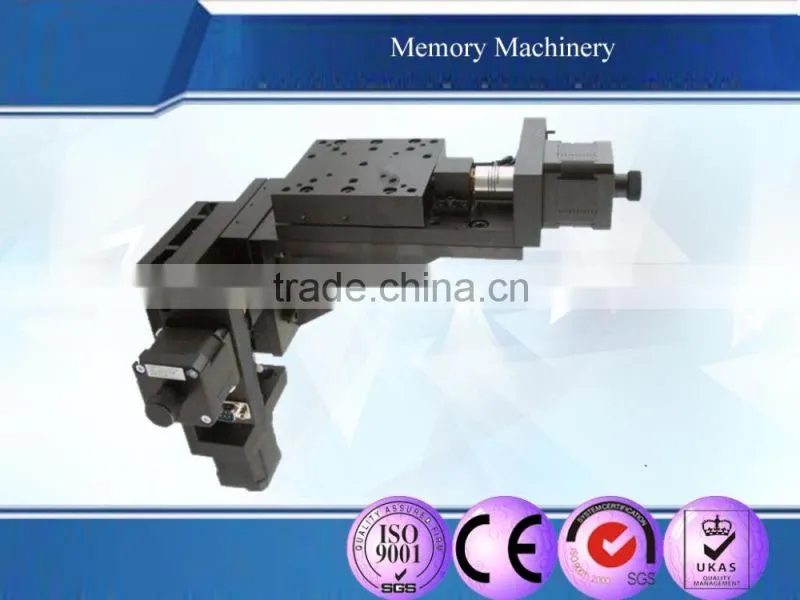

Mini Motorized Linear Moving Stages
1. Specification:
Model Number |
02DP15 |
02DP30 |
02DP50 |
Travel Range |
15mm |
30mm |
50mm |
Bearing |
Lead Screw (0.5mm of leading) |
Lead Screw (1mm of leading) |
|
Travel guide |
Crossed Roller Bearing |
||
Motor |
1.8°2-phase STP-42D3016 stepper motor (servo motor optional) |
||
Material- Finish |
Aluminum Alloy Black- Anodized |
||
Max Loading |
15kg horizontal/ 3kg vertical |
15kg horizontal/ 3kg vertical |
20kg horizontal/ 3kg vertical |
Weight |
1.3kg |
1.6kg |
1.8kg |
Resolution |
2.5um/ Pulse, non-ms driver 0.125um/ Pulse, 20 non-ms driver |
5um/ Pulse, non-ms driver 0.25um/ Pulse, 20 non-ms driver |
|
Max Speed |
5mm/ sec |
10mm/ sec |
|
Repeatability |
3um |
5um |
|
Absolute Accuracy |
8um |
||
Straightness |
8um |
||
Degree of Parallelization |
15um |
||
Pitching |
25’’ |
||
Yawing |
20’’ |
||
Backlash |
5um |
||
Optional Accessories |
Servo Motor, Motion Controller |
||
2. Features:
1) Regular type set with small 1.8°2-phase stepper motor
2) Low-profile, high-accuracy for limited space use
3) Crossed-roller bearing requires the precise movement
4) Original position and limit switches are at both ends can supply the precision positioning and protection.
5) Applies to use in single axis or assemble into multi-axis stages.
6) RS232 interface for connecting motion controller easily
3. Specification For the Model:
(Model Number) |
L |
A |
02DP15 |
192 |
|
02DP30 |
210 |
90 |
02DP50 |
227 |
110 |
02DP75 |
252 |
110 |
4. Drawing:

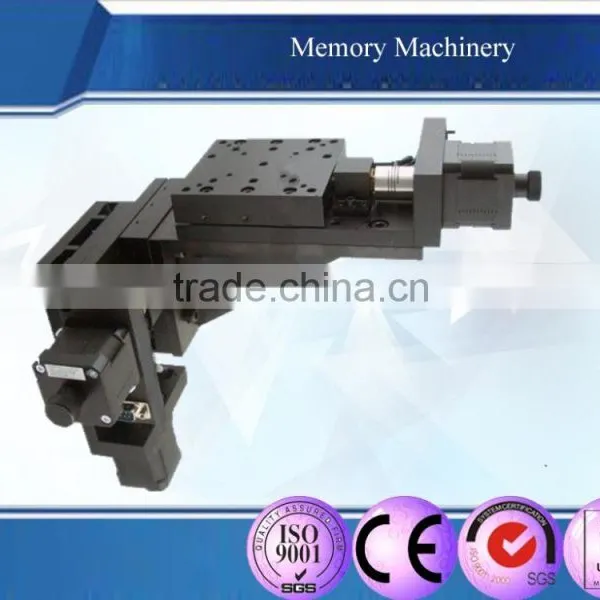

5. Product:
