Motorized Lab Jack, Travel 300mm
Specification
Model Number |
03DS300 |
Travel |
300+/-2mm |
Dimension |
400mmx200mm |
Driver |
Lead screw |
Guide |
Sliding Guide |
Stepper Motor(1.8°) |
SST57D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
50kg |
Weight |
23kg |
Min Adjustment |
0.75μm(non-MS drive) |
Max Speed |
10mm/sec |
Reduction Ratio |
1:25 |
Repeatability |
4μm |
Backlash |
3μm |
Feature
*Regular stages set with stepper motors and RS232 interfaces, can connect with motion controller conveniently.
*Orthogonal changement and muti-axis support mechanical structure for lifting with high stability.
*High accuracy lead screw for high performance and smooth moving
*Mounting holes both on the top and bottom of table for combine with other stages easily
*The stages can be redesigned.

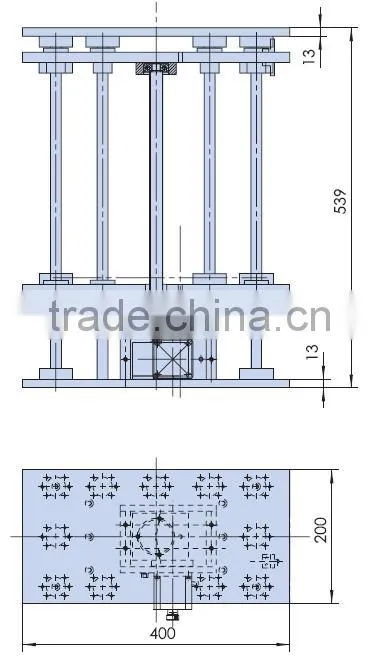

Product drawings
Why choose us--
1. technical specialist
2. prompt delivery
3. high quality
4. competitive price
Our information
mail: alina(at)
skype:afeiluowusheng
web:
