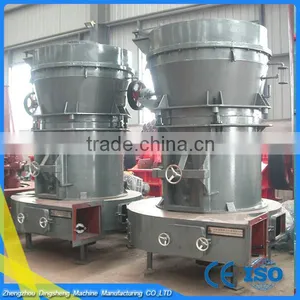

barite Raymond mill with the introduction:
The machine uses advanced structure of similar products at home and abroad, and on the basis of Raymond mill industry update design improvements, the equipment than the ball mill with high efficiency, low power consumption, cover an area of an area small, one-time investment is small. Roller under the action of centrifugal force, rolling on the grinding ring tightly, so when the grinding roller and grinding ring wear to a certain thickness does not affect the output of finished products and fineness. Grinding roller and grinding ring replacement cycle is long, so as to eliminate the disadvantage of the centrifugal mill parts replacement cycle is short. It is the winnowing of airflow in the fan - mill shell - circulation flow in cyclone separator and fan operation, so less than high-speed centrifugal mill dust, workshop clean operation, environment without contamination.
Purpose and scope of barite Raymond mill:
The machine uses advanced structure of similar products at home and abroad, and on the basis of Raymond mill industry update design improvements, the equipment than the ball mill with high efficiency, low power consumption, cover an area of an area small, one-time investment is small. Roller under the action of centrifugal force, rolling on the grinding ring tightly, so when the grinding roller and grinding ring wear to a certain thickness does not affect the output of finished products and fineness. Grinding roller and grinding ring replacement cycle is long, so as to eliminate the disadvantage of the centrifugal mill parts replacement cycle is short. It is the winnowing of airflow in the fan - mill shell - circulation flow in cyclone separator and fan operation, so less than high-speed centrifugal mill dust, workshop clean operation, environment without contamination.
The working principle and structure of barite Raymond mill:
This machine structure is mainly composed of mainframe, analyzer, fan, cyclone separator, powder of cyclone separator and duct. Among them, the host by rack, into the wind volute, shovel knife, roller, grinding ring, cover.
workinghours,will need to crush materials from hood shell side into the hopper add machine, relying on roller device of hanging on the host plum flower shelf, around the vertical axis of revolution, itself rotates at the same time, due to the effect of rotating centrifugal force when the roller swing outward, press in ring, the shovel knife scooping up material to between grinding roller and grinding ring, due to rolling rolling roller to achieve the purpose of crushing material.
model parameter of barite Raymond mill:
Model |
DS-2615 |
DS-2715 |
DS-3016 |
DS-3216 |
DS-4121 |
DS-4628 |
||
Roll grinding number |
3 |
3 |
3 |
4 |
5 |
7 |
||
Roll grinding diameter |
260mm |
270mm |
300mm |
320mm |
410mm |
460mm |
||
Roll grinding height |
150mm |
150mm |
160mm |
160mm |
210mm |
280mm |
||
Maximum feed size |
15mm |
15mm |
20mm |
25mm |
<30mm |
<35mm |
||
Output size(mm) |
0.044--0.165 |
0.044--0.165 |
0.044--0.165 |
0.044--0.165 |
0.095--0.033 |
1.9--0.045 |
||
Main power(kw) |
18.5 |
22 |
30 |
37 |
75 |
185 |
||
|
Finished Product fineness
|
0.125mm |
Capacity (t/h)
|
2.2-3.0 |
2.3-2.8 |
2.5-3.2 |
3.2-4.5 |
6-9.5 |
22-35 |
0.075mm |
1.2-2.0 |
1.8-2.3 |
1.9-2.6 |
2.4-3.1 |
4.5-8 |
15-22 |
||
0.044mm |
0.8-1.2 |
0.9-1.7 |
1.0-2.0 |
1.0-2.5 |
3-5 |
10-15
|
||
Packaging and shipping of barite Raymond mill:
As a professional exporter,our target is to serve worldwide clients with high quality products, great reliability, devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
Zhengzhou Dingsheng Machine Manufacturing Co., Ltd,it is a joint-stock enterprise,which is located in Zhengzhou City,the capital of Henan province.The corporation was established in 2002.
We have our own manufacturing factory.With the innovation and optimization of the industry,we are marketing our products into international market,and the export business is expanding rapidly.
If any questions,please feel free to contact me directly!
