Product Details
| Condition: | New | Type: | Other, COATING MACHINE | Computerized: | No |
| Place of Origin: | Jiangsu, China | Brand Name: | YUYU | Model Number: | C2 |
| Voltage: | 220/380/440V 50Hz | Power(W): | 50-380KW | Dimension(L*W*H): | 22 M*3.5 M*4.1 M |
| Weight: | 20-50T | Certification: | CE | Warranty: | one year, 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

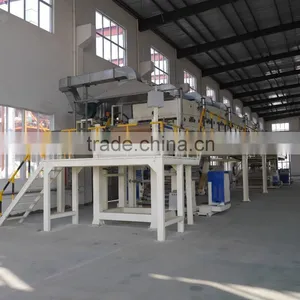

Different Paper coating machine
Specification
1. High-efficiency axial fan oven, drying efficiency, and multi-segment temperature
control, precise control of process requirements under paragraphs oven temperature.
2. Tension segment control, frequency control or digital DC speed control system and
synchronized multi-point controller, the machine synchronous operation.
3. EPC corrector used, ensure that the finished edge of the neatly.
4. Keep volumes can be automatically off of cloth fabric, paper, non stop to achieve
high production efficiency.
5.Plastic coating on the wire rod, high precision, saving glue.
Technical parameters:
Model | YU-500 | YU-1000 | YU-1300 | YU-1600 |
Valid width | 500mm | 1000mm | 1300mm | 1600mm |
Mechanical speed | 5-60m/min | 5-150m/min | 5-220m/min | 5-220m/min |
Coating average degree | 0.01mm | |||
Rewinding edge smooth | 2mm | |||
Total mechanical speed | 20-25HP | 20-65HP | 30-100HP | 40-100HP |
Oven length | design upon the request of the customer | |||
Heating | steam/hot blast/thermal oil/electric/gas furnace | |||
Power supply/voltage | 380v 50HZ | |||
1.Fully Protected by Wooden Shield and Fixed on Pallet.
2.Shipping in Container
