Specifications

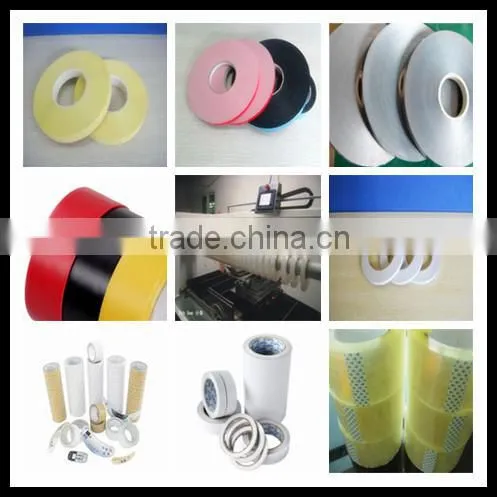

1.multifunctional coating machine2.based material:Bopp,double-sided,kraft paper,PET,foam,cloth,release paper etc
3.high speed
Application field:
Suitable for coating:
Machines in this series are suitable for reel-shape materials such as BOPP, PET, CPP, luminum foil, and paper, 2-layer repetitious laminating, high strength production, producing high-quality compound materials with high freshness preserving, and boiling & steaming resistance.
Features:
1. Full automatic inergrated control.
2. Bar-type gluing and save glue.
3. 5-80m/min hign speed production.
4. Full automatic unwinding and rewinding.
5. Full automatic loading and discharge.
6. High speed automatic cutting cloth and connecting film.
7. Outside heated shell type drying case, easy operation.
8. Slit nozzle blasting dry system for bake oven, high drying effiency.
Technical parameters:
Model |
YU-500 |
YU-1000 |
YU-1300 |
YU-1600 |
Valid width |
500mm |
1000mm |
1300mm |
1600mm |
Mechanical speed |
5-60m/min |
5-150m/min |
5-220m/min |
5-220m/min |
Coating average degree |
0.01mm |
|||
Rewinding edge smooth |
2mm |
|||
Total mechanical speed |
20-25HP |
20-65HP |
30-100HP |
40-100HP |
Oven length |
design upon the request of the customer |
|||
Heating |
steam/hot blast/thermal oil/electric/gas furnace |
|||
Power supply/voltage |
380v 50HZ |
|||

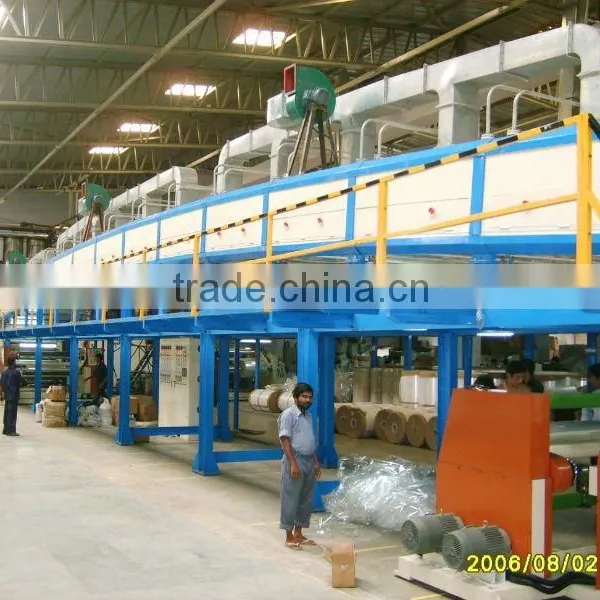

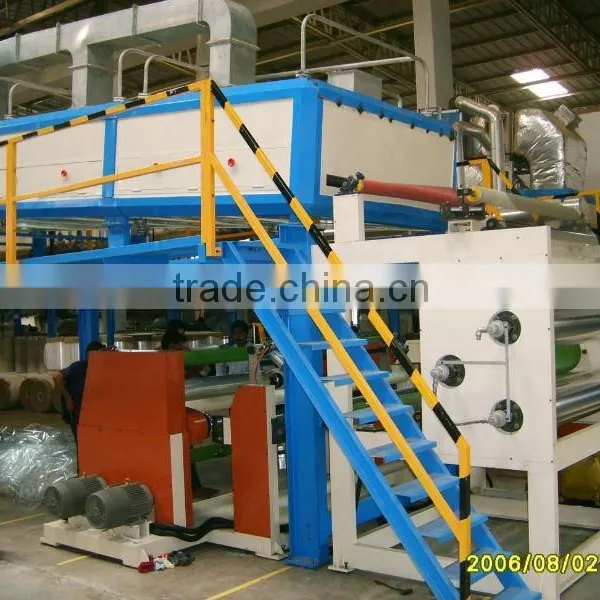

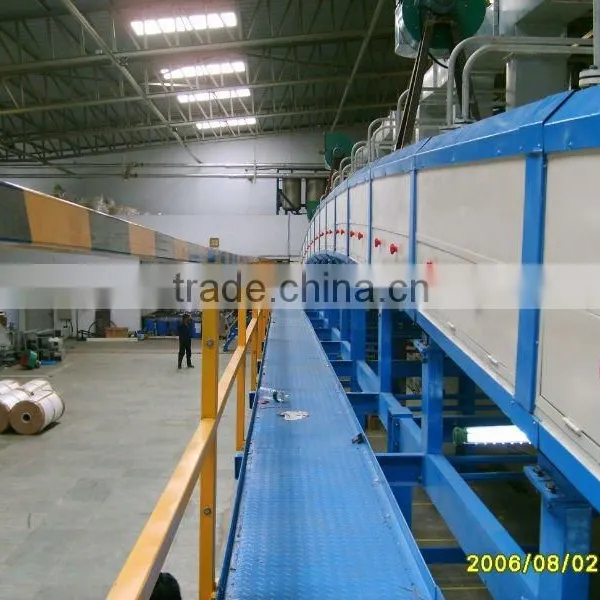

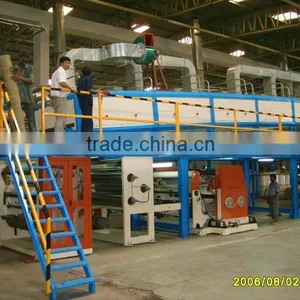

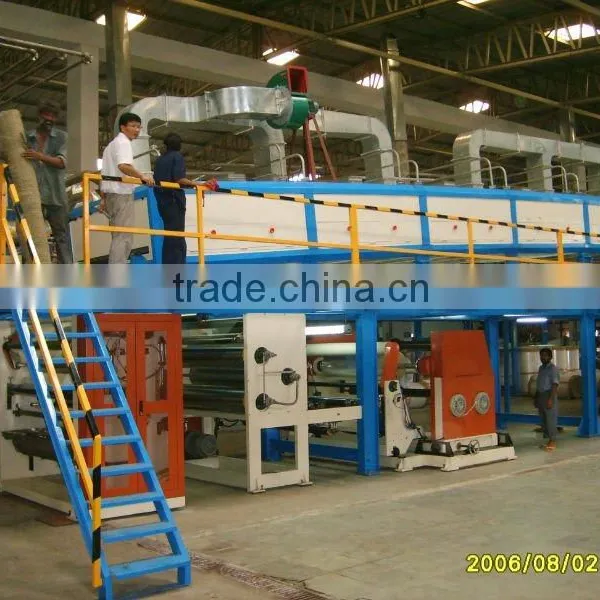

Main equipment:
Item |
Quantity |
Supporting Frame&accessories |
1 set |
Duplex Unwinder&automatic Edge machine |
1 set |
Mayer-bar Coater |
1 set |
7 zones oven(4m/zone)(Not Certain,according to Machine speed) |
28 m |
EPC correction group(out of Oven) |
1 group |
Cooling Group |
1 group |
electrical control system |
1 set |
Duplex Rewinder |
1 group |
Secondary side piping |
1 set |
Secondary wiring |
1 set |
Secondary duct |
1 set |
