Help CenterDSP1200 DIGITAL AMPLIFIER
Related Products
Specifications

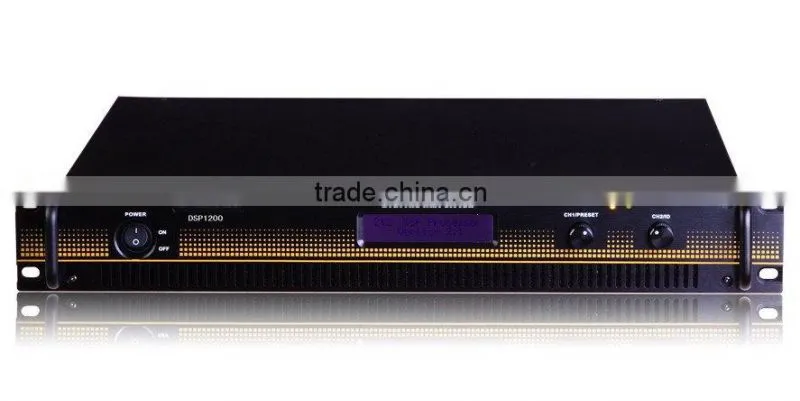

DSP1200 DIGITAL AMPLIFIERFeatures of DSP digital amplifier
*2×2 DSP processing module 24BIT 48KHZ sampling rate 32 bit DSP chip processing
*1 factory preset 32 preset modes for user memories
*With USB and RS485 remote control port
*ID can be set separately in the software and hardware, a maximum of 254 machines can be cascaded
*Independent file preservation preset, upload and download function of complete machine data
*Modes of stereo, bridge, parallel connection and crossover are optional
*Built-in signal generator, output of the sine wave and pink noise, white noise signal is used for system testing
*Data can be copied between channels, functional even at off-line state
DSP1200 DSP Function
*10 band EQ Q value is optional from 0.1 to 128, ±12dB adjustable, optional EQ types, BYPASS for each band
*High-pass and low-pass filter: open choices of frequency, slope: -6- -48dB
*Limiter: threshold 0--90dB compression ratio 1:1-1:20 optional
*start-up time: 1ms-200ms release time: 1ms-1s Delay: 0-1360ms
*Noise gate: -90.0dB-0dB start-up time: 1ms-200ms release time: 1ms-1s
*Phase: 0/180°
*With function of bridge and parallel connection
