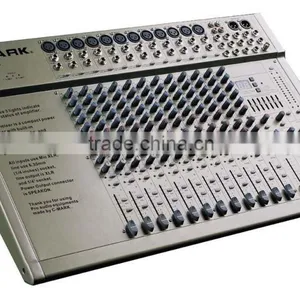

Powered Mixer thumbnail-1

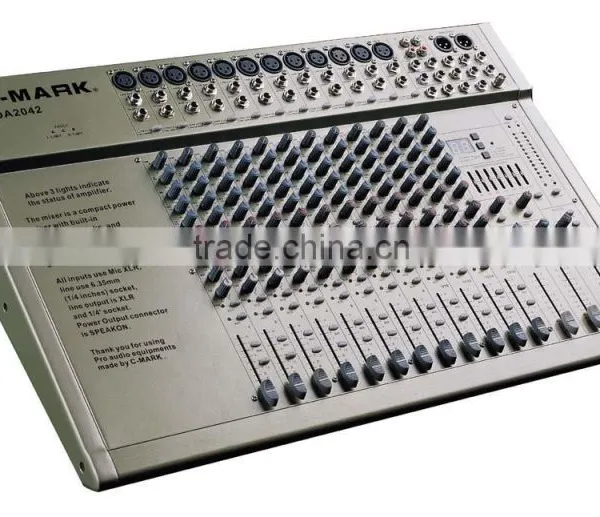

Powered Mixer photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
C-MARK
Model Number:
CDA2042
Contact Supplier Request Quote Chat Now
Shenzhen Bao Ye Heng Industrial Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name C-MARK
Model Number CDA2042

Specifications

effective reduction of the sound system wiring work, plug-and-play, easy and fast, smart dimensions, wider applicability.

SPECIFICATION

GAIN MIN MAX RANGE
Mic(to insert) 10dB 60dB 50dB
Line(to insert) -10dB 40dB 50dB
Stereo Line (to oitput) 0dB 12dB 12dB
Stereo Aux Input(to L/R output) 10dB



INPUY NOISE PERFORMANCE E.I.N.-ALL at MAX GAIN
Mic 150 ohm source -120dBu
Line 150 ohm -97dBu
Sterse Line 150 ohm -100dBu
Aux Input 150 ohm -99dBu


FREQUENCY RESPONSE Input to outputs
Mic to Left,Right
Aux1.2 outputs		 10Hz-85KHz
10Hz-120KHz		 +0/-1dB
+0/-2dB
@30dB Gain setting
Stereo Line to Left,Right
Aux1.2 outputs		 10Hz-75KHz
10Hz-100KHz		 +0/-1dB
+0/-2dB		 @30dB Gain setting
Aux Input to Left,Right outputs 10Hz-120KHz +0/-0.5dB @MAX Gain


MIC INPUT CMRR @1KHz -85dB @40dB Gain
DISTORTION +18dBu @1khz at L/R outputs (22Hz-22kHz)
Mic 0.0068% @ 30dB Gain
Line 0.0070% @ 10dB Gain
Stereo 0.0015% @ +4 Gain setting
Aux Input 0.0010% @ MAX Gain


EQUALISATION
MONO CHANNELS Freauency Gain
Hi 12kHz +/-15dB
Mid 2.5kHz +/-15dB
Lo 60Hz +/-15dB
Stereo CHANNELS
Hi 12kHz +/-15dB
Mid 2.5kHz +/-15dB
Lo 45dB +/-15dB


DYNAMIC RANGE
2Mic Chennels @ 30dB Gain 109dB


NOISE Bus Noise S/N Ratio
1 Mic Channels @ 30dB Gain,EQ flat -85dB -89dB
ALL Mic channels -81dB -85dB


CUT OFF @1kHz
Channel fader (mic) -73dB ref 0dB mark
L/R fader -80dB


MAXIMUM INPUT LEVEL At Max Gain At Min Gain
Mic -38dBu +8dBu
Line -10dBu +27dBu
Stereo Line +10dBu +22dBu
Aux Input +1785dBu n/a


INPUT IMPEDANCE
Mic 2k ohms Balanced 1k ohms UnBalanced
Line 20k ohms Balanced 10k ohms UnBalanced
Stereo 10k ohms Balanced 10k ohms UnBalanced
Aux Input 10k ohms Balanced 10k ohms UnBalanced


OUTPUT LEVELS Nominal Maximum Impedance
Mono send/Retum +4dBu +20.5dBu <10 ohms
Aux Sends 1-2 +4dBu +23dBu <10 ohms
Left/Right Output +4dBu +28dBu 75 ohms
Control Room Output   +23dBu 600 ohms
Phones   +23dBu 33 ohms


DIMENSIONS & WEIGHTS
WIDTH mm(ins) HEIGHT mm(ins) DEPTH mm(ins) WEIGHT (NET)kg(Ib) WEIGHT (GROSS)kg(Ib)
233mm(9.2") 85mm(3.3") 327mm(12.9") 2.5kg(5.5Ib) 3.8kg(8.3Ib)


POWER SUPPLY
Extemal AC adaptor-12 watts maximum-50/60Hz
Weight-0.7kg(1.5Ib)
