CM-9060 Mobile Accessory Screen Protector Laser Cutting Machine
Standard Features:
1. CO2 Sealed glass laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.It can completely work off-line and do not take any computer resources
3. Has the function of re-carving after break point and power failure.
4. Transmit files directly in Coreldraw, AutoCAD,etc.
5. Adopt Hiwin linear square rails, more precision.

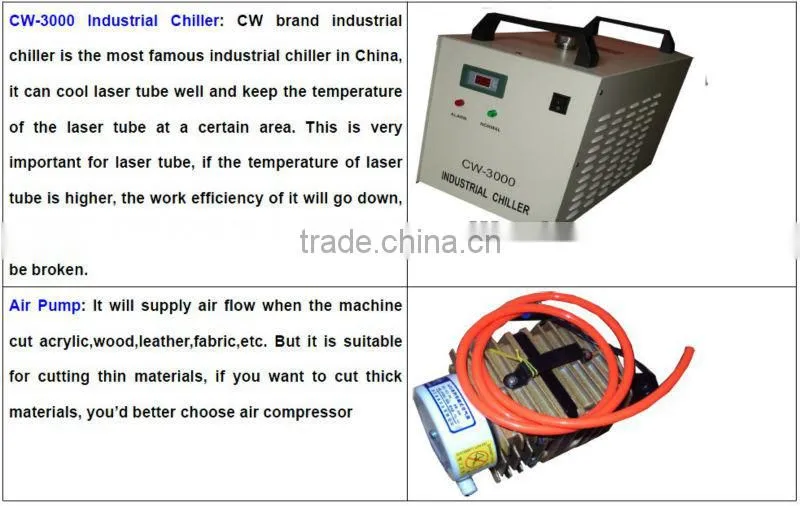

6.Water chiller cooling system, can cool the laser tube well.
7. Has the function of forecasting process time.

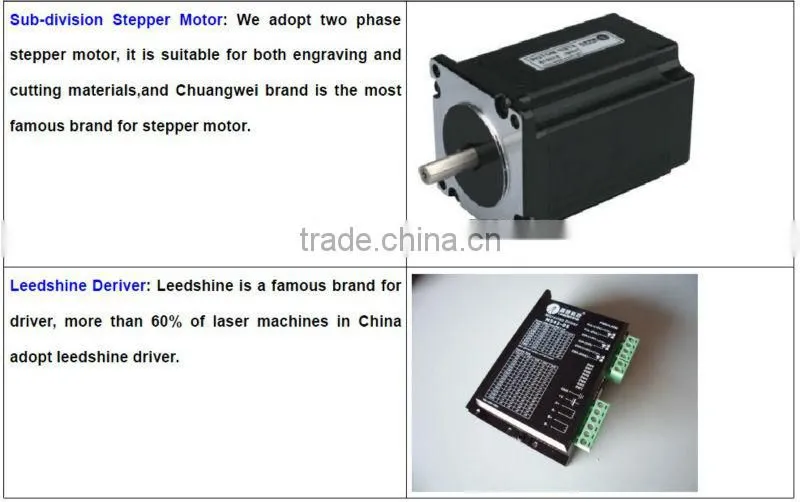

8. Big power three phase stepper motors
Applicable Industries:Model Industry(construction models, aviation and navigation models and wooden toys), advertising, decoration, art crafts, and electric appliances, etc.
Applicable Materials:Non-metal materials such as acrylic, wood planks(light planks), bamboo ware. Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease,ABS boards, etc.
Model |
CM-9060 |
Laser Power |
60W |
Laser Type |
CO2 sealed, glass laser tube, water cooling |
Work Area |
900 X 600 mm |
Cooling Type |
Water-cooled and Protection System |
Engraving Scanning Speed |
0-60000 mm/min |
Cutting Speed |
0-1000mm/min |
Laser Output Control |
1-100% Software Setting |
Smallest Character Engraving |
English: 1.0X1.0 mm |
Highest Scanning Precision |
2500DPI |
Power Supply |
AC 110-220V±10%, 50-60Hz |
Operating Temperature |
0°-45°C |
Operating Humidity |
5%-95% |
Locating Precision |
≤±0.01mm |
Supported File Format |
DST,PLT,BMP,DXF,AI |
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All Type of AUTOCAD Software in cloth |
Driving System |
Stepper Electrical Motor |
Package Dimension |
1400X1100X1200 mm |
Net Weight |
300 KGS |
Gross Weight |
350 KGS |
Optional Spare Parts |
Up-down Worktable, Rotary System, Honeycomb Worktable |
Removable Spare Parts |
Laser Tube and Lens |
