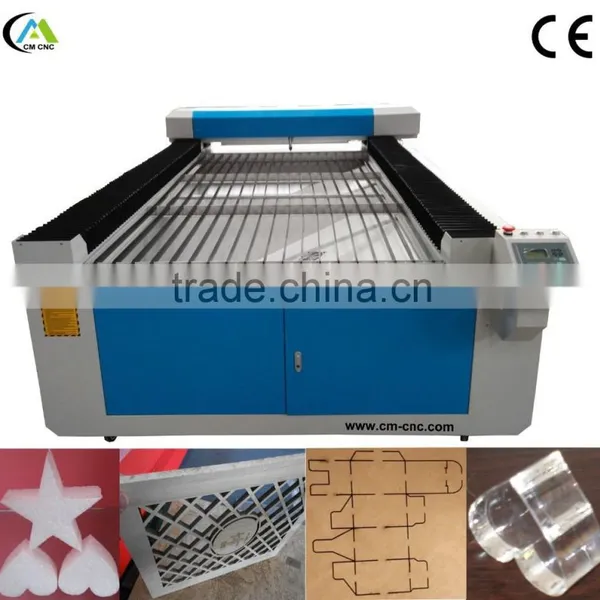

CM-1325 Hot Sale Low Cost Laser Cutting Machine Metal
Standard Features:
1. CO2 Sealed glass laser tube.
2. Leetrol USB controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.It can completely work off-line and do not take any computer resources
3. Has the function of re-carving after break point and power failure.
4. Transmit files directly in Coreldraw, AutoCAD,etc.
5.This machine is competiable with Windows XP,Windosws 7 and Windos 8 system
6. Adopt Hiwin linear square rails, more precision.
7.Water chiller cooling system, can cool the laser tube well.
8. Has the function of forecasting process time.
9.Big power three phase stepper motors
Applicable Industries:Model Industry(construction models, aviation and navigation models and wooden toys), advertising, decoration, art crafts, and electric appliances, etc.
Applicable Materials:Non-metal materials such as acrylic, wood planks(light planks), bamboo ware. Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease,ABS boards, etc.
Model |
CM-1325 |
Laser Power |
150W |
Laser Type |
CO2 sealed, glass laser tube, water cooling |
Work Area |
1300 X 2500 mm |
Cooling Type |
Water-cooled and Protection System |
Engraving Scanning Speed |
0-60000 mm/min |
Cutting Speed |
0-1000mm/min |
Laser Output Control |
1-100% Software Setting |
Smallest Character Engraving |
English: 1.0X1.0 mm |
Highest Scanning Precision |
2500DPI |
Power Supply |
AC 110-220V±10%, 50-60Hz |
Operating Temperature |
0°-45°C |
Operating Humidity |
5%-95% |
Locating Precision |
≤±0.01mm |
Supported File Format |
DST,PLT,BMP,DXF,AI |
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All Type of AUTOCAD Software in cloth |
Driving System |
Stepper Electrical Motor |
Package Dimension |
3300X2200X1500 mm |
Net Weight |
1200 KGS |
Gross Weight |
1300 KGS |
Optional Spare Parts |
Up-down Worktable, Rotary System, Honeycomb Worktable |
Removable Spare Parts |
Laser Tube and Lens |
Samples
Package:
