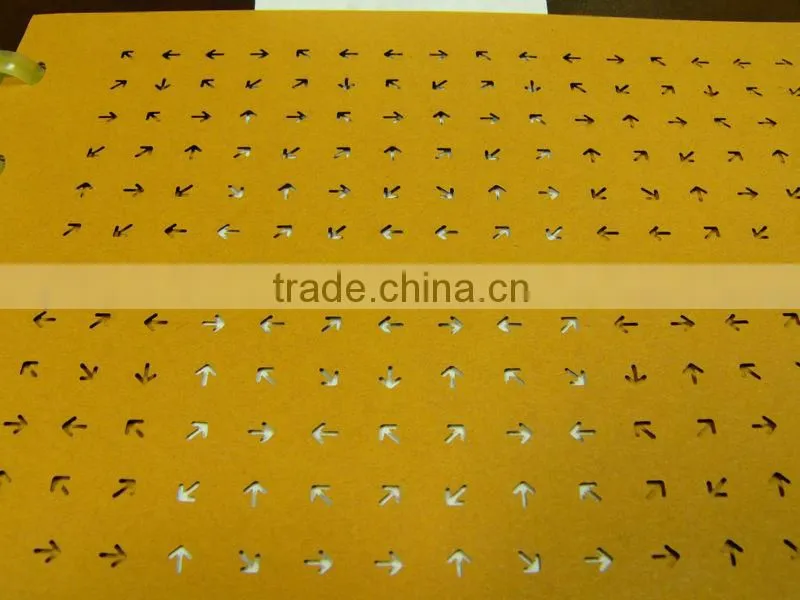

CM-1610 Auto Feeding Leather CNC Laser Cutting Machine
Standard Features:
1. Two pieces CO2 Sealed glass laser tube.

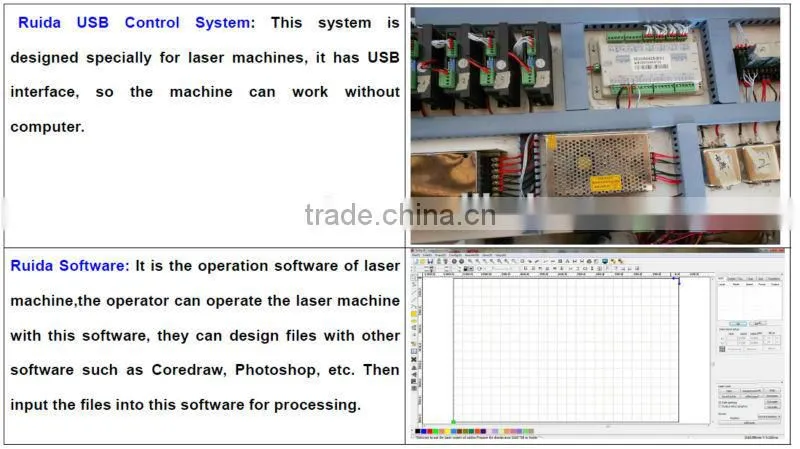

2. Ruida USB controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc. It can completely work off-line and do not take any computer resources
3. Has the function of re-carving after break point and power failure.
4.Fabric Auto feeding system,
5. Transmit files directly in Coreldraw, AutoCAD,etc.

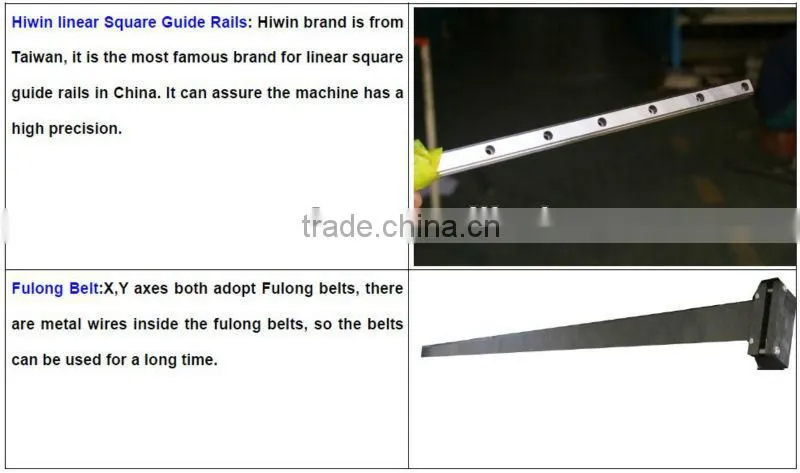

6. Adopt Hiwin linear square rails, more precision.
7.CW-5200 Water chiller cooling system, can cool the laser tube well.
8. Has the function of forecasting process time.

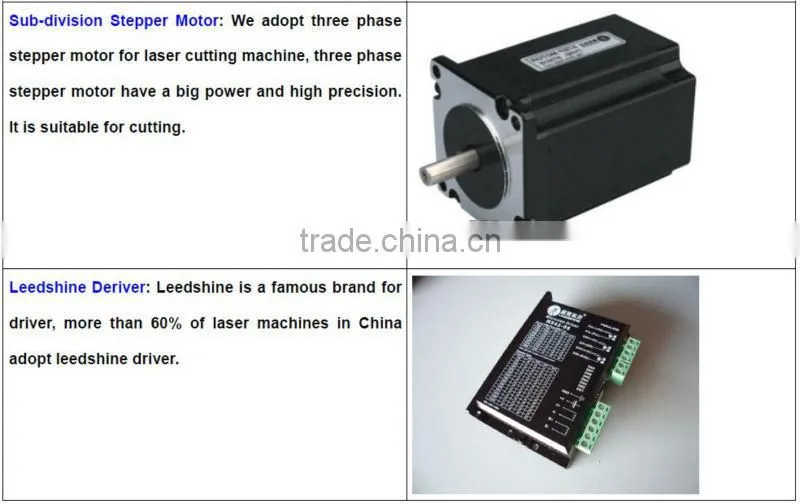

9. Big power three phase stepper motors
Applicable Industries: Textil industrial, cloth industry, etc.

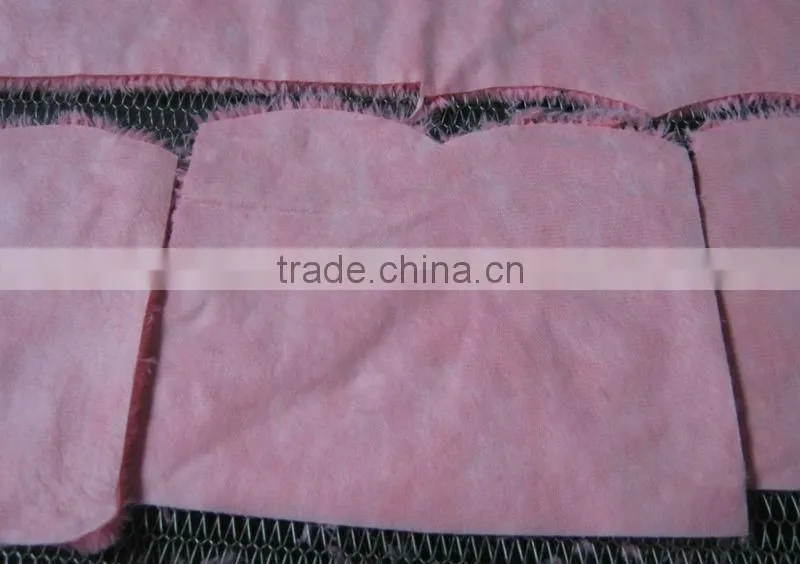

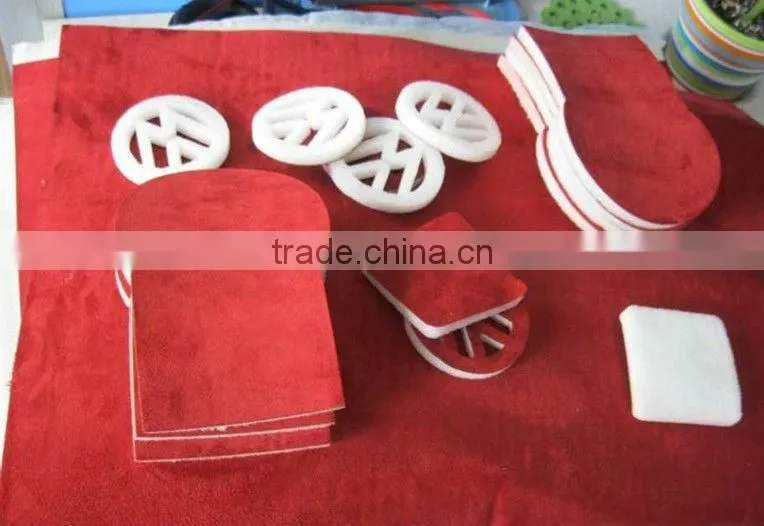

Applicable Materials: Textil,faric,leather,cloth,paper, rubber,etc.
Model |
CM-1610 |
Laser Power |
80WX2 |
Laser Type |
CO2 sealed, glass laser tube, water cooling |
Work Area |
1600 X 1000 mm |
Cooling Type |
Water-cooled and Protection System |
Engraving Scanning Speed |
0-60000 mm/min |
Cutting Speed |
0-1000mm/min |
Laser Output Control |
1-100% Software Setting |
Smallest Character Engraving |
English: 1.0X1.0 mm |
Highest Scanning Precision |
2500DPI |
Power Supply |
AC 110-220V±10%, 50-60Hz |
Operating Temperature |
0°-45°C |
Operating Humidity |
5%-95% |
Locating Precision |
≤±0.01mm |
Supported File Format |
DST,PLT,BMP,DXF,AI |
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All Type of AUTOCAD Software in cloth |
Driving System |
Stepper Electrical Motor |
Package Dimension |
2260X1430X1500 mm |
Net Weight |
500 KGS |
Gross Weight |
550 KGS |
Feeding System |
Automatic |
Removable Spare Parts |
Laser Tube and Lens |
