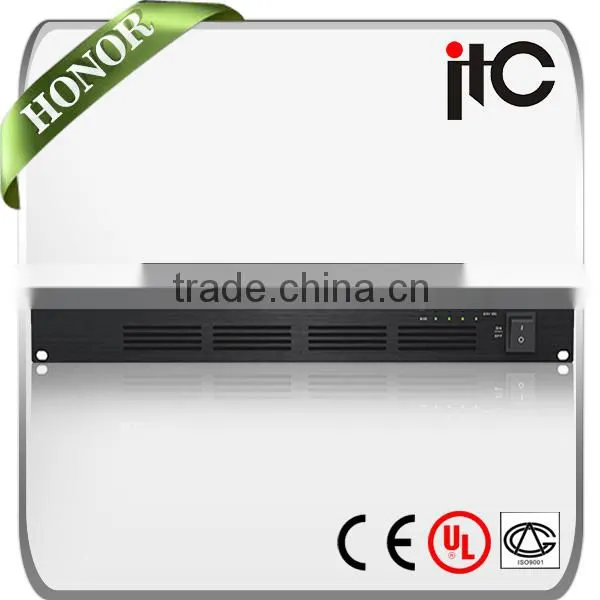

ITC T-4D120C Series New Arrival CobraNet 4 Channel High Efficiency Class-d Amplifier
ITC T-4D120C Series New Arrival CobraNet 4 Channel High Efficiency Class-d Amplifier
The amplifier adopts high class-d amplifier circuit, and it is built in high efficiency power switch which enhances the efficiency up to 85%. The product uses reasonable dissipation layout, which makes the amplifier can keep less than 55°C even at severe working conditions, thus largely expanding its life span.
The class-d amplifier is designed with rack mount in 1.5U height and 19 inch. The output power of this series amplifiers are 120W, 240W, 350W and 500W. The rear panel provides with 100V output terminal wiring speaker, a phoenix interface for remote control and monitoring equipment working condition. In addition, 1 CobraNet interface is there for remote transmission. Extensive protection includes high temp, overload and short-circuit.
ITC T-4D120C Series New Arrival CobraNet 4 Channel High Efficiency Class-d Amplifier
* Built-in powered band pass signal filter,Effectively filter out useless audio signal.
* 4 channel balanced line inputs,4-channel 4 *120W/240W/350W/500W power output;
* 4 channel separate volume control
* 4 channel separate status indicators include signal, peak, protection and Led power supply
* With power amplifier output normal condition monitoring, power amplifier standby control and power amplifier standby cascade port.
* CobraNet connection for remote audio transmission;
* Power amplifier matches with DC 24V power supply terminal,and has the voltage protection within 21.6~26.5Vdc, which avoids long-term supply for battery failure or damage of high voltage equipment.
* Speaker Output: 100V constant voltage
* With the electric isolation of the equipments, and signal input and power amplifier output is also isolated in electric, matching with 3C,UL,IEC60065 certificates;
* Extensive high temp, overload and short-circuit protection.
ITC T-4D120C Series New Arrival CobraNet 4 Channel High Efficiency Class-d Amplifier
Model |
T-4D120C |
T-4D240C |
T-4D350C |
T-4D500C |
Rated Power Output |
4x120W |
4x240W |
4x350W |
4x500W |
Speaker Output |
100V |
|||
Input Sensitivity & Independence |
±385mV/20KΩ, H5.08balanced terminals input |
|||
Overload Electromotive Force |
>11dB, H5.08 balanced terminals input |
|||
Frequency Response |
80Hz~18KHz(+1dB, -3 dB) |
|||
S/N Ratio |
≥85dB |
|||
THD |
≤0.5% at 1KHz, 1/3 output power |
|||
Controls |
Volume control and power switch control on the panel; remote standby control and remote amplifier state reading(Phoenix connector on the rear panel);remote audio transmission(CobraNet connector on the rear panel) |
|||
Indicators |
Signal, peak, protection and power supply indicators |
|||
Protection |
High temp,loudspeaker DC output,overload and short-circuit |
|||
Cooling |
Forced cooling(≥50°Chalf speed control, ≥70°C full speed control) |
|||
Max Power Consumption |
600W |
1200W |
1750W |
2250W |
Power Supply |
~230V 50Hz(AC110V 60Hz can be set up) DC24V(applied for 24V standby power supply) |
|||
Dimensions |
484x440x66mm |
|||
Weight |
9.5Kg |
9.8Kg |
10 Kg |
10.5 Kg |
