Home > Products > PA Amplifiers > ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
- 1000 Unit / Units per Month
- Guangzhou shenzhen & Honhkong
Product Details
Brand Name: | ITC | Model Number: | T-4D120/T-4D240/T-4D350/T-4D500 | Type: | Professional Amplifier |
Channels: | 4 | Place of Origin: | Guangdong, China |
Product Description
ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
It’s to adopt amplifier circuit in Class D and it’s built in switching power, which make its efficiency up to 85%. Rational cooling system make its internal temperature be under 55 degree in bad environment so that its working life is extended.

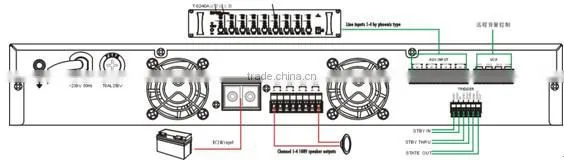

It’s in standard rack mount design of 1.5U. Optional rated power includes 120W, 240W, 350W and 500W. On the rear panel, it’s with 4 speaker output at 100V and 1 phoenix connector for remote control and status monitor. What’s more, it’s with complete protection for short, overload and over-heat.
ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
- Built in active band pass filter to cancel useless signal.
- With 4 channel balanced line intput; Rated power output is 4*120W/240W/350W/500W.
- With function of individual volume control.
- With indicators to display signal, peak, protection status and power status.
- With monitor for output; Control for amplifier standby; With port for parallel connection of amplifier.
- With port for power at DC 24V and the adaptation range is from 21.6V to 26.5V, which is to avoid device damage because of unstable DC power.
- Output is at constant voltage of 100V.
- Signal input is isolated with amplified signal output, which meets the standard of 3C, UL, IEC60065.
- Complete circuit protection for short, overload and over-heat.
ITC T-4D Series New Arrival 4 Channel Class D Digital Amplifier
Model | T-4D120 | T-4D240 | T-4D350, | T-4D500 |
Rated Power Output | 4x120W | 4x240W | 4x350W | 4x500W |
Speaker Output | 100V | |||
Input Sensitivity & Impedance | ±385mV/20KΩ,balanced H5.08 European style input | |||
Electric Potential of Overload | >11dB, balanced H5.08 European input | |||
Frequency Response | 80Hz~18KHz(+1dB, -3 dB) | |||
S/N Ratio | ≥85dB | |||
THD | ≤0.5% at 1KHz, 1/3 rated power | |||
Control | Volume control and power switch control on the panel; Remote standby control and remote amplifier status monitor (Phoenix connector on the rear panel); Remote audio transmission (CobraNet connector on the rear panel) | |||
Indicator | signal, peak, protection, power | |||
Protection | Over-heat, overload and short | |||
Cooling | Auto. cooling(>50 degree, medium speed; >70 degree, full speed.) | |||
Power Consumption | 600W | 1200W | 1750W | 2250W |
Power Supply | ~110V/60Hz o r ~230V/50Hz DC24V( 24V DC battery standby) | |||
Dimension | 484 x 440 x 66mm | |||
Weight | 9.5Kg | 9.8Kg | 10 Kg | 10.5Kg |
Quality?
Our products're applied to important event like Olympic Game Peking 2008, Asian Game Guangzhou 2010, etc.
Trustworthy?
We're not only popular supplier in China but has good reputation in the world.
In time?
We have the ability and we'll try our best to fulfill your demand.
Factory?
Welcome to NO.1 Building B Block Zhongcun Street Panyu Guangzhou China.
