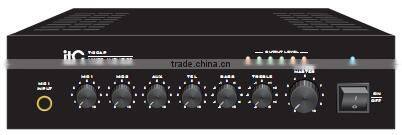

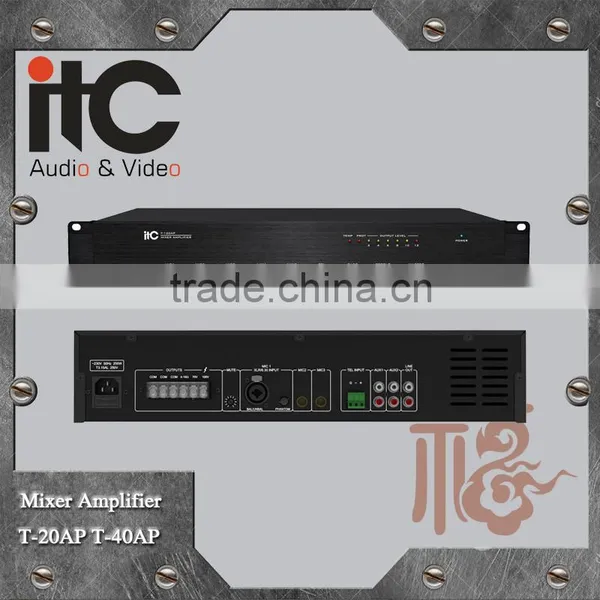

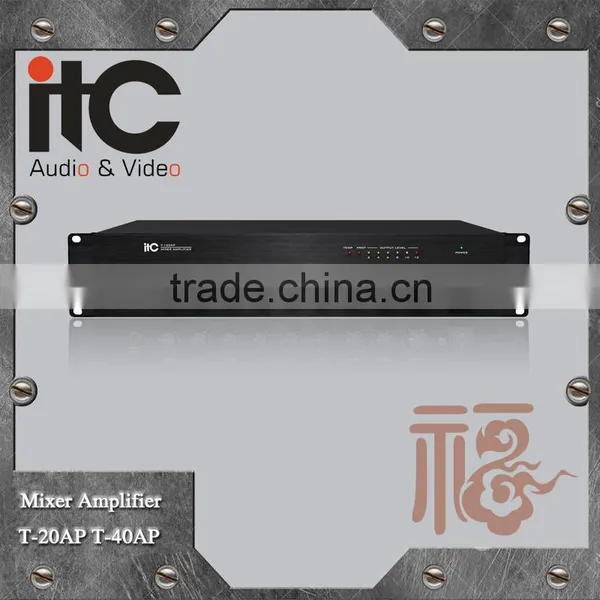

ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
It’s mixer amplifier with preamp. The output power is from 20W to 120W which meet the demand of medium scale PA system. It’s with 2 modes of power output in order to be connected with constant voltage speaker and constant impedance speaker. They’re constant voltage output at 100V or 70V and constant impedance output at 4 to 16 ohm with 6 level indicators. Complete protection circuit is for over-heat, overload, short, etc. What’s more, it’s with excellent fan which is high efficiency and quiet when operating.
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
1) Rated Power: 20W, 40W
2) With one Mic 2 input (5mV 1 Kohm) and 1 AUX input (350mV 10 Kohm)
3) With 1 balanced/unbalanced Mic 1 input (2.5/5mV 1/2 Kohm)
4) 1 TEL input (Sensitivity is 350mV 2 Kohm)
5) With internal tone control (Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz)
6) Priority from high to low: TEL>Mic 1>Mic 2 & AUX
7) With complete protection circuit for short, overload, over-heat, etc.
8) 2 modes of power output: constant voltage output at 100V or 70V; constant impedance output at 4 to 16 ohm
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
Model |
T-20AP |
T-40AP |
Rated Power |
20W |
40W |
Max. Rated Power |
30W |
60W |
Speaker Output |
4 to 16 ohm, 70V/100V |
|
Sensitivity/Impedance of Input |
350mV/50Kohm |
|
S/N Ratio |
Less than 90dB |
|
Frequency Response |
50Hz to 18 KHz |
|
Input of Mic 1/2 |
Mic 1/2 input at 5mV, Front output at 1V |
|
Sensitivity/Impedance of Input |
5mV/600 ohm |
|
S/N Ratio |
Less than 62dB |
|
Tone Control (Bass: 100Hz, Treble: 10KHz) |
±12dB |
|
Voltage of Phantom Power |
DC +48V |
|
AUX 1 Input | ||
Sensitivity/Impedance of Input |
350mV/15Kohm |
|
S/N Ratio |
Less than 76dB |
|
|
Frequency Response <-3dB |
50Hz to 18KHz |
|
Tone Control (Bass: 100Hz, Treble: 10KHz) |
±12dB |
|
Front Output |
1V/600 ohm |
|
T.H.D. |
1V/600 ohm |
|
Line Output |
10dB/3Kohm |
|
Power Supply |
AC 110V of 60Hz or AC 230V of 50Hz or DC 24V |
|
Power Consumption |
45W |
75W |
Dimension |
276*245*70mm |
|
NG |
4Kg |
4.5Kg |
