Home > Products > PA Amplifiers > ITC T-4S120B Series Practical 60W 120W 240W 4 Channel Sound Power Amplifier for Sale
ITC T-4S120B Series Practical 60W 120W 240W 4 Channel Sound Power Amplifier for Sale
- 1000 Unit / Units per Month
- Guangzhou Shenzhen or HK
Product Details
Brand Name: | ITC | Model Number: | T-4S60B/T-4S120B/T-4S240B | Type: | Professional Amplifier |
Channels: | 4 | Place of Origin: | Guangdong, China |
Product Description
ITC T-4S120B Series Practical 60W 120W 240W 4 Channel Sound Power Amplifier for Sale
ITC T-4S120B Series Practical 60W 120W 240W 4 Channel Sound Power Amplifier for Sale
ITC T-4S120B Series Practical 60W 120W 240W 4 Channel Sound Power Amplifier for Sale
ITC T-4S120B Series Practical 60W 120W 240W 4 Channel Sound Power Amplifier for Sale

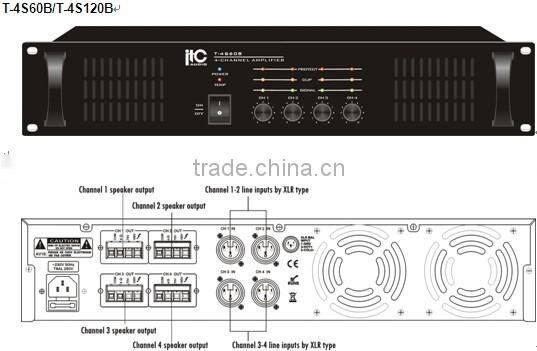

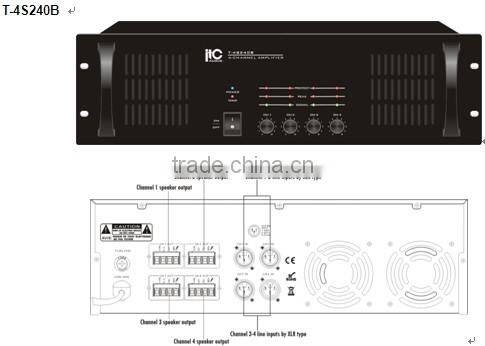

4 channel power mixer amplifier is designed for commercial and industrial public address application. 4 individual power amplifier in a single chassis and rated power taps from 60W, 120W and 240W per channel which provides a wide selection to meet different size sound-reinforce. The amplifier is design for rack mount type and T-4S60B/T-4S120B are in 2U while T-4S240B is in 3U. Balanced line input is in XLR, at 70V, 100V of constant voltage and in 4-16ohm of constant impedance output for various speaker matching. Master volume control for all channel are included. Complete protection function for over heat, over load, clip & short circuit. Indications for power, signal, peak and protection.
ITC T-4S120B Series Practical 60W 120W 240W 4 Channel Sound Power Amplifier for Sale
* 4 individual power amplifier into one chassis
* Rack mount amps in 2U(T-4S60B/T-4S120B) and 3U(T-4S240B)
* Rated power from 60W, 120W to 240W per channel
* 70V, 100V and 4-16ohm speaker output in phoenix
* Isolated transformer for human safety operation
* Balanced XLR line input for each channel
* Reliable protection of over heat, over load, clip & short circuit
* Indication for power, signal, peak, and protection
* Excellent device of radiator cooling fanner that ensures working effectively
ITC T-4S120B Series Practical 60W 120W 240W 4 Channel Sound Power Amplifier for Sale
Model | T-4S60B | T-4S120B | T-4S240B |
Rated Power Output | 4x60W | 4x120W | 4x240W |
Speaker Output | 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | ±385mV/10KΩ, Balanced XLR connector | ||
Overload Electromotive Force | >15dB | ||
Frequency Response | 50Hz~16KHz(+1dB, -3dB) | ||
S/N | >90dB | ||
THD | Less than 0.1% at 1KHz, 1/3 rated power | ||
Crosstalk | <50dB | ||
Cooling | Fan automatically start up when temp reaches 55°C | ||
Protection | Over heat, over load, clip & short circuit | ||
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | ||
Power Consumption | 400W | 720W | 1500W |
Weight | 16Kg | 22Kg | 30Kg |
Dimension | 484x448x88mm | 484x449x132mm | |
Finish | Panel: aluminum plate Case: steel plate |
