ITC T-221AP 2 Channel 20W Small Style Class D Wall Mounted Speaker Amplifier Quality Choice

US$ 50 - 100 MOQ: 10 Units

Key Specifications

Brand Name:

ITC

Model Number:

T-221AP

Type:

Professional Amplifier

Guangzhou ITC Electronic Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ITC

Model Number T-221AP

Type Professional Amplifier

Channels 2 (2.0)

Place of Origin Guangdong, China

ITC T-221AP 2 Channel 20W Small Style Class D Wall Mounted Speaker Amplifier

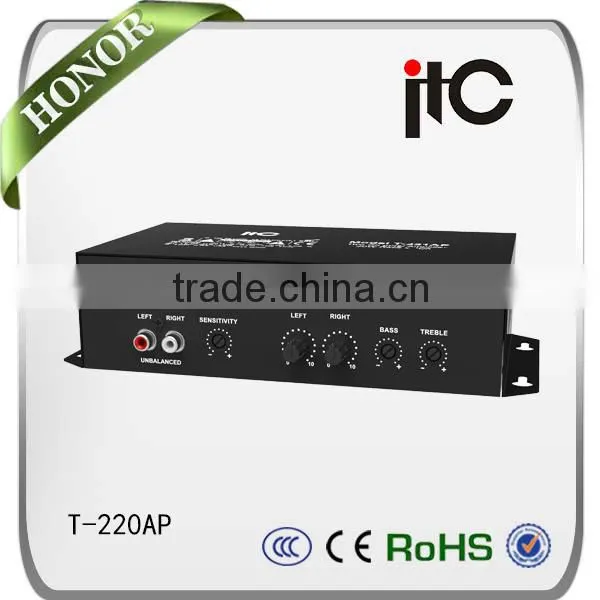

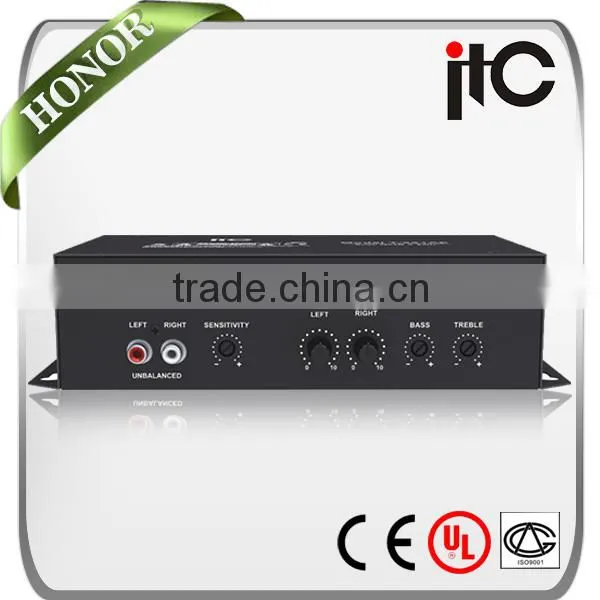

Appearance

ITC T-221AP 2 Channel 20W Small Style Class D Wall Mounted Speaker Amplifier

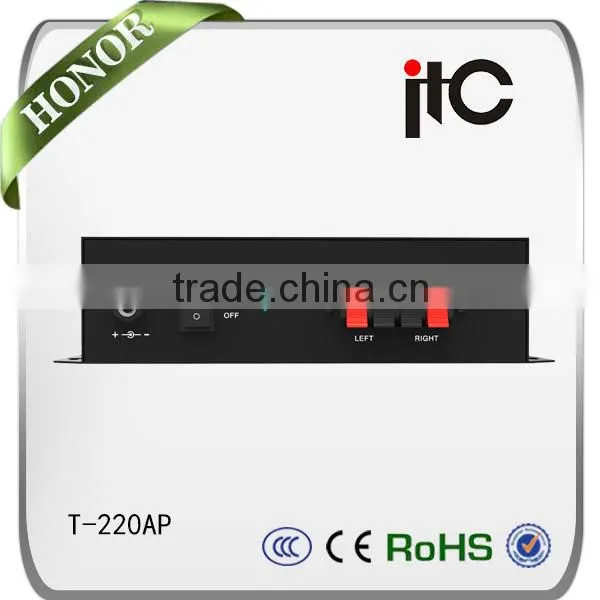

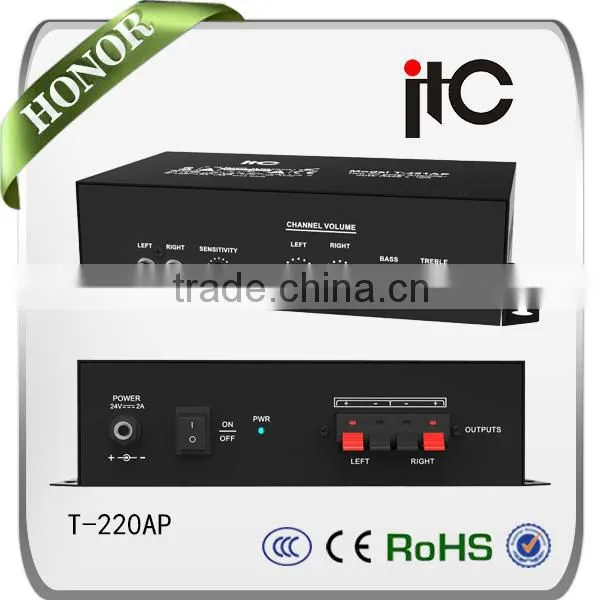

Panel

ITC T-221AP 2 Channel 20W Small Style Class D Wall Mounted Speaker Amplifier

Feature

ITC T-221AP 2 Channel 20W Small Style Class D Wall Mounted Speaker Amplifier

It’s mini Class D amplifier.
1 stereo output is 20W at 4 ohm.
It’s in design of rack mount.
The efficiency is up to 85% and the thermogenesis is low, which meeting the standard of environment protection.
It’s with audio adjustment, including Left/Right volume control, Treble/Bass control and sensitivity control.
Built in pressure limiter to cancel noise, which makes it able to connect laptop and cell phone.
With switching power, when there’s audio signal, it’ll be turned on. Vice versa.
Complete circuit protection for short, overload, over-heat, etc.
Power adapter for DC 24V is included.

Specification

ITC T-221AP 2 Channel 20W Small Style Class D Wall Mounted Speaker Amplifier

Model	T-221AP
Rated Power Output	2x20W (THD10% @ 4 ohm 1KHz)
Output Impedance	4 ohm or 8 ohm
Line Input Sensitivity	200mV-2V/10KΩ
Frequency Response	50Hz~18KHz(±2dB)
S/N Ratio	≤ 85dB
THD	≤ 0.5% at 1KHz, 1/3 rated power
Efficiency	85%
Control	Power, input sensitivity, gain control, bass & treble
Indicator	Power
Protection	Short, overload, over-heat, etc
Power Supply	Power adapter for DC 24V is included
Dimension	230x115x56.5mm
Finish	Panel: stainless steel, black Case: stainless steel, black
