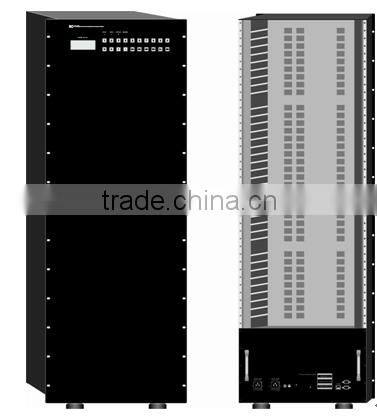

ITC TS-9144H Supporting Multi Video Format Seamlessly Mixed Insertion 144*144 HD Video Matrix System
ITC TS-9144H Supporting Multi Video Format Seamlessly Mixed Insertion 144*144 HD Video Matrix System
ITC TS-9144H Supporting Multi Video Format Seamlessly Mixed Insertion 144*144 HD Video Matrix System
Matrix switcher is a matrix signal switcher with flexible configuration. It adopts high-performance hardware design, perfectly supports all kinds of high-definition digital/analog signal switch processing, and supports bi-directional RS-232 and bi-directional IR signal switching function. Providing a one-stop solution for a variety of video and control
signal distribution switching processes, it can be widely used in radio and television engineering, multimedia conference room, large screen display engineering, television education, command and control centers, etc.
ITC TS-9144H Supporting Multi Video Format Seamlessly Mixed Insertion 144*144 HD Video Matrix System
* Input and output: Support up to 144 input and 144 output channels.
* Plug-in structure: input signal types: VIDEO,S-Video,VGA,YpbPr,DVI, HDMI,SDI,Fiber, HDBaseT;
output signal types: HDMI,DVI,VGA ,YpbPr,VIDEO,HDBaseT,Fiber,SDI. Card design is easy for extension and change.
* Scalable seamless switching function.
* Support inline bidirectional IR and RS-232 control signal switching function (in conjunction with HDBaseT or FB board and corresponding transmission device).
* Support HDCP management, can encrypt and decrypt HDCP, ensure that the signal source displaces properly.
* Support EDID management, can store 8 groups of EDID data, allow reading the output device EDID or stored and apply it to any input cards, can send EDID codes to EDID storage area via the serial port, can read the current output EDID codes via the serial port.
* Have power-off memory function and scene memory function: have power-off site protection; can save and call 10 switching states.
* Support forward high-speed channel and embedded control signal separation switch modes.
* Support Full HD: HDPC: HDPC:1920X1200P@60_24bit, HDTV:1920X1080P@60_36bit.
* Luxury crystal buttons with luminous indicator function, the current switch information can be obtained directly from the LCD screen, easy to operate.
* Support 3D, HDMI 1.4, HDCP1.4, and DVI 1.0 protocol. Support high color depth, and up to
3.25Gbps rate.
* Have 2-Channel RS-232 communication interface.
* Have 1-way network port, can control remotely via Ethernet.
* Built-in universal power supply.
ITC TS-9144H Supporting Multi Video Format Seamlessly Mixed Insertion 144*144 HD Video Matrix System
Model |
TS-9144H |
|
Interface |
|
|
Input Card Quantity |
18 |
|
Output Card Quantity |
18 |
|
Input Route |
144 |
|
Output Route |
144 |
|
Support Input Card Type |
TS-9208HR, TS-9208DR, TS-9208CR, TS-9208TR, |
|
|
TS-9208GR,TS-9208SR, |
|
Support Input Card Type |
TS-9208HC, TS-9208DC, TS-9208CC, TS-9208TC, |
|
|
TS-9208GC, TS-9208SC, |
|
Interface Width |
3.25Gbps, full digital |
|
Serial Port Control |
|
|
Quantity |
2 |
|
Serial Control Interface |
RS-232, D type interface 9-pin D type interface |
|
baud Reate and Protocol |
Baud rate: 9600, data bit: 8-bit, |
|
|
Stop bit: 1, white parity bit |
|
Serial Port Control Structure |
2 = TX, 3 = RX, 5 = GND |
|
Ethernet Control |
|
|
Ethernet Control Interface |
RJ-45 female interface |
|
Ethernet Control Protocol |
TCP/IP |
|
Ethernet Control Rate |
Adaptive 10M/100M, full duplex or half duplex |
|
Specification |
|
|
Power Supply |
~110V/60Hz or ~230V/50Hz, international |
|
|
adaptive power supply |
|
Max Power Consumption |
1550W |
|
Weight |
62Kg |
|
Storage and Usage Temperature |
-20℃~+70℃ |
|
Storage and Usage Humidity |
10%~90% |
|
Dimension |
30U |
|
MTBF |
30,000 hours |
|
Size |
484 x 504x 1332mm |
|
