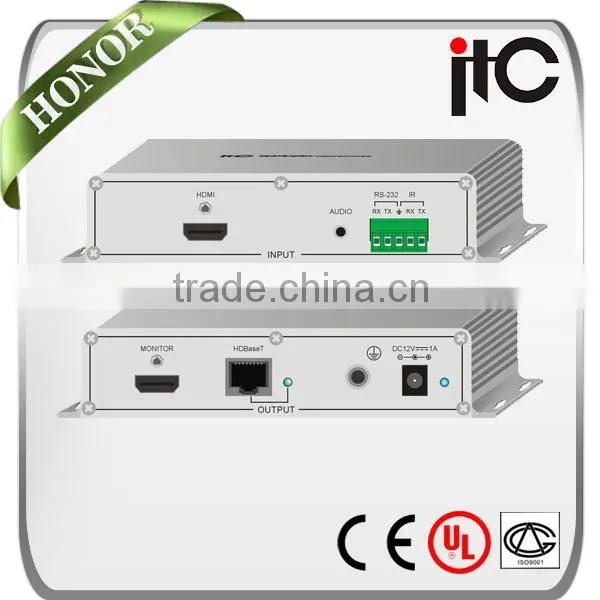

ITC TS-9506HT Hot Sale Unshielded Twisted Pair HD HDMI Transmitter
ITC TS-9506HT Hot Sale Unshielded Twisted Pair HD HDMI Transmitter
ITC TS-9506HT Hot Sale Unshielded Twisted Pair HD HDMI Transmitter
TS-9506HT is a perfect transmission transmitter HDMI 1.4a signal source, via a single CAT5e/6 unshielded twisted pair transmission high-definition video signal, transmission distance up to 100 meters, supporting the highest resolution 1900 x 1200 @ 60Hz, while transmitting bidirectional RS-232, two-way infrared signals, providing long-distance transmission of video source devices and display devices, and two-way control to provide a low-cost solution.
ITC TS-9506HT Hot Sale Unshielded Twisted Pair HD HDMI Transmitter
* Support HDMI1.4a, compatible HDCP1.4, DVI1.0.
* Support for bi-directional IR, RS-232 transmission.
* Transmitter supports HDMI monitor output.
* Compatible with HDMI1.4 standard, HDCP1.4 agreement, DVI1.0 agreement.
* Support for video, audio, IR, RS-232 transmit simultaneously, CAT5e / 6 cable shield
maximum transmission distance of 100M.
ITC TS-9506HT Hot Sale Unshielded Twisted Pair HD HDMI Transmitter
Model |
TS-9506HT |
|
HDMI Video |
|
|
Interface |
HDMI-A connector |
|
Pixel bandwidth |
225MHz, full-digital |
|
Interface Bandwidth |
3.25Gbps,full-digital |
|
Max Supported resolution |
HDPC: 1920x1200P@ 60_24bit |
|
|
HDTV: 1920x1080P@60_36bit |
|
Signal Type |
HDMI 1.4 / T.M.D.S. full-digital signal |
|
Suggested maximum input range |
Less than 7 meters, under 1920x1080P@60Hz, (Recommend certification of special HDMI wire, such as Molex TM's wire) |
|
Signal Strength |
T.M.D.S. +/- 0.4Vpp |
|
Min/Max Level |
T.M.D.S. 2.9V/3.3V |
|
Audio Input |
HDMI Embedded digital audio |
|
Impedance |
50Ω |
|
Serial port control |
|
|
Serial port control interface |
RS-232 (3.5MM The headset seat) |
|
Baud rate |
110-115200bps |
|
Infrared Control |
|
|
Infrared control interface |
IR(3.5MM The headset seat) |
|
IR Frequency |
38KHz |
|
HDMI Monitor output port |
|
|
Interface |
HDMI-A Interface |
|
Supported protocols |
HDMI1.4a, HDCP1.4, EDID1.4 |
|
Pixel bandwidth |
225MHz , full-digital |
|
Interface Bandwidth |
3.25Gbps, full-digital |
|
Max Supported resolution |
HDPC: 1900x1200@60Hz |
|
|
HDTV: 1920x1080P@60Hz |
|
Signal Type |
HDMI 1.4/ T.M.D.S. full-digital |
|
Signal Strength |
T.M.D.S. +/- 0.4Vpp |
|
Min/Max Level |
T.M.D.S. 2.9V/3.3V |
|
Impedance |
50Ω |
|
Video cable maximum output range |
Less than 7 meters, under 1920x1080P@60Hz (Recommend certification of special HDMI wire, such as Molex TM's wire) |
|
HDBaseT Output Interface |
|
|
Interface |
High Speed RJ45 |
|
transmission distance |
Use CAT5e / 6 shielded wire up to 100 m |
|
specification |
|
|
Power Supply |
DC 12V/1.5A |
|
Max Power Consumption |
7.5W |
|
Dimensions (mm) |
162(L) X 195(W) X 35(H) |
|
