ITC TS-9506HR Best Sale CAT 5E or CAT 6HDMI Extender 60m
ITC TS-9506HR Best Sale CAT 5E or CAT 6HDMI Extender 60m
ITC TS-9506HR Best Sale CAT 5E or CAT 6HDMI Extender 60m

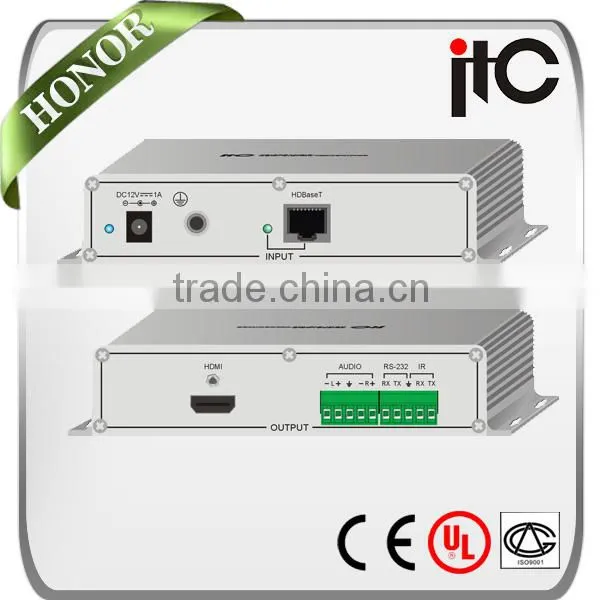

TS-9506HR is a perfect transmission receiver HDMI 1.4a signal source, via a single CAT5e / 6 unshielded twisted pair transmission high-definition video signal ,transmission distance is up to 100 meters, supporting the highest resolution 1900 x 1200 @ 60Hz, while transmitting bidirectional RS-232, two-way infrared signals, providing long-distance transmission of video source devices and display devices, two-way control to provide a low-cost solution.
ITC TS-9506HR Best Sale CAT 5E or CAT 6HDMI Extender 60m
* Support HDMI1.4a, compatible HDCP1.4, DVI1.0.
* Support for bi-directional IR, RS-232 transmission.
* Transmitter supports HDMI monitor output.
* Compatible with HDMI1.4 standard, HDCP1.4 agreement, DVI1.0 agreement.
* Support for video, audio, IR, RS-232 transmit simultaneously, CAT5e / 6 cable shield maximum transmission distance of 100M.
ITC TS-9506HR Best Sale CAT 5E or CAT 6HDMI Extender 60m
Model |
TS-9506HR |
HDMI Video |
|
Interface |
HDMI-A interface |
Pixel bandwidth |
225MHz, full digital |
Interface Bandwidth |
3.25Gbps,full digital |
Max Supported resolution |
HDPC: 1920x1200P@ 60_24bit |
|
HDTV: 1920x1080P@60_36bit |
Signal Type |
HDMI 1.4 / T.M.D.S. full digital signal |
Suggested maximum input range |
Less than 7 meters, under 1920x1080P@60Hz, (Recommend certification of special HDMI wire, such as Molex TM's wire) |
Signal Strength |
T.M.D.S. +/- 0.4Vpp |
Min/Max Level |
T.M.D.S. 2.9V/3.3V |
Audio Input |
HDMI Embedded digital audio |
Impedance |
50Ω |
Serial port control |
|
Serial port control interface |
RS-232 (3.5MM The headset seat) |
Baud rate |
110-115200bps |
Infrared Control |
|
Infrared control interface |
IR(3.5MM The headset seat) |
IR Frequency |
38KHz |
HDMI Monitor output port |
|
Interface |
HDMI-A interface |
Supported protocols |
HDMI1.3a, HDCP1.3, EDID1.4 |
Pixel bandwidth |
225MHz , full digital |
Interface Bandwidth |
3.25Gbps, full digital |
Max Supported resolution |
HDPC: 1900x1200@60Hz |
|
HDTV: 1920x1080P@60Hz |
Signal Type |
HDMI 1.4/ T.M.D.S. full digital signal |
Signal Strength |
T.M.D.S. +/- 0.4Vpp |
Min/Max Level |
T.M.D.S. 2.9V/3.3V |
Impedance |
50Ω |
Video cable maximum output range |
Less than 7 meters, under 1920x1080P@60Hz (Recommend certification of special HDMI wire, such as Molex TM's wire) |
HDBaseT Output Interface |
|
Interface |
High Speed RJ45 |
transmission distance |
Use CAT5e / 6 shielded wire up to 100 m |
specification |
|
Power Supply |
DC 12V/1.5A |
Max Power Consumption |
8.5W |
Dimensions (mm) |
162(L) X 195(W) X 35(H) |
