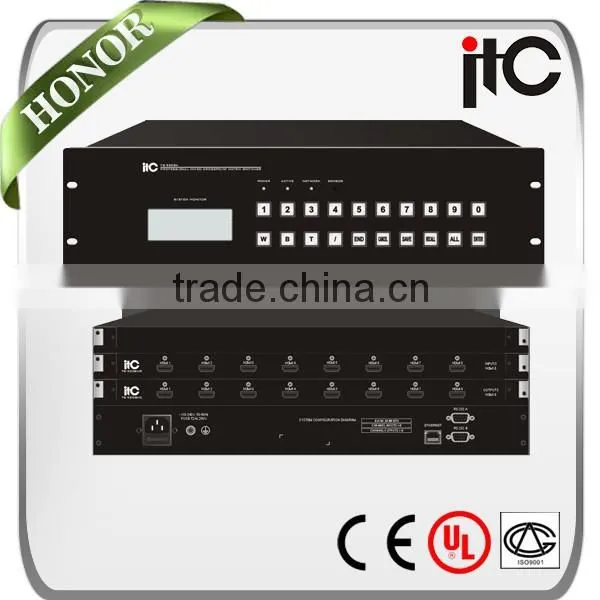

ITC TS-9208A 3.25Gbps Widely Used 8x8 HDMI Matrix Switch
ITC TS-9208A 3.25Gbps Widely Used 8x8 HDMI Matrix Switch
ITC TS-9208A 3.25Gbps Widely Used 8x8 HDMI Matrix Switch
It’s intelligent embedded type controlling HDMI audio video matrix switcher. Its transmission speed is up to 3.25Gbps and it support seamlessly and simultaneously switching of audio and video signal. It’s adaptable to status of uninterrupted duty. And it’s trouble free time is rather than 30,000 hours. It provides the whole video system with stable signal center. It could be widely applied to multi-screen system, multimedia conference, broadcasting system, visual command and control center, etc.
ITC TS-9208A 3.25Gbps Widely Used 8x8 HDMI Matrix Switch
l Support 8 channel output and input of HDMI audio and video.
l Insertion structure and support hot-plug.
l Support expandable and seamless switching HDMI output.
l Support HDCP management to ensure normal display of signal source.
l Support EDID management and it could store 8 groups of EDID data. And the EDID data could be applied to any input card.
l With off-line memory function.
l Support forward high speed channel and the separation switch mode of built-in control signal.
l Support HD: HDPC:1920*1200P@60_24bit; HDTV: 1920*1080P@60_36bit.
l With LCD screen to display the switch information.
l Support 3D, HDMI1.4, HDCP1.4 and DVI1.0. Support high dark and the speed is up to 3.25Gbps.
l With 2 RS-232.
l With 1 network port that means it could be remotely control via Ethernet.
l Built in international general power supply.
ITC TS-9208A 3.25Gbps Widely Used 8x8 HDMI Matrix Switch
Model |
TS-9208A |
Video | |
Protocol |
Support HDMI 1.4, HDCP 1.4, DVI 1.0 |
Gain |
0 dB |
Pixel Bandwidth |
225MHz, Full Digital |
Interface Bandwidth |
3.25Gbps, Full Digital |
Max. Definition |
HDPC: 1920*1200P@60_24bit |
HDTV: 1920*1080P@60_36bit | |
Normal-PC: 1600*1200P@60_24bit | |
3D Format: 1920*1080p@24_36bit | |
Bit Clock Jitter |
<0.15 Tbit |
Rise Time |
<0.3 Tbit(20%--80%) |
Falling Time |
<0.3 Tbit(20%--80%) |
Max. Transmission Delay |
5ns(±1ns) |
Switching Speed |
200ns (Max. Time) |
Signal Type |
HDMI-A Full Digital T.M.D.S Signal |
Video Input | |
Interface |
HDMI-A Female Port |
Signal Strength |
T.M.D.S +/- 0.4Vpp |
Min./Max. Level |
T.M.D.S 2.9V/3.3V |
EDID Input |
Erasable |
Impedance |
50 ohm |
Max. DC Bias Error |
15mV |
Max. Input Distance |
Less than 20m, 1920*1200@60 |
Video Output | |
Interface |
HDMI-A Female Port |
Min./Max. Level |
T.M.D.S 2.9V/3.3V |
Impedance |
50 ohm |
Max. Output Distance |
Less than 20m, 1920*1200@60 |
Serial Port Control | |
Num. |
2 |
Serial Control Port |
RS-232, 9 Pin Female D Port |
Baudrate and Protocol |
Baudrate:9600, data bits: 8 |
Stop bit: 1, No parity bit | |
Structure of Serial Control Port |
2=TX, 3=RX, 5=GND |
Ethernet Control Port |
RJ45 Female Port |
Ethernet Control Port Protocol |
TCP/IP |
Ethernet Control Speed |
Adaptive 10M/100M, Full Duplex or Half Duplex |
Power Supply |
AC 0 to 240V@50/60Hz, global self-adaptive power |
Max. Power Consumption |
107W |
Weight |
About 7.3Kg |
Storage or Operating Temp. |
-20℃ to +70℃ |
Storage or Operating Humidity |
10% to 90% |
Case Format |
3U |
Ave. Breakdown Interval Time |
30,000 hours |
Dimension(L x W x H) |
484*354*132mm |
