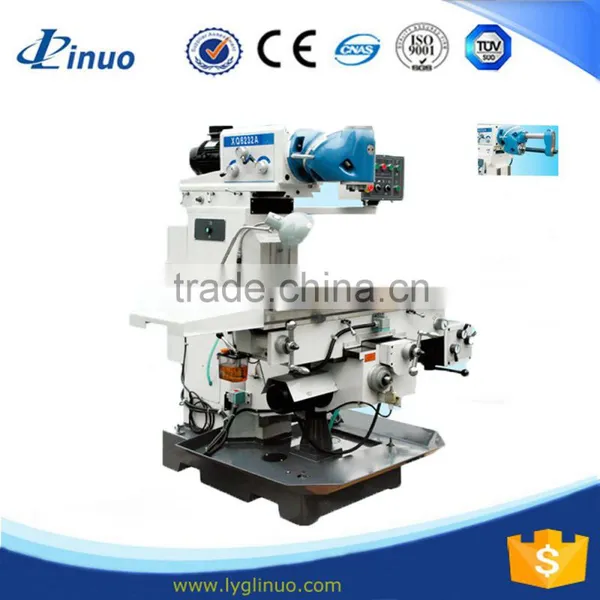

XQ6232A factory manufactured vertical milling machine
Product Description for XQ6232A factory manufactured vertical milling machine

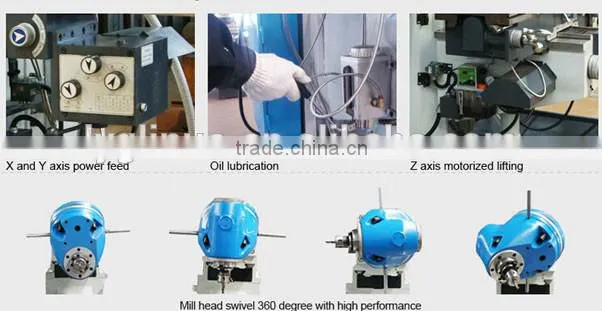

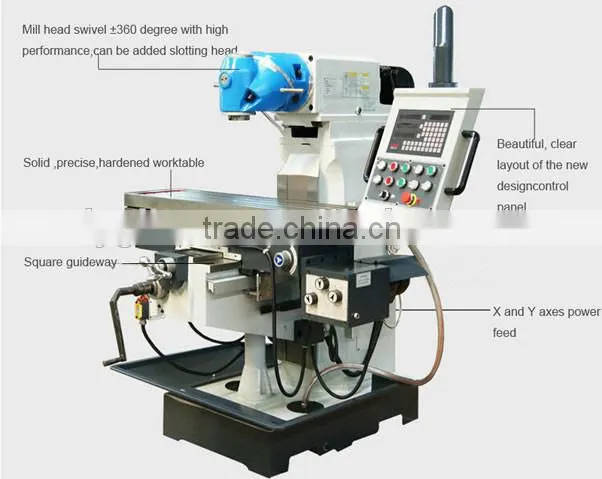

Features:
1 Universal milling head, machining
2 Three axis hardening treatment
3 Mechanical feeding device
4. Independent of the horizontal milling function
5. Automatic tools change universal milling machine
Specification |
XQ6232A |
Spindle taper |
724 ISO40 |
Distance from spindle to table (mm) |
110-490 |
Distance from spindle to column (mm) |
0-500 |
Range to spindle speed(r/min) |
35-1600 |
Swivel angle at swivel head |
360° |
Table size(mm) |
1250×320 |
|
Table travellongitudinal/cross/vetical mm |
600/320/380 |
Range of longitudinal.cross travel (mm/min) |
22-5558 rank810(rapid) |
Z-speed of table(mm/min) |
560 |
T-slot ( number width-distance)mm |
3/14/70 |
Main motor (kW) |
2.2 |
Motor for rapid device of table (X.Y) |
750 |
Motor for vertical device of table (Z) |
750 |
Cooling pump motor power (W) |
90 |
Coooling pump capacity(L/M) |
25 |
N.W/G.W(kg) |
1320/1420 |
Overall dimension(mm) |
1700×1560×1730 |
Production&Workshop for XQ6232A factory manufactured vertical milling machine
Packaging&Shipping for XQ6232A factory manufactured vertical milling machine
Customer&Expo for XQ6232A factory manufactured vertical milling machine
Companny information for XQ6232A factory manufactured vertical milling machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for XQ6232A factory manufactured vertical milling machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
