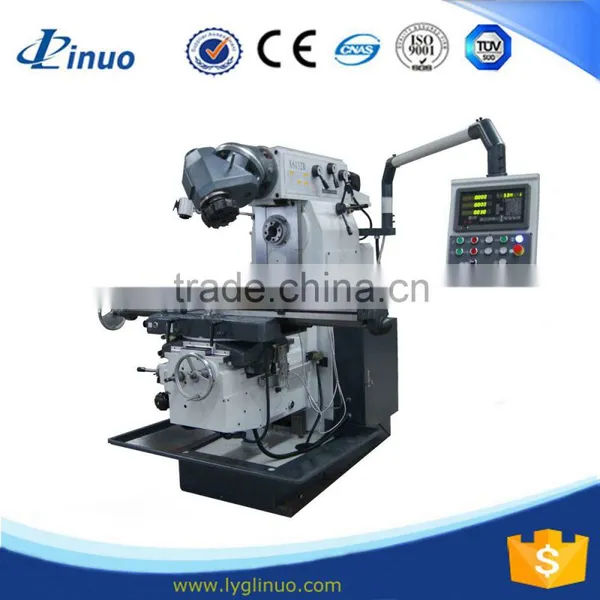

china low cost universal milling machine LM-1460
Product Description for china low cost universal milling machine LM-1460
New products introduction:
1.This universal horizontal lifting milling machine is a common high precision level of general machine tools, can machine all kinds of flat surface and groove for cylindrical milling cutter, end mill, milling cutter, angle cutter and molding cutter etc.
2.Workbench can turn around 45 degrees, the dividing head and hanging wheel rack can work at the same time can machining helical gears, twist drills in the spiral groove.
3.Suitable for single piece and small batch production and tools repair and batch production departments.
4.With vertical milling head, plugs, round table, universal dividing the first class special attachments can enlarge the using range of machine tool.
Advantages:
1.Three axis hardening treatment
2.Y, and Z axis rectangular guideway
3. Centralized drive system, much optional cutting speed, easy to operate
4. Big power, good cutting performance
5. Weight of the machine is higher than other normal product, the performance is stable
6. Vertical milling add mechanical lubricating oil,it can work long hours but not heat up
7. Electric centralized operation, control the table 30 degree tilt, this humanized design is safe and easy to operate
8. Workbench with 45 degrees rotate
9. Can be equipped with ball screw according to customer requirements
Parameters
Specifications |
X6132B(LM1460) |
Table | |
Size (mm) |
1600*320 |
T-slot (mm) |
3/18/70 |
Table load (kg) |
500 |
Swivel angle of the vertical milling head |
±360° |
Max rotary angle of work table |
±45° |
Travel | |
Long travel (mm) |
800 |
Cross travel (mm) |
320 |
Vertical travel (mm) |
350 |
Feeding | |
Feed range of table travel (steps) |
18 |
Range of feed speeds longitudinal/Cross (rpm) |
23.5-1180 |
Range of feed speeds vertical (rpm) |
8-394 |
Rapid traverse XYZ (mm/min) |
2300/2300/770 |
Spindle | |
Vertical taper |
IS050 |
Horizontal taper |
IS050 |
Spindle speed range (rpm) |
51-1483 (V) 12setps 30-1500 (H) 18steps |
Motor | |
Milling head spindle drive motor (kw) |
4 |
Horizontal spindle drive motor (kw) |
7.5 |
Feeding motor (kw) |
X/Y/Z 1.5 |
Cooling motor (w) |
125 |
Work range | |
Travel of arm (mm) |
730 |
Distance from vertical spindle to column surface (Min) (mm) |
270 |
Distabce from horizontal spindle to ram bottom (mm) |
200 |
Max. milling dia (mm) (V/H) |
200 |
Overall dimensions (mm) |
2300*2030*2000 |
N.G/G.W (kg) |
3500/3700 |

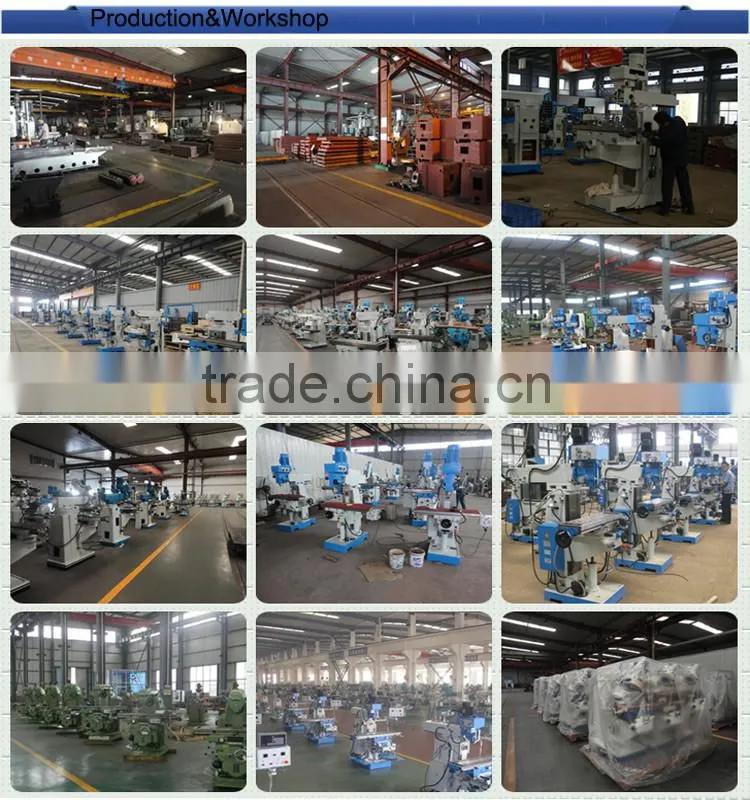

Production&Workshop for china low cost universal milling machine LM-1460

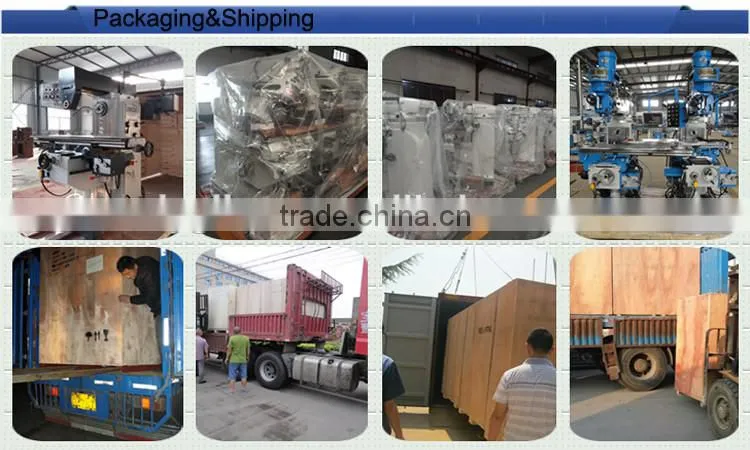

Packaging&Shipping for china low cost universal milling machine LM-1460
Customer&Expo for china low cost universal milling machine LM-1460
Companny information for china low cost universal milling machine LM-1460
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for china low cost universal milling machine LM-1460
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
