2013 New Product Horizontal Universal Milling Machine
New products introduction:
1.This universal horizontal lifting milling machine is a common high precision level of general machine tools, can machine all kinds of flat surface and groove for cylindrical milling cutter, end mill, milling cutter, angle cutter and molding cutter etc.
2.Workbench can turn around 45 degrees, the dividing head and hanging wheel rack can work at the same time can machining helical gears, twist drills in the spiral groove.
3.Suitable for single piece and small batch production and tools repair and batch production departments.

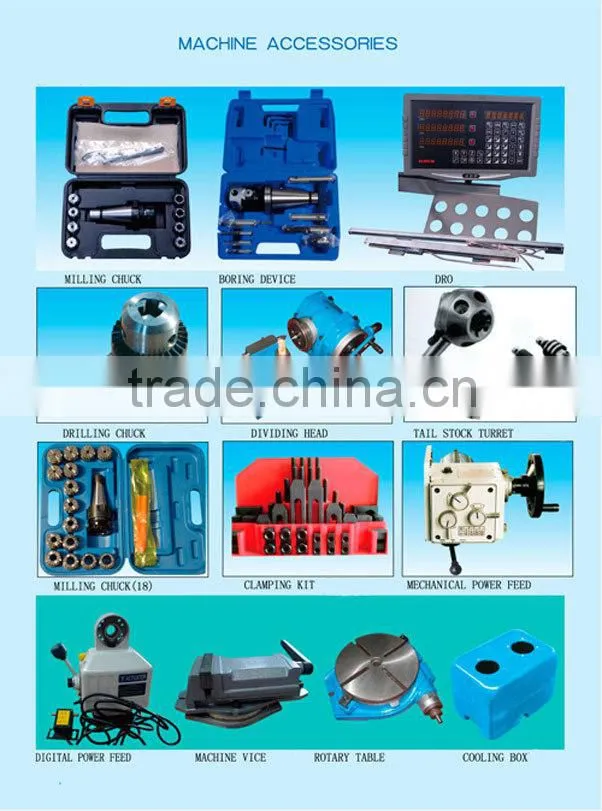

4.With vertical milling head, plugs, round table, universal dividing the first class special attachments can enlarge the using range of machine tool.
Advantages:
1.Three axis hardening treatment
2.Y, and Z axis rectangular guideway
3. Centralized drive system, much optional cutting speed, easy to operate
4. Big power, good cutting performance
5. Weight of the machine is higher than other normal product, the performance is stable
6. Vertical milling add mechanical lubricating oil,it can work long hours but not heat up
7. Electric centralized operation, control the table 30 degree tilt, this humanized design is safe and easy to operate
8. Workbench with 45 degrees rotate
9. Can be equipped with ball screw according to customer requirements
Parameters
Specifications |
X6132B(LM1460) |
Table | |
Size (mm) |
1600*320 |
T-slot (mm) |
3/18/70 |
Table load (kg) |
500 |
Swivel angle of the vertical milling head |
±360° |
Max rotary angle of work table |
±45° |
Travel | |
Long travel (mm) |
800 |
Cross travel (mm) |
320 |
Vertical travel (mm) |
350 |
Feeding | |
Feed range of table travel (steps) |
18 |
Range of feed speeds longitudinal/Cross (rpm) |
23.5-1180 |
Range of feed speeds vertical (rpm) |
8-394 |
Rapid traverse XYZ (mm/min) |
2300/2300/770 |
Spindle | |
Vertical taper |
IS050 |
Horizontal taper |
IS050 |
Spindle speed range (rpm) |
51-1483 (V) 12setps 30-1500 (H) 18steps |
Motor | |
Milling head spindle drive motor (kw) |
4 |
Horizontal spindle drive motor (kw) |
7.5 |
Feeding motor (kw) |
X/Y/Z 1.5 |
Cooling motor (w) |
125 |
Work range | |
Travel of arm (mm) |
730 |
Distance from vertical spindle to column surface (Min) (mm) |
270 |
Distabce from horizontal spindle to ram bottom (mm) |
200 |
Max. milling dia (mm) (V/H) |
200 |
Overall dimensions (mm) |
2300*2030*2000 |
N.G/G.W (kg) |
3500/3700 |
