Help CenterLunan Brand Small Bench Lathe
US$ 4,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CA6250B*2000 Promotional Horizontal Lathe MachineUS$ 8,000 - 15,000MOQ: 1 Set -
CA6240B*2000 High Precision Engine Horizontal Turning LatheUS$ 7,000 - 10,000MOQ: 1 Set
-
CA6240B*1500 Universal Horizontal Lathe Machine ToolUS$ 7,000 - 10,000MOQ: 1 Set
-
China Horizontal Lathe MachineNegotiableMOQ: 1 Set
-
CA6250B*2000 Horizontal Lathe MachineUS$ 8,000 - 15,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Max. Swing Diameter
340mm
Place of Origin
Jiangsu, China
Brand Name
lunan
Model Number
LC340A
Voltage
as customer
Power(W)
1.5kw
Weight
750kg
Certification
CE ISO9001

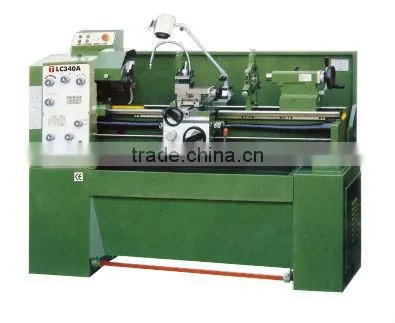

lunan brand small bench lathe
Features:
- 1.Bed is made of high tensile cast iron by resin-sand
- 2.Foundary
- 3.Bedways are hardened and ground.
- 4.9 steps and 18 steps spindle speeds are available.
- 5.2.2KW/1.5KW motor give more power suited heavy duty cutting.
- 6.Steel or cast iron stand for your choice.
- 7.Foot and electromagnetic brake are available.
- 8.Protectin systems to meet CE Standards.
- 10.Interlock to prevent simultaneous feed of leadsrew and feedshaft.
- 11.All guides are adjustable through taper gibs.
- 12.Oil-bath lubricated apron gear box.
- 13.Shift gear system to change feed direction.
-
Specification
Technical parameters
Max.swing over bed
340mm(133/8″)
Max.swing over cross slide
210mm(8″)
Max.swing over gap
470mm(181/2″)
Distance between centers
750mm(30″)
1000mm(40″)
Width of bed
186mm(71/3″)
Spindle nose
D5 OR D1-5(CAMLOCK)
Spindle bore
38mm(11/2″)
Spindle speeds(number)
60Hz
60~2000 r.p.m.(9 STEPS or 18 STEPS)
50Hz
60~2000r.p.m.(9 STEPS) 50~1720 r.p.m.(18 STEPS)
Metric threads
0.25~9mm (20 KINDS)
Inch threads
72~4(3/4) T.P.I. (33 KINDS)
Module threads
0.25~3.5mm (12 KINDS)
Diametral pitch threads
8~144 D.P. (30 KINDS)
Longitudinal feeds range
0.03~0.42mm(0.0012~0.0175in)
Cross feeds range
0.015~0.21mm(0.0006~0.0088in)
Main motor power
1.5KW
Net/gross weight (kgs)
570/670/750
