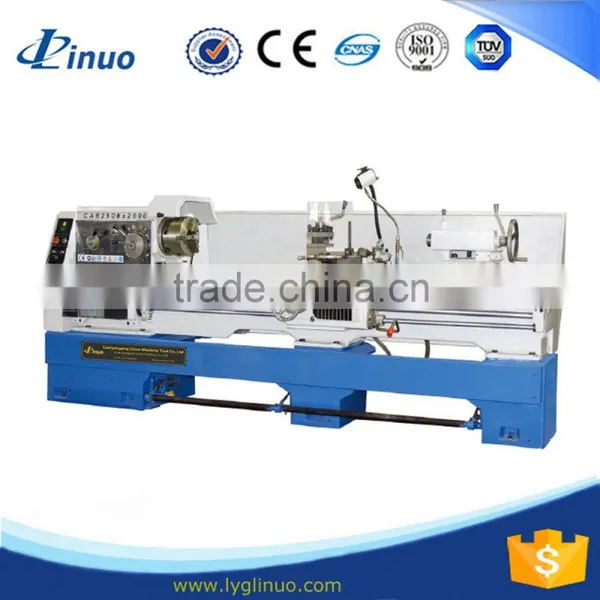

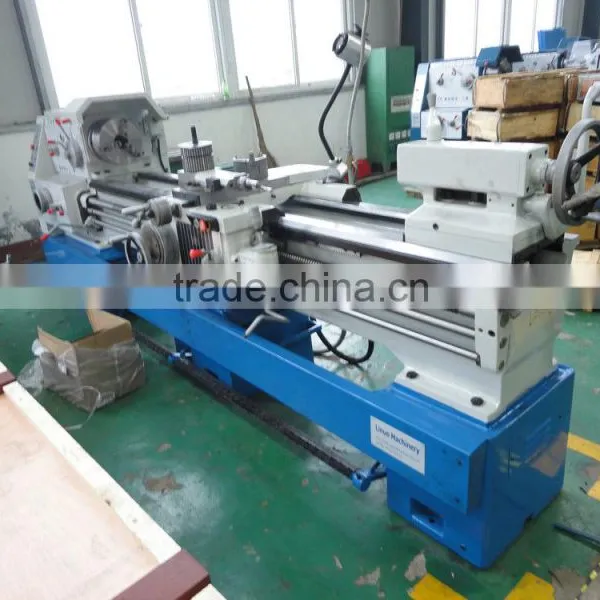

CA6250B*2000 promotional horizontal lathe machine
Product Description for CA6250B*2000 promotional horizontal lathe machine
Specifications |
CA6140 CA6240 CA6140B CA6240B |
CA6150 CA6250 CA6150B CA6250B CA6150C CA6250C |
CA6161 CA6261 CA6161B CA6261B CA6161C CA6261C |
CA6166 CA6266 CA6166B CA6266B CA6166C CA6266C |
CA6180 CA6280 CA6180B CA6280B CA6180C CA6280C |
|||||||
Max .Swing over bed |
400mm |
500mm |
610mm |
660mm |
800mm |
|||||||
Max .Swing over carriage |
210mm |
300mm |
370mm |
400mm |
540mm |
|||||||
Max .Swing in gap |
—— |
630mm |
—— |
720mm |
—— |
830mm |
—— |
880mm |
—— |
1020mm |
||
Effective gap length |
—— |
210mm |
—— |
210mm |
—— |
210mm |
—— |
210mm |
—— |
210mm |
||
Max .length of work piece |
750/1000/1500/2000/2200/3000/4000mm |
|||||||||||
Width of bed |
400mm |
|||||||||||
Section of turning tool |
25×25mm |
|||||||||||
Spindle |
Spindle speed |
10-1400rpm/16-1400rpm(24steps) |
||||||||||
Hole through spindle |
52mm ,(B:80mm),[C:105mm] |
|||||||||||
Spindle taper |
No.6(MT6)(Φ90 1:20)[Φ113:20] |
|||||||||||
Feed |
No. of feed |
(64 kinds)(for each) |
||||||||||
Range of metric threads |
(1-192mm) (44 kinds) |
|||||||||||
Range of inch threads |
(1-24tpi) (21kinds) |
|||||||||||
Range of module threads |
0.25-48 (module 39 kinds) |
|||||||||||
Range of diametral pitc threads |
1-96DP (37 kinds) |
|||||||||||
Tailstock |
Max. tailstock spindle travel |
150mm |
||||||||||
Tailstock spindle diameter |
75mm |
|||||||||||
Taper of tailstock spindle center hole |
NO.5 (MT5) |
|||||||||||
Main motor |
7.5KW(10HP) |
|||||||||||
Our lathe machine quality is guaranteed ! Check the records which we exported before.

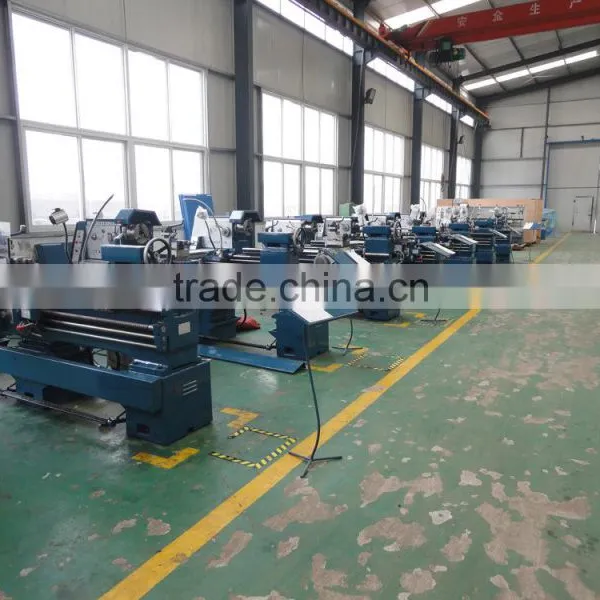

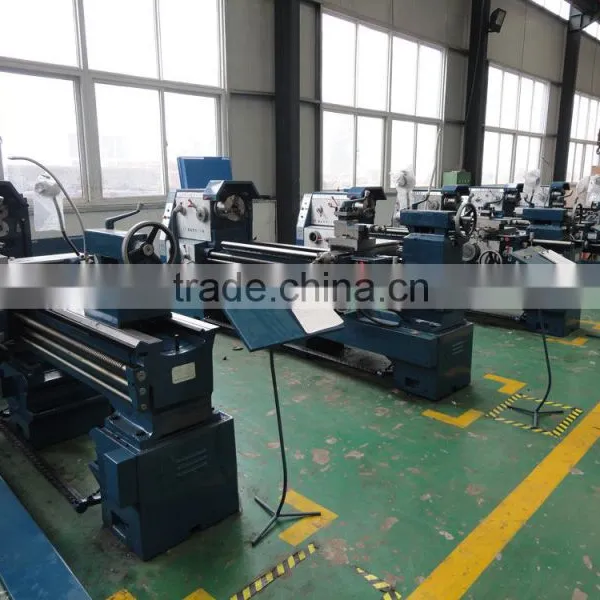

Production&Workshop for CA6250B*2000 promotional horizontal lathe machine
Customer&Expo for CA6250B*2000 promotional horizontal lathe machine

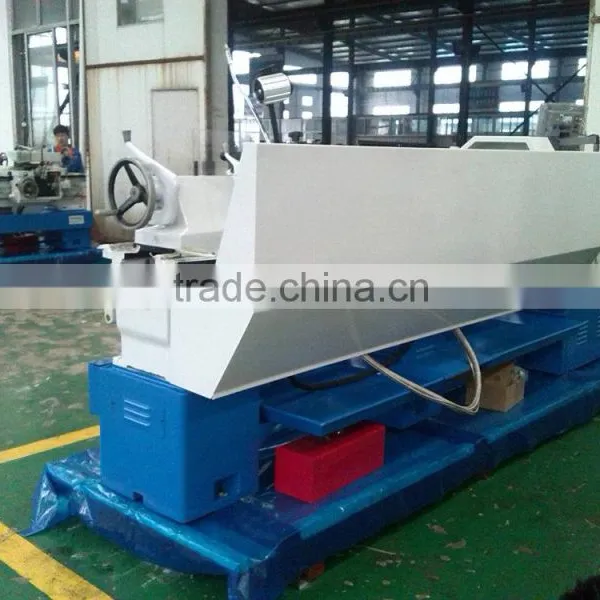

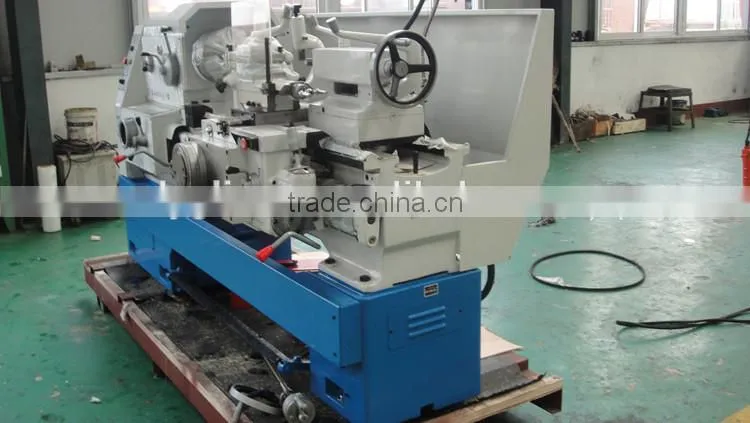

Packaging&Shipping for CA6250B*2000 promotional horizontal lathe machine
Companny information for CA6250B*2000 promotional horizontal lathe machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for CA6250B*2000 promotional horizontal lathe machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
