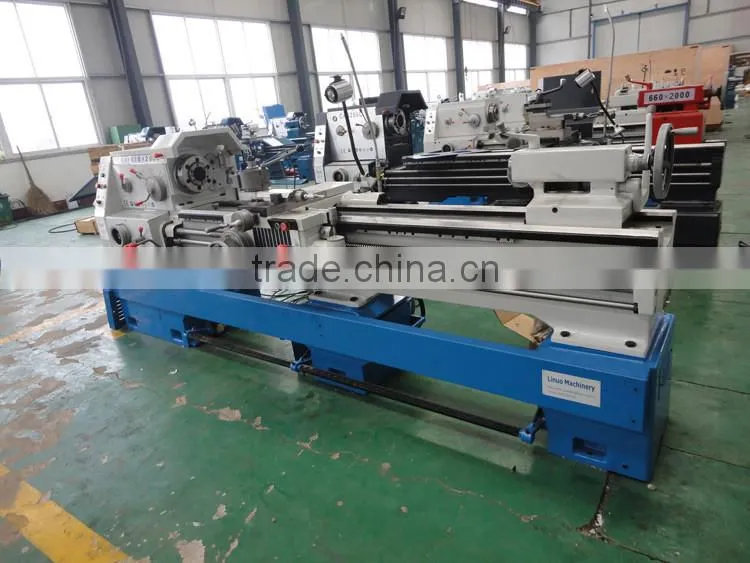

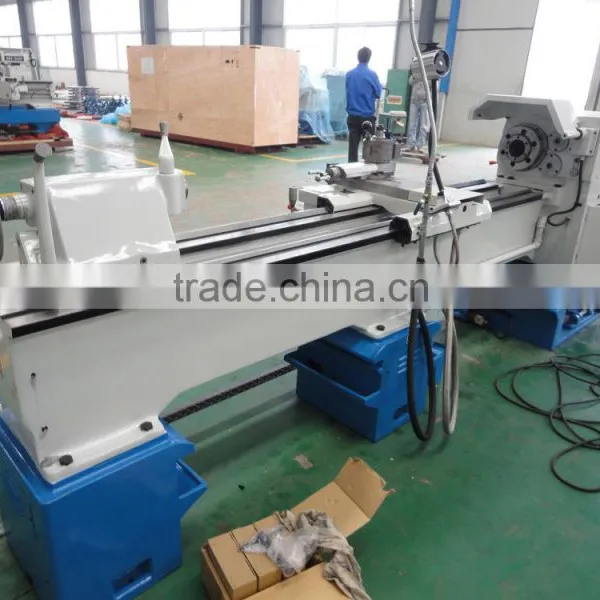

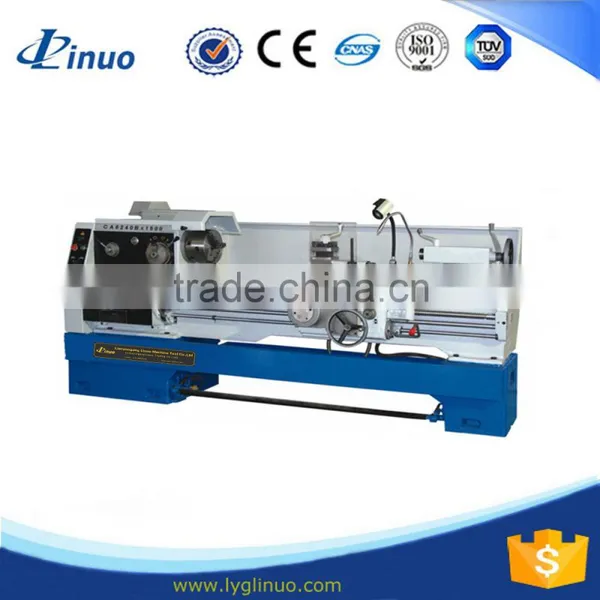

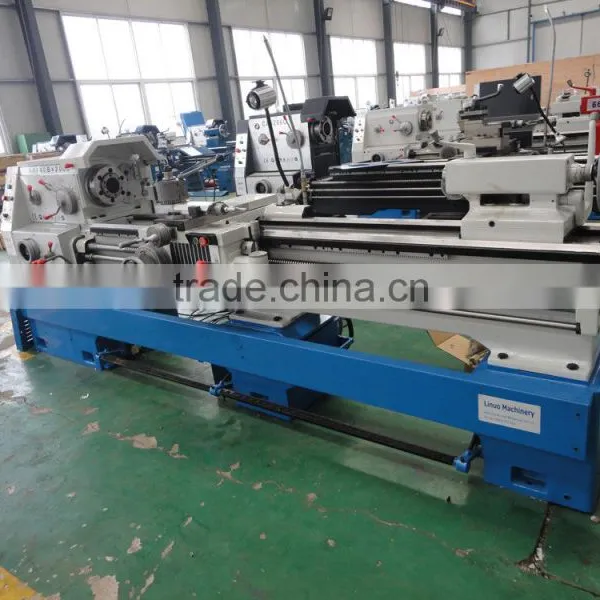

CA6240B*2000 high precision engine horizontal turning lathe
Product Description for CA6240B*2000 high precision engine horizontal turning lathe
Features:
specifications
CA6140B
CA6240B
Max .Swing over bed
400mm
Max .Swing over carriage
210mm
Max .Swing in gap
630mm
Effective gap length
210mm
Max .length of work piece
750/1000/1500/2000/2200/3000/4000mm
Width of bed
400mm
Section of turning tool
25×25mm
Spindle
Spindle speed
10-1400rpm/16-1400rpm(24steps)
Hole through spindle
80mm
Spindle taper
(MT6)(Φ90 1:20)[Φ113:20]
Feed
No. of feed
(64 kinds)(for each)
Range of metric threads
(1-192mm) (44 kinds)
Range of inch threads
(1-24tpi) (21kinds)
Range of module threads
0.25-48 (module 39 kinds)
Range of diametral pitc threads
1-96DP (37 kinds)
Tailstock
Max. tailstock spindle travel
150mm
Tailstock spindle diameter
75mm
Taper of tailstock spindle center hole
NO.5 (MT5)
Main motor
7.5KW(10HP)
Packing dimensions
(L×W×H mm)
3150×1140×1750
Weight(kg)
Length
G.W. N.W.
1500mm
2350 2220

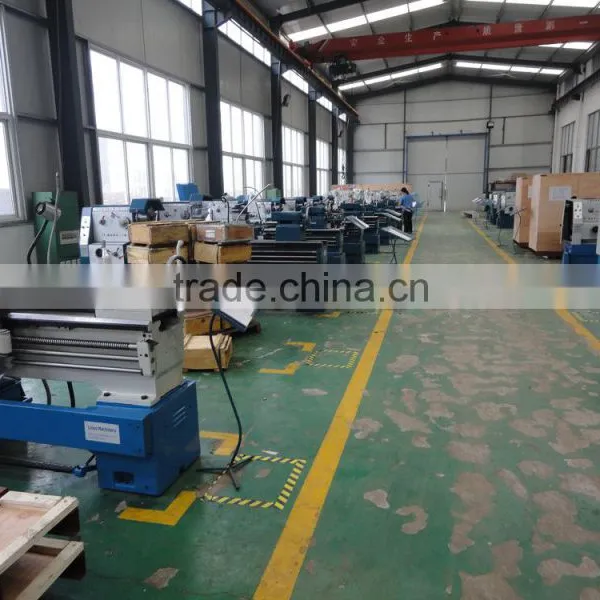

Production&Workshop for CA6240B*2000 high precision engine horizontal turning lathe
Packaging&Shipping for CA6240B*2000 high precision engine horizontal turning lathe
Customer&Expo for CA6240B*2000 high precision engine horizontal turning lathe
Companny information for CA6240B*2000 high precision engine horizontal turning lathe
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for CA6240B*2000 high precision engine horizontal turning lathe
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
