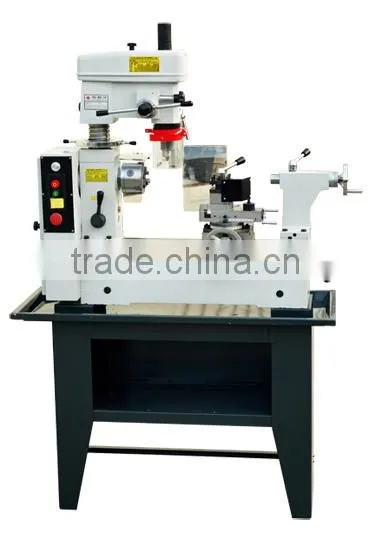

HQ400 multi purpose lathe machine
- 100 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Semi-Automatic | Max. Swing Diameter: | 420mm | Place of Origin: | Jiangsu, China |
Brand Name: | linuo | Model Number: | HQ400 | Voltage: | as customer |
Power(W): | 0.55kw | Dimension(L*W*H): | 1030*580*1070mm | Weight: | 185kg |
Certification: | CE ISO9001 | After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
1. Very practical machine for turning / milling / drilling2. Easy tooling change-over from turning to drilling and milling
HQ400 multi purpose lathe machine
Features:
Product Description
1. Very practical machine with leadscrew for turning / milling / drilling of parts
2. Easy tooling change-over from turning to drilling / milling
3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
4. Precision bearings ensure high spindle concentricity
5. Milling unit with swivel.6. HQ400V and HQ400V/1 is supplied variable speed based on HQ400 and HQ400/1
MODEL
HQ400(HQ400/1)
HQ400V(HQ400/1V)
TURNING
Swing over bed
420mm
420mm
Distance between centers
400mm
400mm
Max. longitudinal travel
380mm
380mm
Max. cross travel
120mm
120mm
Taper of spindle
M.T.3
M.T.3
Spindle hole
φ20mm
φ20mm
Step of spindle speed
3
Range of spindle speed
500,900,1600r.p.m
0-600 r.p.m,600-1800 r.p.m
Barrel travel
70mm
70mm
Taper of center
M.T.3
M.T.3
DRILLING & MILLING
Max. drilling capacity
φ15mm
φ15mm
Worktable size (L*W)
200×150mm²
200×150mm²
Max. end mill capacity
φ20mm
φ20mm
Max. face capacity
φ63mm
φ63mm
Spindle travel
85mm
85mm
Headstock travel of up and down
HQ400/180mm
HQ400/1V80mm
Spindle taper
M.T.3
M.T.3
Step of spindle speed
6
Range of spindle speed
375-1600r.p.m
0-660 r.p.m,660-2030 r.p.m
Swivel angle of headstock
±360°
±360°
MOTOR
Motor power
0.55Kw
1.1Kw
Voltage/Frequency
As customers requirement
As customers requirement
SHIPMENT DATA
Packing size
1030×580×1070mm
1030×580×1070mm
N. weight/G. weight
155kg/185kg
155kg/185kg
Loading amount
44pcs/20container
44pcs/20container
