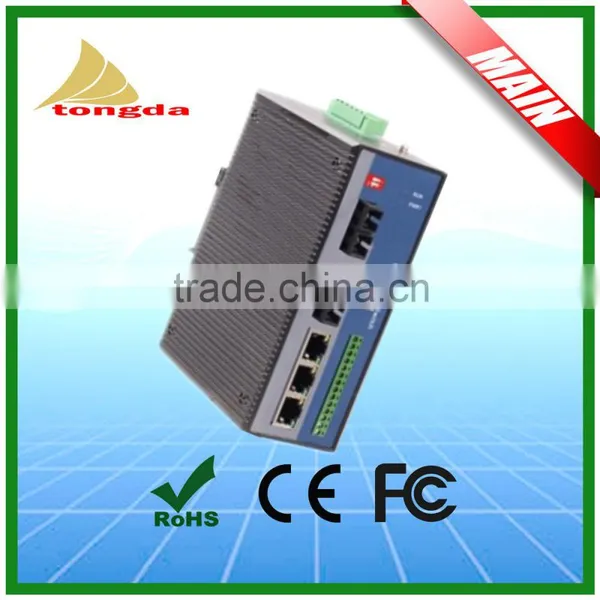

5 Port Entry Level Unmanaged Din-Rail Network Ethernet Switch

Name: 5 Port Entry Level Unmanaged Din-Rail Network Ethernet Switch
Brand: Atongda
SKU: 114825633

US$ 1 - 450 MOQ: 5 Pairs

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Atongda

Model Number:

ATIEN-3205, ATIEN-3205C

Shenzhen Atongda Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Atongda

Model Number ATIEN-3205, ATIEN-3205C

5 Port Din-rail 10/100Base Unmanaged Industrial Ethernet Switch

ATIEN3205

5 Port Din-rail 10/100Base Unmanaged Industrial Ethernet Switch ATIEN3205
Models
ATIEN3205-2S/M-3T-2D	2×100Base-FX +3×10/100Base-TX +2×Date Port
Interface
10/100Base TX Port	10/100Base-TX Self-adaption Ethernet RJ45
100Base FX Port	Multi mode/Single mode ST/SC/FC
Console Port	RS232, RJ5
Date Port	RS232/485, CAN
Communication Distance
Twisted-pair	100m
Fiber optic line	Multi mode: 1310nm, 5Km (100Base) Single mode: 1310nm, 20Km/40Km (100Base) 1550nm, 60Km/80Km(100Base)
Power
Power Supply	DC12~48V, AC/DC220V
Power consumption	<10W
Support	Over-load protection, reverse connection, Redundance
Backplane bandwidth	1.4G
MAC	2K
IEEE Standard	IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.1P, IEEE802.1q
Protocol	MW-Ring, Qos, VLAN, DHCP, Telnet
Environmental
Operating temperature	-40°C~85°C
Storage temperature	-45°C~85°C
Ambient Humidity	5%~95%
Front LED Lights
Working	RUN
Power lights	PWR
Interface lights	Link/ACT, Speed (TX) Link/ACT ( FX)
Physical Data
Material	Aluminium housing
Size	114mm×55mm×110mm
Weight	0.8kg
Installation	Din-rail/Wall-mounted
IP	40

Accessories
MDR40-24	Industrial Power Adapter (40W/24V)
MDR20-12	Industrial Power Adapter (20W/12V)
PWRX10-24	Power Adapter (10w/24v)
MW-BGAZ-01	Wall-mounted installation panel
MW-FCZ-RJ45-01	RJ Dust cover
