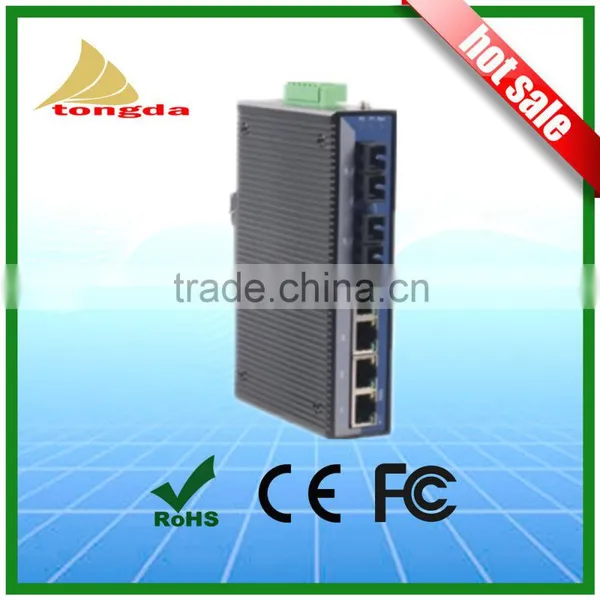

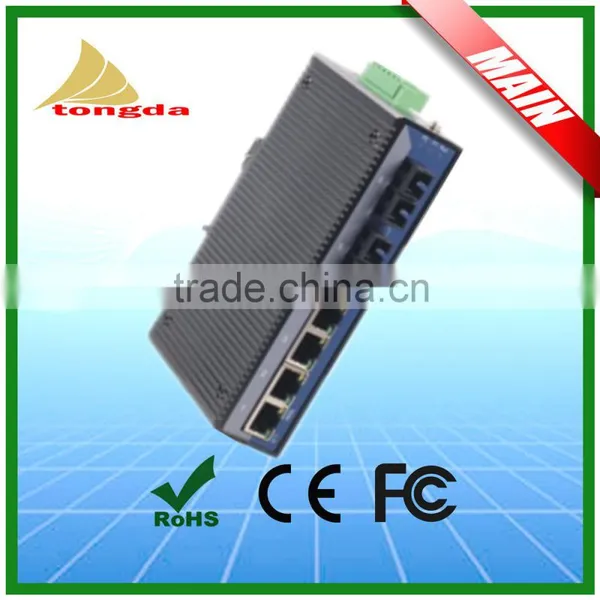

6 Port Unmanaged Ethernet Switches With 4 IEEE 802.3af/at 100 Base Ports

Name: 6 Port Unmanaged Ethernet Switches With 4 IEEE 802.3af/at 100 Base Ports
Brand: Atongda
SKU: 114825691

US$ 1 - 149 MOQ: 10 Pairs

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Atongda

Model Number:

ATIEN-2206, ATIEN-2206

Shenzhen Atongda Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Atongda

Model Number ATIEN-2206, ATIEN-2206

6 port unmanaged Ethernet switches with 4 IEEE 802.3af/at 100 Base ports

ATIEN2206

Specifications


Models
ATIEN2206-2S/M	2×100Base-FX +4×10/100Base-TX
Interface
10/100Base TX Port	10/100Base-TX Self-adaption Ethernet RJ45
100Base FX Port	Multi mode/Single mode ST/SC/FC
Communication Distance
Twisted-pair	100m
Fiber optic line	Multi mode: 1310nm, 5Km (100Base) Single mode: 1310nm, 20Km/40Km (100Base) 1550nm, 60Km/80Km(100Base)
Power
Power Supply	DC12~48V, AC85~265V/DC110~370V
Power consumption	<5W
Support	Over-load protection, reverse connection, Redundance
Backplane bandwidth	1.6G
MAC	2K
IEEE Standard	IEEE802.3,IEEE802.3u,IEEE802.3x
Environmental
Operating temperature	-40°C~85°C
Storage temperature	-45°C~85°C
Ambient Humidity	5%~95%
Front LED Lights
Working	RUN
Power lights	PWR
Interface lights	Link/ACT, Speed (TX) Link/ACT ( FX)
Physical Data
Material	Aluminium housing
Size	114mm×33mm×97mm
Weight	0.5kg
Installation	Din-rail/Wall-mounted
IP	40
Electromagnetic Compatibility
EMI	EN55022 Class A
EMS
EN61000-4-2	Anti-static; ±8KV Contact discharge; ±15KV Air discharge
EN61000-4-3	Electromagnetic field 10V/m (80~1000MHz)
EN61000-4-4	EFT, Power Line: ±4KV ; Date Line: ±2KV
EN61000-4-5	Surge Voltage, Power Line: ±2KV/DM, ±4KV/CM ; Date Line: ±2KV
EN61000-4-6	Antistatic conductive 3V (10KHz~150KHz), 10V (150KHz~80MHz)
IEC68-2-6	Shake
IEC68-2-27	Impact
IEC68-2-32	Free-falling
