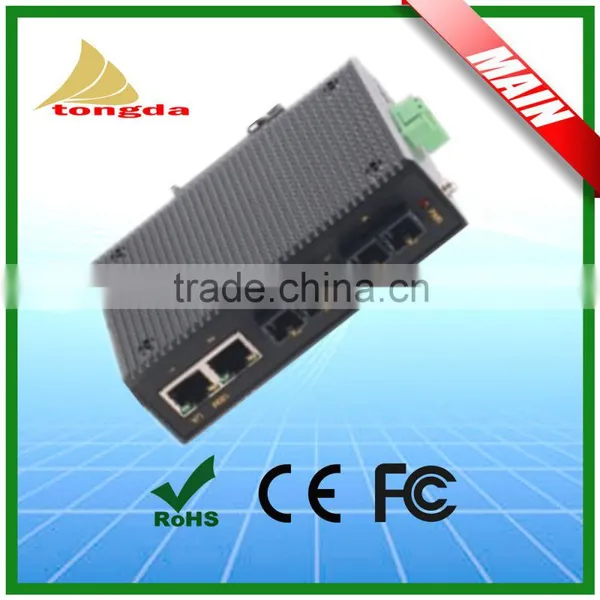

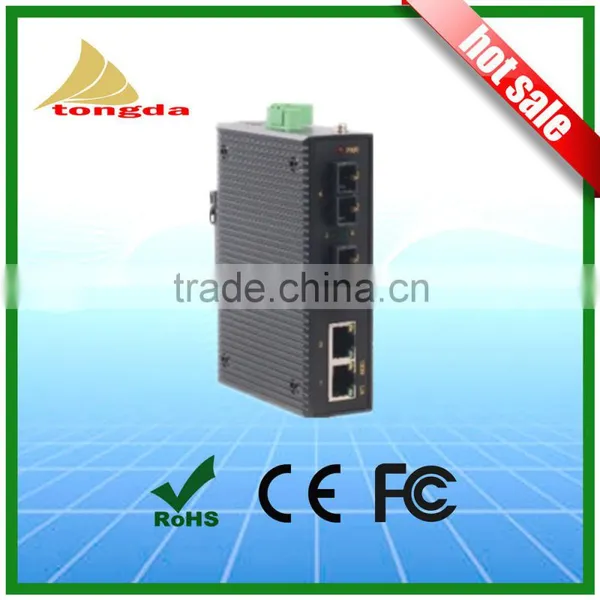

4 Port Din-mount 100Base Hardened Unmanaged Industrial network switch
ATIEN2204
Features
♦ Supports auto-negotiation and auto-MDI/MDI-X
♦ Supports full/half duplex operation
♦ High reliability and rigid IP-40 housing
♦ DIN-Rail and wall mounting enabled
♦ Wide operating temperature range from -40 to 85°C
Specifications
|
4 Port Din-rail 10/100Base Unmanaged Industrial Ethernet Switch ATIEN2204 | |
Models |
|
ATIEN2204-2S/M-2T |
2×100Base-FX +2×10/100Base-TX |
Physical Ports | |
10/100Base TX Port |
10/100Base-TX Ethernet RJ45 |
100Base FX Port |
Multi mode/Single mode ST/SC/FC |
Communication Distance | |
Twisted-pair |
100m |
Fiber optic line |
Multi mode: 1310nm, 5Km (100Base) Single mode: 1310nm, 20Km/40Km (100Base) 1550nm, 60Km/80Km(100Base) |
Power | |
Power Supply |
DC9~36V, DC48V, AC85~265V/DC110~370V |
Power consumption |
<5W |
Overload current protection |
Present |
Reverse polarity protection |
Present |
Technology | |
MAC Table |
1K MAC addresses |
Ethernet Standard |
IEEE802.3,IEEE802.3u,IEEE802.3x |
Environmental | |
Operating temperature |
-40°C~85°C |
Storage temperature |
-45°C~85°C |
Operating Humidity |
5%~95% non-condensing |
LED Indicators | |
Power indicator |
PWR |
Port indicator |
Link/ACT, Speed (TX) Link/ACT ( FX) |
Physical Characteristics | |
Enclosure |
IP40 protection, Metal case |
Size |
114mm×33mm×80mm |
Weight |
0.3kg |
Installation |
Din-rail/Wall-mounted |
Regulatory Approvals | |
EMI |
EN55022 Class A |
EMS |
|
EN61000-4-2 |
Anti-static; ±8KV Contact discharge; ±15KV Air discharge |
EN61000-4-3 |
Electromagnetic field 10V/m (80~1000MHz) |
EN61000-4-4 |
EFT, Power Line: ±4KV ; Date Line: ±2KV |
EN61000-4-5 |
Surge Voltage, Power Line: ±2KV/DM, ±4KV/CM ; Date Line: ±2KV |
EN61000-4-6 |
Antistatic conductive 3V (10KHz~150KHz), 10V (150KHz~80MHz) |
IEC68-2-6 |
Vibration |
IEC68-2-27 |
Shock |
IEC68-2-32 |
Free Fall |
Accessories |
|
MDR40-24 |
Industrial Power Adapter (40W/24V) |
MDR20-12 |
Industrial Power Adapter (20W/12V) |
PWRX10-24 |
Power Adapter (10w/24v) |
MW-BGAZ-01 |
Wall-mounted installation panel |
MW-FCZ-RJ45-01 |
RJ Dust cover |
