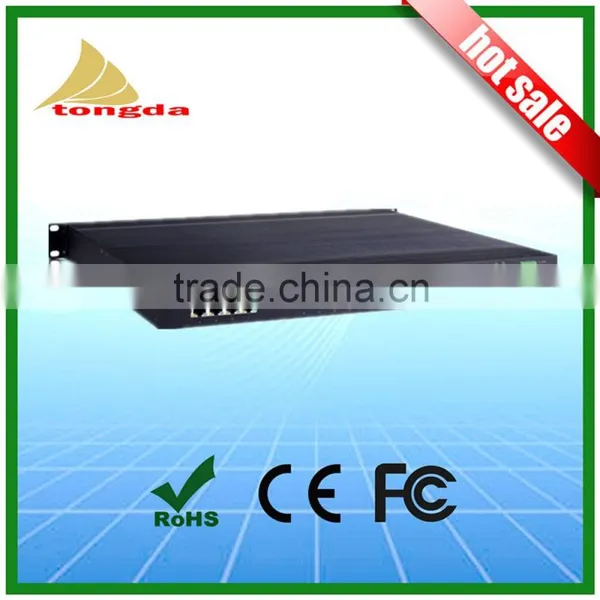

ATIGS7026 web smart flexible industrial gigabit ethernet switch
Features:
1. Web-server support remote management
2. Plug-and-play
3. Based on MW-Ring technology achieve Redundant self-healing function
4. Online debugging
5. Power off alarm
6. Redundance dual power supply
7. Broadcast storm protection
8. Trunk port
9. Anti-electromagnetic interference
Gigabit Rack mounted Managed Industrial Ethernet Switch | |
Models |
|
ATIGS7026-2GS/GM-24T |
2×Gigabit optic and RJ45 combo Port +24×10/100Base-TX |
ATIGS7026-2GS/GM-4S/M-20T |
2×Gigabit optic and RJ45 combo Port +20×10/100Base-TX +4×10/100Base-FX |
ATIGS7026-2GS/GM-8S/M-16T |
2×Gigabit optic and RJ45 combo Port +16×10/100Base-TX +8×10/100Base-FX |
ATIGS7026-2GS/GM-12S/M-12T |
2×Gigabit optic and RJ45 combo Port +12×10/100Base-TX +12×10/100Base-FX |
ATIGS7026-2GS/GM-16S/M-8T |
2×Gigabit optic and RJ45 combo Port +8×10/100Base-TX +16×10/100Base-FX |
ATIGS7026-2GS/GM-24S/M |
2×Gigabit optic and RJ45 combo Port +24×10/100Base-FX |
Interface | |
Ethernet Port |
RJ 45 port (auto negotiation &MDI/MDI-X connection) |
Fiber Optic Port-Optional |
Multi mode/Single mode, ST/SC/FC |
Communication Distance | |
Fiber optic line |
Multi mode: 1310nm 5Km (100Base), 850mm 550m (1000Base) Single mode: 1310nm 20Km/40Km (100Base) 1550nm 60Km/80Km(100Base) 1310nm 10Km/40Km (1000Base) 1550nm 60Km/80Km(1000Base) |

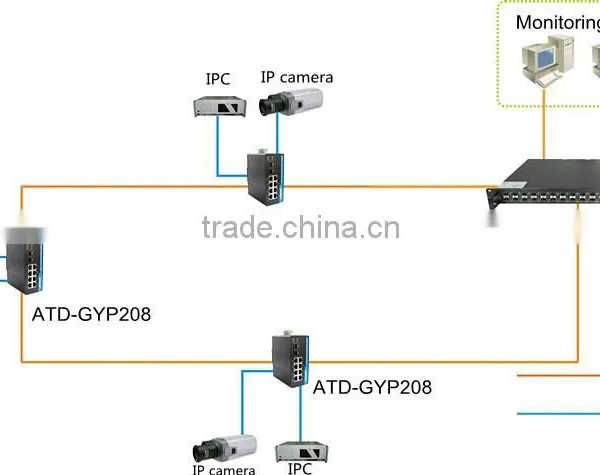

Topology Structure | |
Support |
Chain network/Star network/Ring network |
Power | |
Power |
Redundant dual power supply |
Power Supply |
DC24V/48V; AC85~265V/DC110~370V |
Power consumption |
<25W |
Alarm output |
MAX: Current (1A@24VDC) Voltage (500VDC) |
Support |
Over-load protection, reverse connection, Redundance |
Forwarding rate |
6.5M |
MAC |
8K |
IEEE Standard |
IEEE802.3,IEEE802.3u,IEEE802z,IEEE802.1x,IEEE802.3x,IEEE802.1p |
Protocol |
MW-Ring,Port-based VLAN, 802.1q VLAN, TRUNK, Qos, 802.1p/1q and Tos/DiffServe, IGMP Snooping, RSTP, SNMPv1/v2c |
Environmental | |
Operating temperature |
-40°C~85°C |
Storage temperature |
-45°C~85°C |
Ambient Humidity |
5%~95% |
LED Lights | |
Working |
RUN |
Power lights |
PWR1, PWR2 |
Interface lights |
Link/ACT, Speed (TX) Link/ACT, Speed (100Base FX) Link/ACT, G Speed (1000Base FX) |
