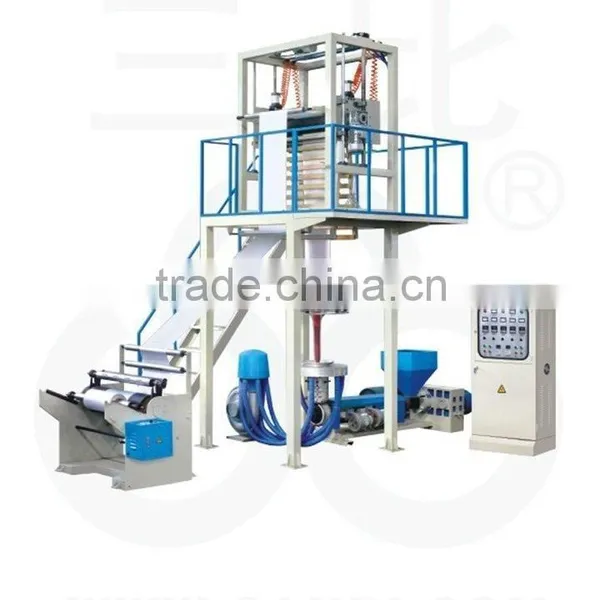

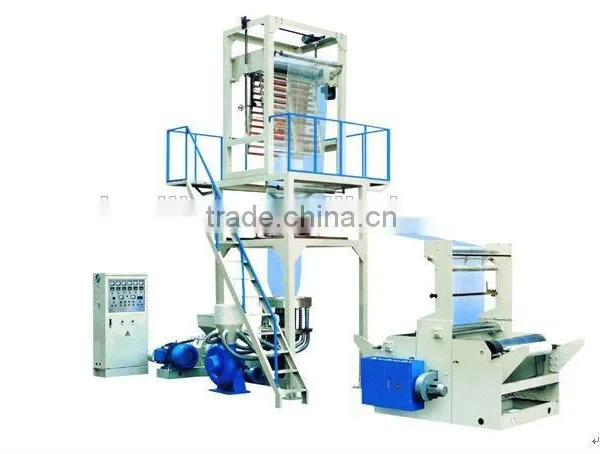

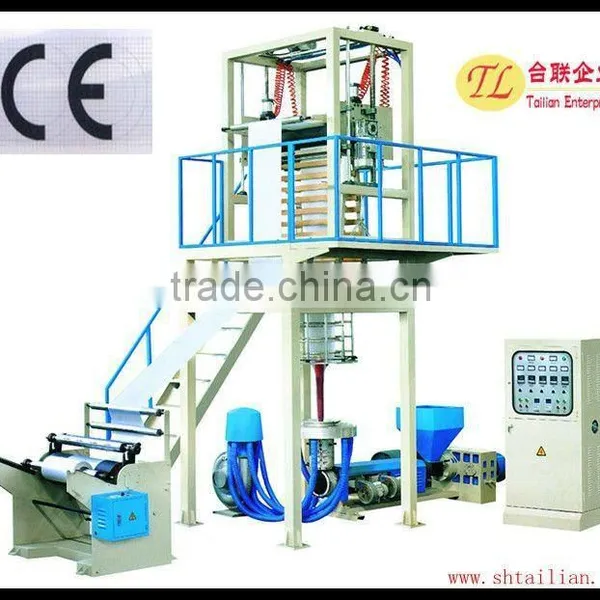

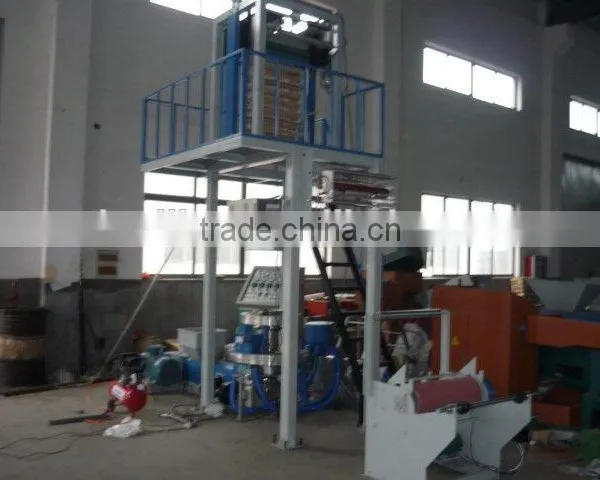

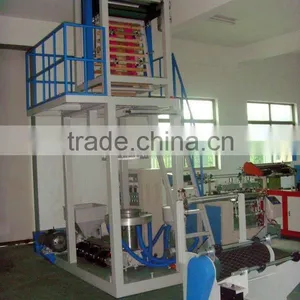

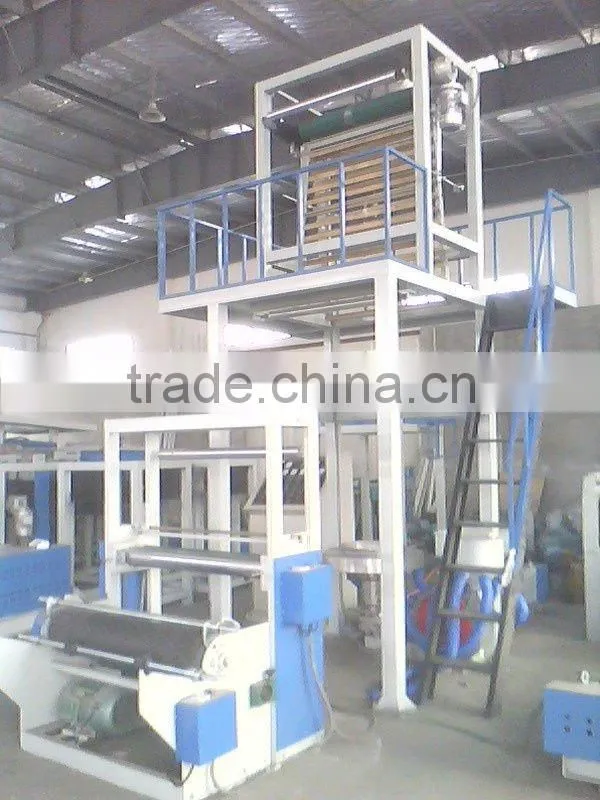

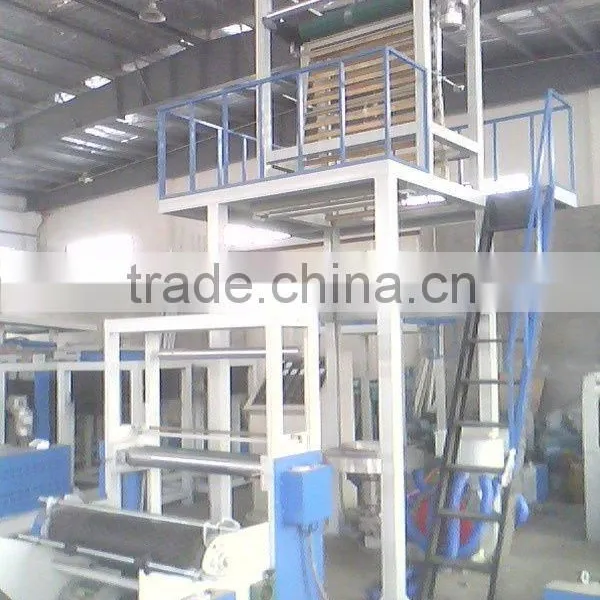

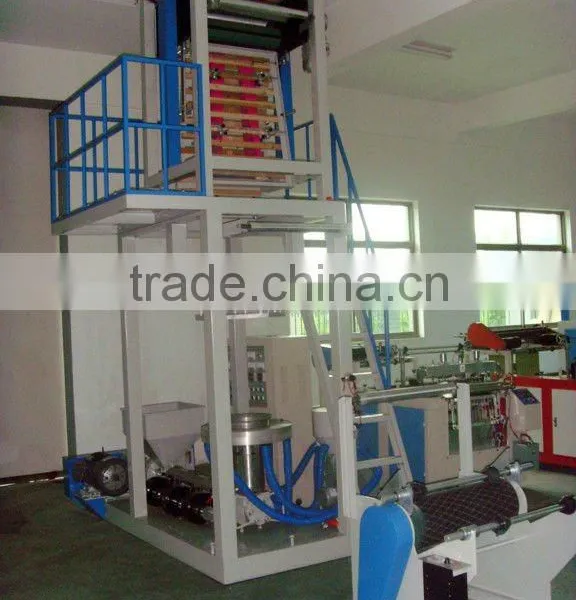

HD/LDPE High Speed Film Blowing Machine
US$ 17,150 - 17,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
Other, HDPE/LDPE
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Film Blowing MachineUS$ 7,000 - 40,000MOQ: 1 Set -
Three to Five Layers Co-extrusion Film Blowing MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Co-extrusion Film Blowing MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Two Layers Co-extrusion Film Blowing MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
High-speed Co-extrusion Film Blowing MachineUS$ 10,000 - 50,000MOQ: 1 Set
Condition
New
Application
Film
Plastic Processed
Other, HDPE/LDPE
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
Place of Origin
Shanghai, China
Brand Name
TL
Model Number
TL-A75
Voltage
380V
Power(W)
65kw
Dimension(L*W*H)
5000mm*3000mm*5200mm
Weight
3500KG
Certification
CE
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Model |
Diameter of screw | L/D | Reduced diameter of film |
Single-face Thickness of Film |
Max Output |
Power of main motor |
Power of traction motor |
Heating Power |
Outline Diameter (LxWxH) |
Weight |
| A45 | φ45 | 28:1 | 100-500mm | 0.008-0.06mm | 15-30kg/h |
7.5KW |
0.75KW |
13KW |
5000×2100×3500mm |
1.5T |
| A50 | φ50 | 28:1 | 100-600mm | 0.008-0.06mm | 20-40kg/h | 11KW | 0.75KW | 13KW | 5500×2100×3700mm | 1.7T |
| A55 | φ55 | 28:1 | 200-800mm | 0.008-0.06mm | 25-50kg/h | 11-15KW | 0.75KW | 13KW | 5500×2100×3800mm | 1.8T |
| A60 | φ60 | 28:1 | 300-1000mm | 0.008-0.06mm | 40-70kg/h | 15-18.5KW | 0.75KW | 18KW | 6000×2300×4200mm | 2.2T |
| A65 | φ65 | 28:1 | 400-1500mm | 0.008-0.06mm | 45-70kg/h | 18.5-22KW | 1.1KW | 1.1KW | 6500×2300×4500mm | 2.5T |
| A75 | φ75 | 28:1 | 700-1500mm | 0.008-0.06mm | 60-85kg/h | 22-30KW | 1.1KW | 1.1KW | 7500×2800×5200mm | 3T |
| A90 | φ90 | 28:1 | 1200-2000mm | 0.008-0.06mm | 80-100kg/h | 30-37KW | 1.1KW | 1.1KW | 9000×3500×8000mm | 4T |
