Three to Five Layers Co-extrusion Film Blowing Machine

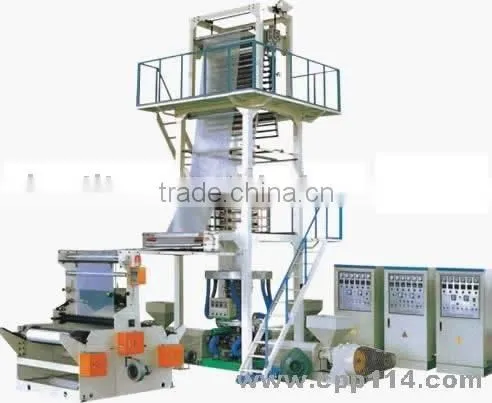

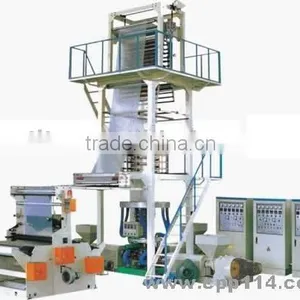

Three to Five Layers Co-extrusion Film Blowing Machine photo-1
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Shanghai, China
Brand Name TAILIAN
Model Number Three to Five layers co-extrusion film blowing machine

Specifications

Three to Five layers co-extrusion film blowing machine

Three to Five layers co-extrusion film blowing machine



Functions and description
High-quality harden face three-axis drive gear, reducer, VVVF Main Motor, traction elevator rack, VVVF traction motor, centrifugal fan, air compressor, an independent power winder rejection,(another rotary die head with additional payment )
P.S Single Film Thickness 0.008-0.06mm
Main Technical Parameters

MODEL

Screw diameter

Screw L/D length

Film Lay flat width

Thickness

Max output

Power of

Main motor

Power of traction motor

Heating power

Outline dimensions

weight

A45

φ45

28:1

100 -500mm

0.008 -0.06mm

15 -30kg /h

7.5KW

0.75KW

13KW

5000×2100× 3500mm

1.5T

A50

φ50

28:1

100 -600mm

0.008 -0.06mm

20 -40kg /h

11KW

0.75KW

13KW

5500×2100× 3700mm

1.7T

A55

φ55

28:1

200 -800mm

0.008 -0.06mm

25 -50kg /h

11-15KW

0.75KW

13KW

5500×2100× 3800mm

1.8T

A60

φ60

28:1

300 -1000mm

0.008 -0.06mm

40 -70kg /h

15-18.5KW

0.75KW

18KW

6000×2300× 4200mm

2.2T

A65

φ65

28:1

400 -1500mm

0.008 -0.06mm

45 -70kg /h

18.5-22KW

1.1KW

1.1KW

6500×2300× 4500mm

2.5T

A75

φ75

28:1

700 -1500mm

0.008 -0.06mm

60 -85kg /h

22-30KW

1.1KW

1.1KW

7500×2800× 5200mm

3T

A90

φ90

28:1

1200 -2000mm

0.008 -0.06mm

80 -100kg /h

30-37KW

1.1KW

1.1KW

9000×3500× 8000mm

4T
