Home > Products > Straight Boom > High Quality 10 Ton Cargo Crane Truck/pickup Truck Bed Hoist/telescopic Boom Crane
High Quality 10 Ton Cargo Crane Truck/pickup Truck Bed Hoist/telescopic Boom Crane
US$ 40,940 - 45,757
/ Set
1 Set(Min. Order)
- Shanghai Shenzhen Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Top Qualtiy 10 Ton Crane Truck/telescopic Truck Crane/heavy Duty Truck Hoist
-
High Quality 10 Ton Jib Crane Truck/crane for Pickup/crane Equipment
-
Top Qualtiy 10 Ton Trailer Hitch Crane/construction Crane/pickup Truck Bed Crane
-
China Top Crane Manufacture 10 Ton Knuckle Boom Crane Truck for Sale
-
High Quality 10 Ton Bucket Crane Truck/hitch Mounted Hoist/lift Crane
-
High Quality Crane Price 10 Ton Mobile Crane for Sale
Product Details
| Condition | New | Application | Construction | |
| Rated Loading Capacity | 6805kg | Rated Lifting Moment | 25T.M | |
| Max. Lifting Load | 10 Ton | Max. Lifting Height | 15.5 m | |
| Span | 5.8 m | Place of Origin | Jiangxi, China | |
| Brand Name | Jianghuan | Model Number | SQ1004 | |
| Certification | CCC | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

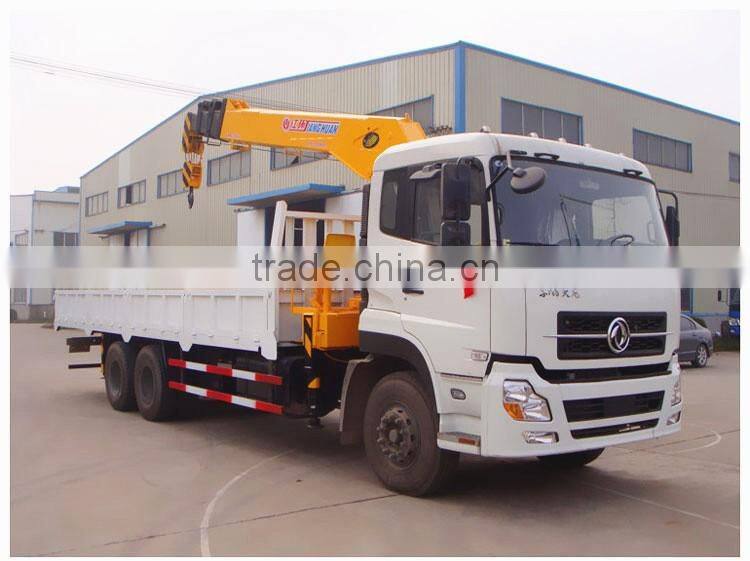

high quality 10 ton cargo crane truck/pickup truck bed hoist/telescopic boom crane
* truck crane
* truck crane
* truck crane
Product Description
* Specification of the truck crane SQ804
| Model No. | SQ804 | |
Main specification of crane | Boom Style | Straight boom |
| pressure system | hydraulic system | |
| Max oil flow of hydraulic syetem | 80 L/Min | |
| reated pressure of hydraulic system | 20 Mpa | |
| max lifting capacity | 10T | |
| max lifting moment | 25 T.M | |
| max working radius | 12.5M | |
| max lifting height | 15.5M | |
| Derricking Scope | 1-76° | |
| Rotation Angle | 360°All Rotation | |
| Number of jib arm sections | 4 | |
| outrigger span | 5.8m | |
| Oil tank capacity | 120L | |
| crane weight | 4200kg | |
| installation space | 1300mm | |
* Specifications of chasiss truck
1.Jianghuan crane can be installed onto most China domestic truck and also oversea brand trucks.
2. For the following truck specifications is only one models, other truck models can be reccommended according to the customer's requirements.
| Model No. | DFE5161JSQF |
| Engine | YC6J180-45 |
| Engine Power | 132kw |
| Engine Capacity | 6500ml |
| Overall Dimension | 9000×2490×3650 mm |
| Cargo Frame Dimension | 5700×2294×550 mm |
| Total Weight | 15900Kg |
| Curb Weight | 8900Kg |
| Rated Load Capacity | 6805kg |
| Approach / Departure Angle | 20/12 ° |
| Front / Rear Over Hang | 1420/2480mm |
| Axle-Load | 5900/10000 |
| Wheel Base | 5100mm |
| Number of Axles | 2 |
| Maximum Speed | 90km/h |
| Leaf Spring | 10/10+8 |
| Number of Tyres | 6 |
| Tyre Specification | 10.00-20,10.00R20 |
| Front Wheel Distance | 1960 |
| Rear Wheel Distance | 1860 |
| Integrated Fuel | 27.7 |
| Drive Type | 4×2 |

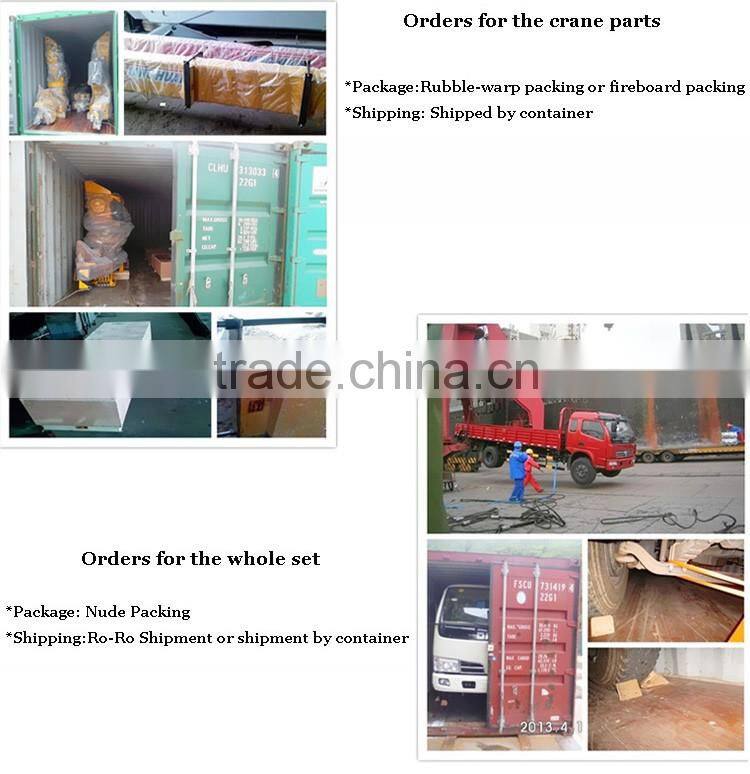

Packaging & Shipping
Our Services
1. Profeesional truck crane manufacture Since 1998. we have our own reasearch team for offering OEM and ODM service.
2. we offer SKD services for saving cost for our customer.
3. 1 year warranty period.
4. All the inquiry will be answered in 12 hours .
5. 15-25 delivery time.
6. After-sales services team give the fast support to our customer

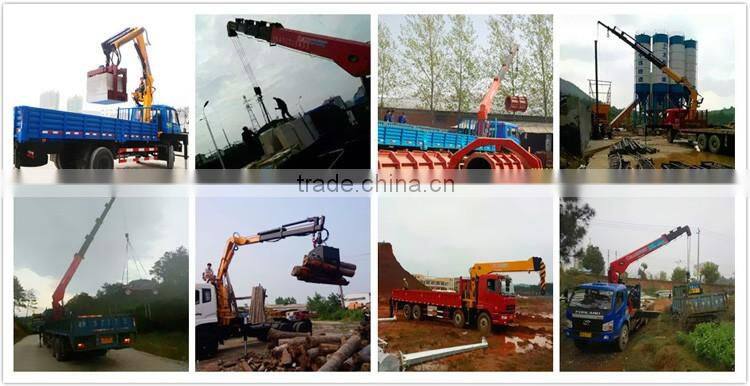

Applications
Markets
Contact
Contact Us
- Jiangxi Jiang Huan Automobile Co., Ltd.
- Contact nameJohn Lau Chat Now
- Phone86-0797-8088932
- AddressShahe Industrial Park , Ganzhou, Jiangxi
