Home > Products > Straight Boom > hot price 12 ton hydraulic crawler crane/loader crane/wheel mounted crane
hot price 12 ton hydraulic crawler crane/loader crane/wheel mounted crane
USD $53,216 - $60,209
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- Shanghai Shenzhen Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China suppiler 12 ton tractor mounted crane/crane truck for sale/national boom truck crare
-
hot price 12 ton flatbed truck crane for sale/track mounted crane/carry deck cranes
-
high quality 10 ton cab crane/heavy lifting crane/slewing mobile crane
-
top qualtiy 10 pedestal mounted crane/mobile construction crane/telescope crane
-
high quality 10 ton krupp crane/unic cranes/technic mobile crane
-
crane manufacturers 7 Ton city crane/mobile lift crane/rc hydraulic crane
Product Details
| Condition | New | Application | Construction | |
| Rated Loading Capacity | 11205kg | Rated Lifting Moment | 30t.m | |
| Max. Lifting Load | 12ton | Max. Lifting Height | 16.8m | |
| Span | 6 m | Place of Origin | Jiangxi, China | |
| Brand Name | Jianghuan | Model Number | SQ1204 | |
| Certification | CCC | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
hot price 12 ton hydraulic crawler crane/loader crane/wheel mounted crane

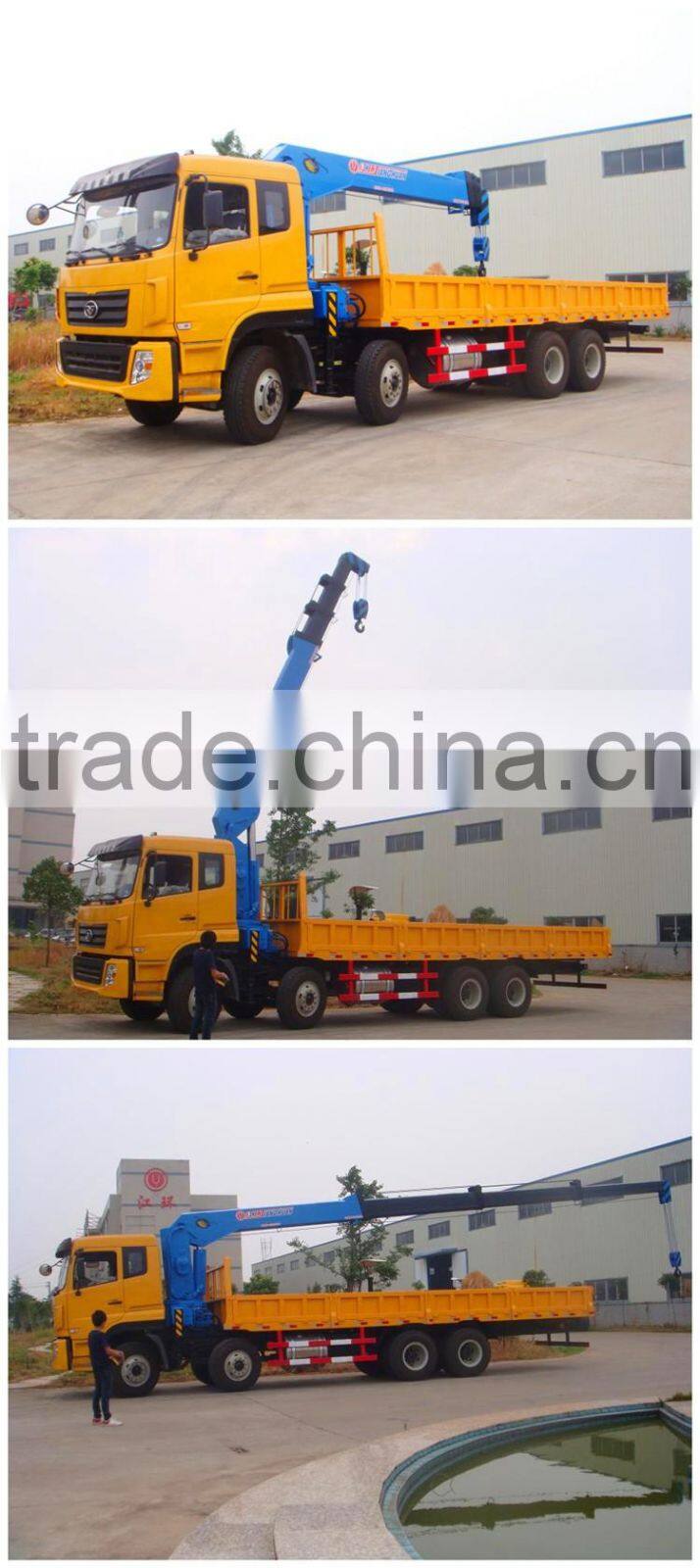

* truck crane
* truck crane
* truck crane
Product Description

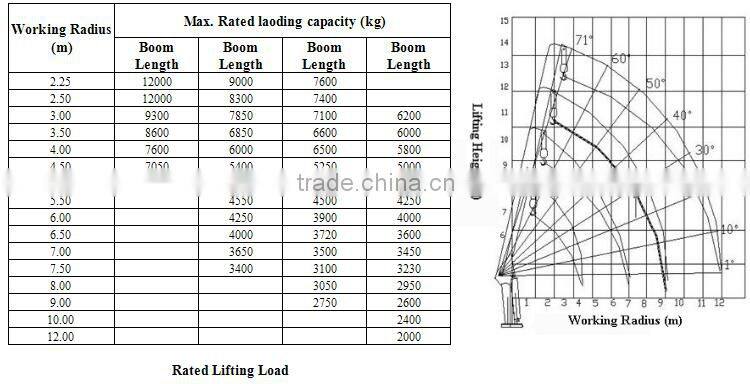

* Specification of the truck crane SQ1204
| Model No. | SQ1204 | |
Main specification of crane | Boom Style | Straight boom |
| pressure system | hydraulic system | |
| Max oil flow of hydraulic syetem | 80 L/Min | |
| reated pressure of hydraulic system | 20 Mpa | |
| max lifting capacity | 12T | |
| max lifting moment | 30T.M | |
| max working radius | 13.8M | |
| max lifting height | 16.8M | |
| Derricking Scope | 1-76° | |
| Rotation Angle | 360°All Rotation | |
| Number of jib arm sections | 4 | |
| outrigger span | 6m | |
| Oil tank capacity | 120L | |
| crane weight | 4700kg | |
| installation space | 1300mm | |
* Specifications of chasiss truck
1.Jianghuan crane can be installed onto most China domestic truck and also oversea brand trucks.
2. For the following truck specifications is only one models, other truck models can be reccommended according to the customer's requirements.
| Model No. | DFE5258JSQF |
| Engine | ISDe245 40 |
| Engine Power | 180kw |
| Engine Capacity | 6700ml |
| Overall Dimension | 12000×2500×3800mm |
| Cargo Frame Dimension | 8500×2294×550mm |
| Total Weight | 24900Kg |
| Curb Weight | 13500Kg |
| Rated Load Capacity | 11205kg |
| Approach / Departure Angle | 19/9 ° |
| Front / Rear Over Hang | 1480/3370mm |
| Axle-Load | 7000/17900 |
| Wheel Base | 5850+1300 mm |
| Number of Axles | 3 |
| Maximum Speed | 90km/h |
| Leaf Spring | 10/13 |
| Number of Tyres | 10 |
| Tyre Specification | 10.00-20,10.00R20,11.00-20 16PR,11.00R20 16PR |
| Front Wheel Distance | 1980 |
| Rear Wheel Distance | 1860/1860 |
| Integrated Fuel | 37.4 |
| Drive Type | 6×4 |

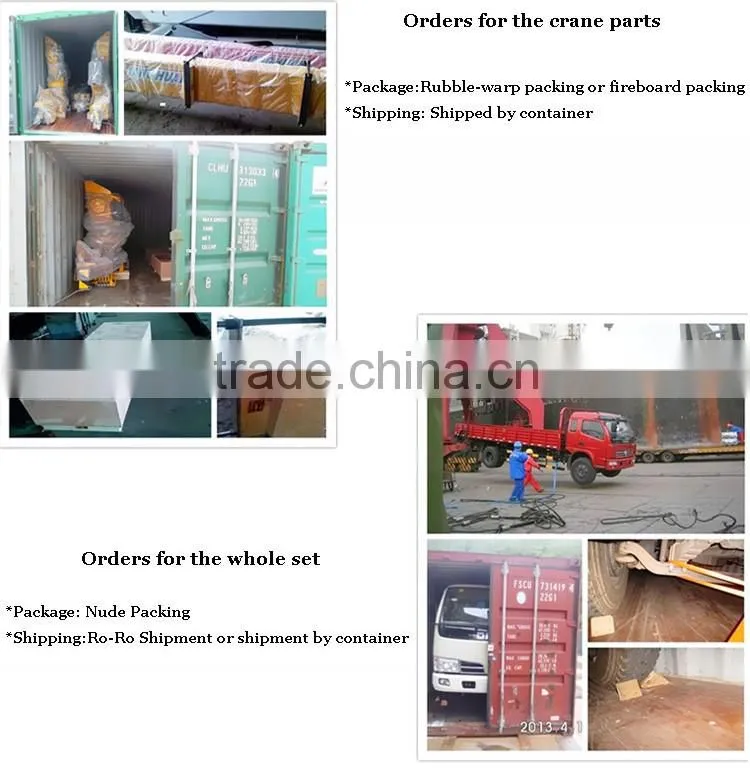

Packaging & Shipping
Our Services
1. Profeesional truck crane manufacture Since 1998. we have our own reasearch team for offering OEM and ODM service.
2. we offer SKD services for saving cost for our customer.
3. 1 year warranty period.
4. All the inquiry will be answered in 12 hours .
5. 15-25 delivery time.
6. After-sales services team give the fast support to our customer

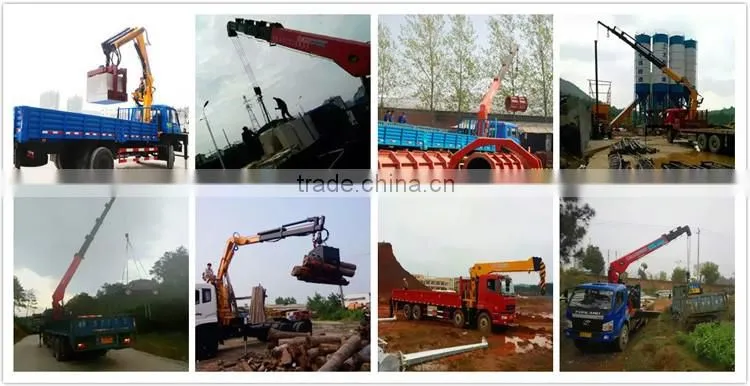

Applications
Markets
Contact
Contact Us
- Jiangxi Jiang Huan Automobile Co., Ltd.
- Contact nameJohn Lau Chat Now
- Phone86-0797-8088932
- AddressShahe Industrial Park , Ganzhou, Jiangxi
