Mobile Crane Manufacturer 8 Ton Link Belt Crane/franna Cranes/knuckle Boom Crane Trucks for Sale
US$ 38,928 - 43,115
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Construction
Rated Loading Capacity:
6805kg
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supplier 14 Ton Big Mobile Crane/man Crane TruckUS$ 57,808 - 64,801MOQ: 1 Set -
Hot Sale 12 Ton Crane for Construction/truck Mounted Crane in IndiaUS$ 53,216 - 60,209MOQ: 1 Set
-
Hot Price 12 Ton Sign Crane Trucks/portable Hydraulic Crane/cranes CranesUS$ 53,216 - 60,209MOQ: 1 Set
-
China Supplier 14 Ton Swivel Truck Crane/van Mounted Cranes/jual Truck CraneUS$ 57,808 - 64,801MOQ: 1 Set
-
Hot Price 12 Ton Unic Truck Mounted Crane/conventional Truck Crane/unic Truck CraneUS$ 53,216 - 60,209MOQ: 1 Set
Condition
New
Application
Construction
Rated Loading Capacity
6805kg
Rated Lifting Moment
20T.M
Max. Lifting Load
3000 kg
Max. Lifting Height
15.5 m
Span
5.7 m
Place of Origin
Jiangxi, China
Brand Name
Jianghuan
Model Number
SQ804
Certification
CCC
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

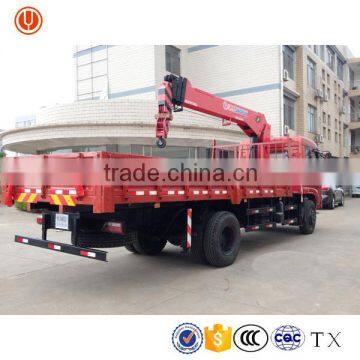

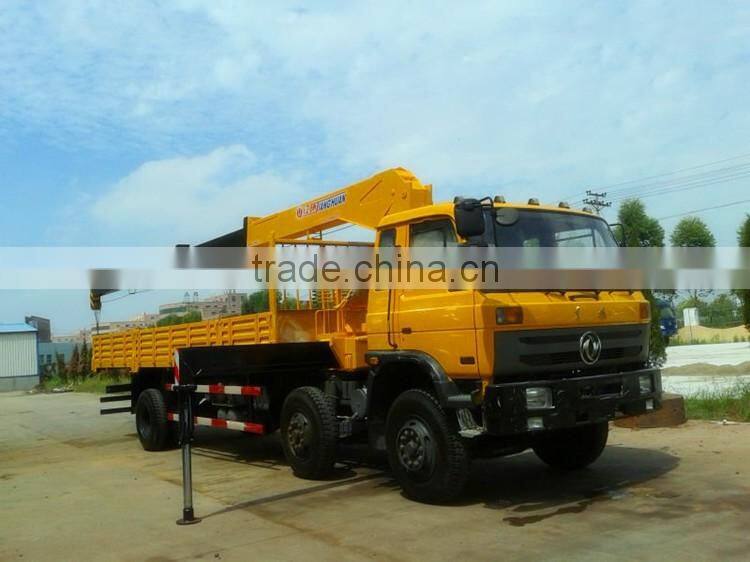

mobile crane manufacturer 8 ton link belt crane/franna cranes/knuckle boom crane trucks for sale
- truck crane
- truck crane
- truck crane
Product Description
* Specification of the truck crane SQ804
| Model No. | SQ804 | |
|
Main specification of crane |
Boom Style | Straight boom |
| pressure system | hydraulic system | |
| Max oil flow of hydraulic syetem | 80 L/Min | |
| reated pressure of hydraulic system | 24 Mpa | |
| max lifting capacity | 8 T | |
| max lifting moment | 20 T.M | |
| max working radius | 12.85M | |
| max lifting height | 15.5M | |
| Derricking Scope | 1-71 ° | |
| Rotation Angle | 360°All Rotation | |
| Number of jib arm sections | 4 | |
| outrigger span | 5.7m | |
| Oil tank capacity | 120L | |
| crane weight | 3000kg | |
| installation space | 1250mm | |
* Specifications of chasiss truck
1.Jianghuan crane can be installed into most China domestic truck and also oversea brand trucks.
2. For the following truck specifications is only one models, other truck models can be reccommended according to the customer's requirements.
| Model No. | DFE5161JSQF |
| Engine | ISDe185 40 |
| Engine Power | 132kw |
| Engine Capacity | 6500ml |
| Overall Dimension | 9000×2490×3650 mm |
| Frame Inner Dimension | 5700×2294×550 mm |
| Total Weight | 15900Kg |
| Curb Weight | 8900Kg |
| Rated Load Capacity | 6805kg |
| Approach / Departure Angle | 20/12 ° |
| Front / Rear Over Hang | 1420/2480 mm |
| Axle-Load | 5900/10000 |
| Wheel Base | 5100mm |
| Number of Axles | 2 |
| Maximum Speed | 90km/h |
| Leaf Spring | 10/10+8 |
| Number of Tyres | 6 |
| Tyre Specification | 10.00-20,10.00R20 |
| Front Wheel Distance | 1960 |
| Rear Wheel Distance | 1860 |
| Integrated Fuel | 27.7 |
| Drive Type | 4×2 |
Packaging & Shipping
Our Services
1. Profeesional truck crane manufacture Since 1998. we have our own reasearch team for offering OEM and ODM service.
2. we offer SKD services for saving cost for our customer.
3. 1 year warranty period.
4. All the inquiry will be answered in 12 hours .
5. 15-30 days delivery time.
6. After-sales services team give the fast support to our customer
