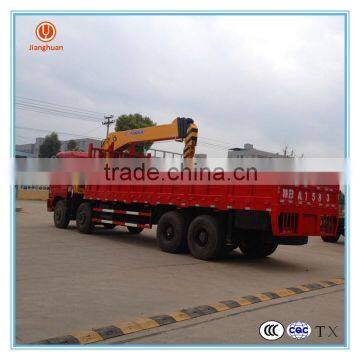

China Supplier 14 Ton Truck Mounted Telescopic Crane/vehicle Cranes/knuckle Booms for Sale
US$ 57,808 - 64,801
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Construction
Rated Loading Capacity:
11205kg
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Price 12 Ton Hydraulic Crawler Cranes/hydraulic Telescopic Crane/truck Mounted Lattice Boom CraneUS$ 53,216 - 60,209MOQ: 1 Set -
Hot Price 12 Ton Hydraulic Crawler Crane/loader Crane/wheel Mounted CraneUS$ 53,216 - 60,209MOQ: 1 Set
-
China Suppiler 12 Ton Tractor Mounted Crane/crane Truck for Sale/national Boom Truck CrareUS$ 53,216 - 60,209MOQ: 1 Set
-
Hot Price 12 Ton Flatbed Truck Crane for Sale/track Mounted Crane/carry Deck CranesUS$ 53,216 - 60,209MOQ: 1 Set
-
High Quality 10 Ton Cab Crane/heavy Lifting Crane/slewing Mobile CraneUS$ 40,940 - 45,757MOQ: 1 Set
Condition
New
Application
Construction
Rated Loading Capacity
11205kg
Rated Lifting Moment
35 T.M
Max. Lifting Load
14 ton
Max. Lifting Height
17m
Span
6m
Place of Origin
Jiangxi, China
Brand Name
Jianghuan
Model Number
SQ1404
Certification
CCC
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

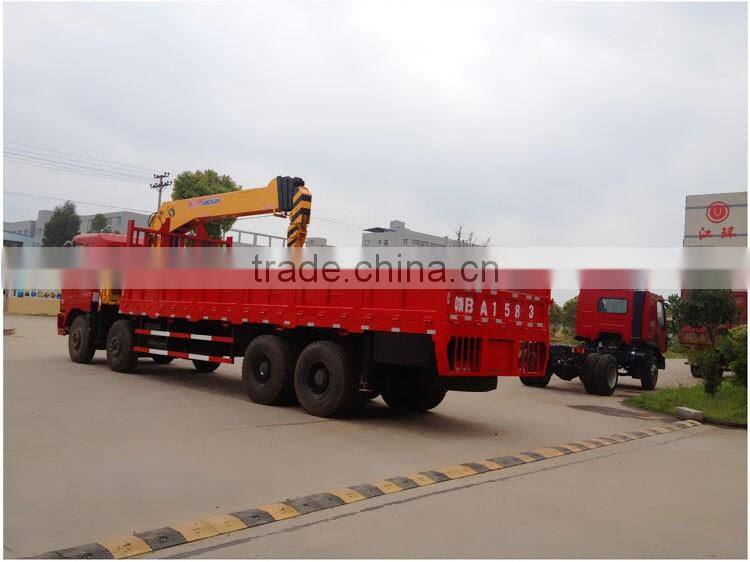

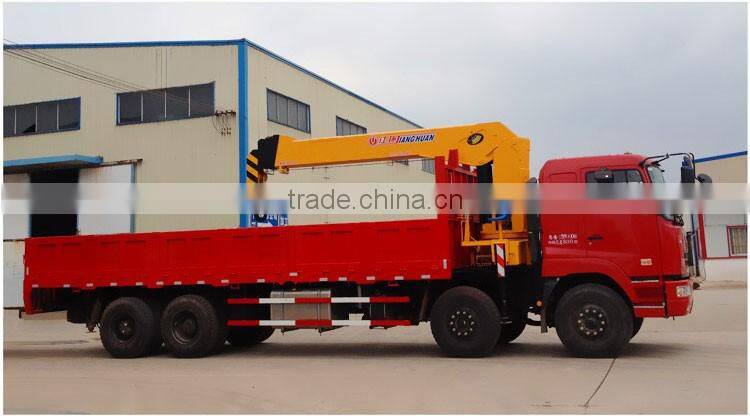

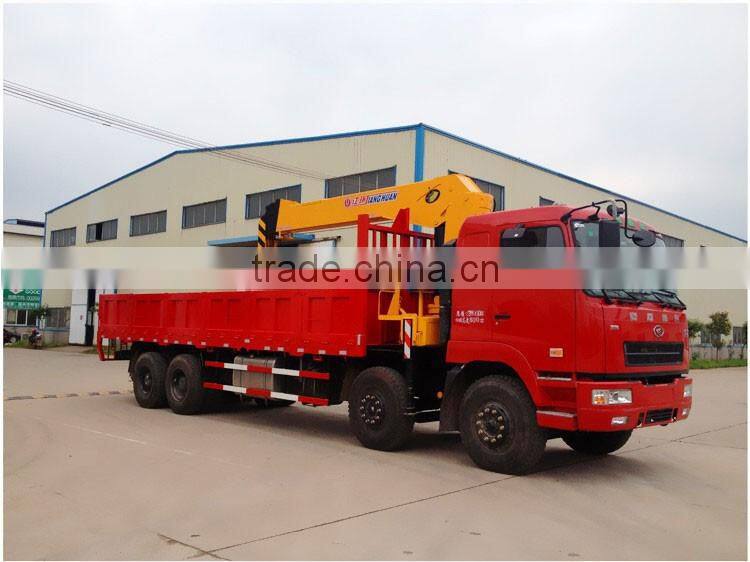

China supplier 14 ton truck mounted telescopic crane/vehicle cranes/knuckle booms for sale
* truck crane
* truck crane
* truck crane
Product Description

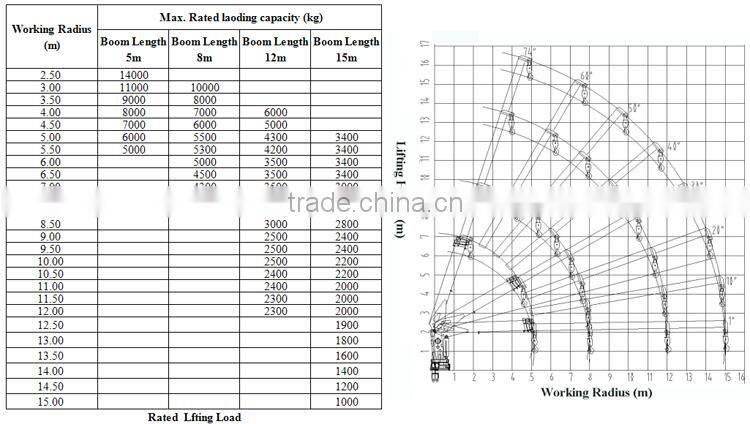

* Specification of the truck crane SQ1404
| Model No. | SQ1404 | |
|
Main specification of crane |
Boom Style | Straight boom |
| pressure system | hydraulic system | |
| Max oil flow of hydraulic syetem | 80 L/Min | |
| reated pressure of hydraulic system | 24 Mpa | |
| max lifting capacity | 14T | |
| max lifting moment | 35M | |
| max working radius | 15M | |
| max lifting height | 17M | |
| Derricking Scope | 1-76° | |
| Rotation Angle | 360°All Rotation | |
| Number of jib arm sections | 4 | |
| outrigger span | 6m | |
| Oil tank capacity | 150L | |
| crane weight | 4500kg | |
| installation space | 1250mm | |
* Specifications of chasiss truck
1.Jianghuan crane can be installed onto most China domestic truck and also oversea brand trucks.
2. For the following truck specifications is only one models, other truck models can be reccommended according to the customer's requirements.
| Model No. | DFE5258JSQF |
| Engine | YC6J245-42 |
| Engine Power | 180kw |
| Engine Capacity | 6700ml |
| Overall Dimension | 12000×2500×3800 mm |
| Cargo Frame Dimension | 8500×2294×550 mm |
| Total Weight | 24900 Kg |
| Curb Weight | 13500 Kg |
| Rated Load Capacity | 11205 kg |
| Approach / Departure Angle | 19/9° |
| Front / Rear Over Hang | 1480/3370 mm |
| Axle-Load | 7000/17900 |
| Wheel Base | 5850+1300 mm |
| Number of Axles | 10 |
| Maximum Speed | 90km/h |
| Leaf Spring | 9/910, 8/8/10,3/3/4,9/9- |
| Number of Tyres | 12 |
| Tyre Specification | 10.00-20,10.00R20,11.00-20 16PR,11.00R20 16PR |
| Front Wheel Distance | 1980 |
| Rear Wheel Distance | 1860/1860 |
| Integrated Fuel | 37.4 |
| Drive Type | 6x4 |
Packaging & Shipping
Our Services
1. Profeesional truck crane manufacture Since 1998. we have our own reasearch team for offering OEM and ODM service.
2. we offer SKD services for saving cost for our customer.
3. 1 year warranty period.
4. All the inquiry will be answered in 12 hours .
5. 15-30delivery time.
6. After-sales services team give the fast support to our customer
