Specifications
Full Automatic Toilet Paper Roll Cutting Machine is for cutting Toilet Paper and Kitchen Towel into small size90 times/minute

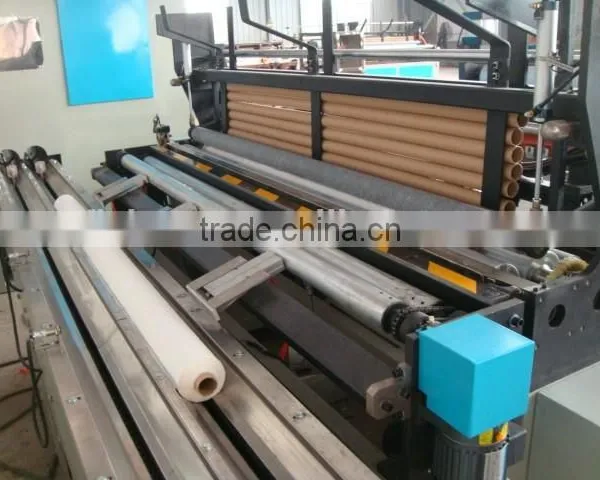

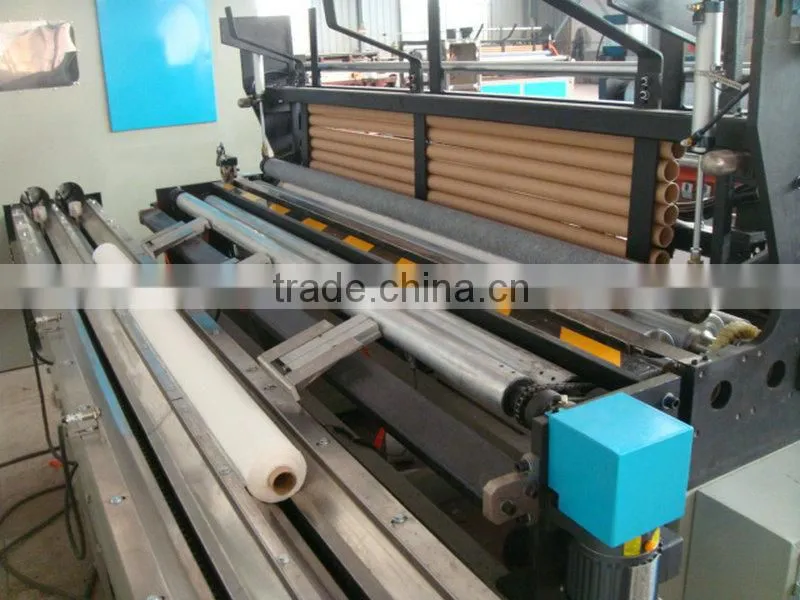

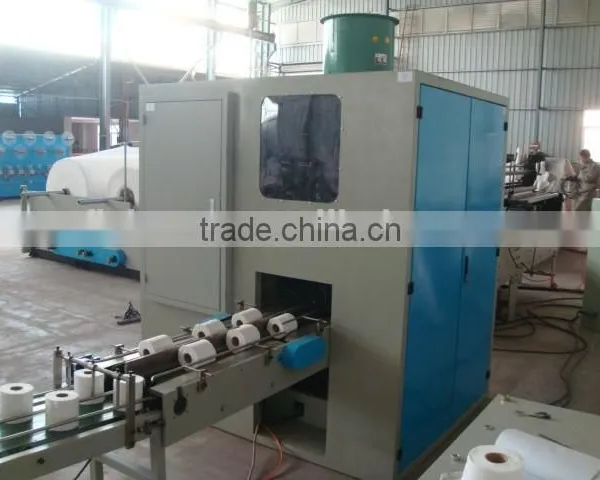

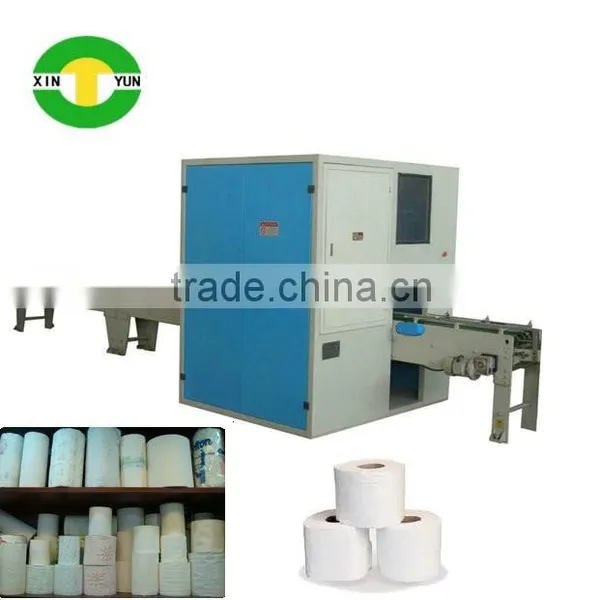

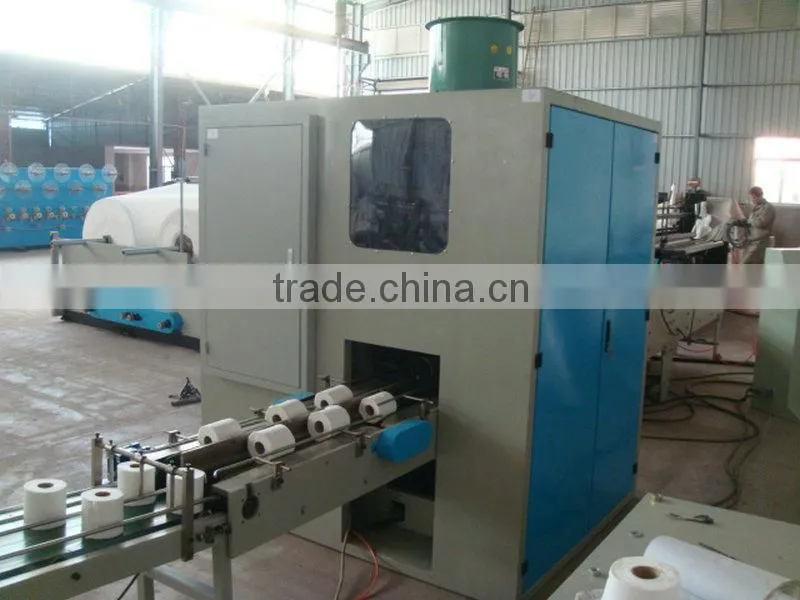

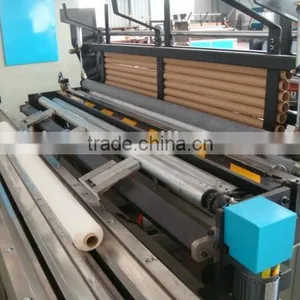

XY-AI-280 High Speed Full Automatic Small Toilet Paper Roll Cutting Machine
Function and features:
1. This machine is used to cut toilet paper and kitchen roll paper. It is easy to operate and enjoy high speed
2. Adopt computer control production, reset automatically, cut, cut and wrap length, adjustable the period of cutting.
3. Equipped with touch screen person-to-computer control, production parameter, production trouble can be showed on the screen.

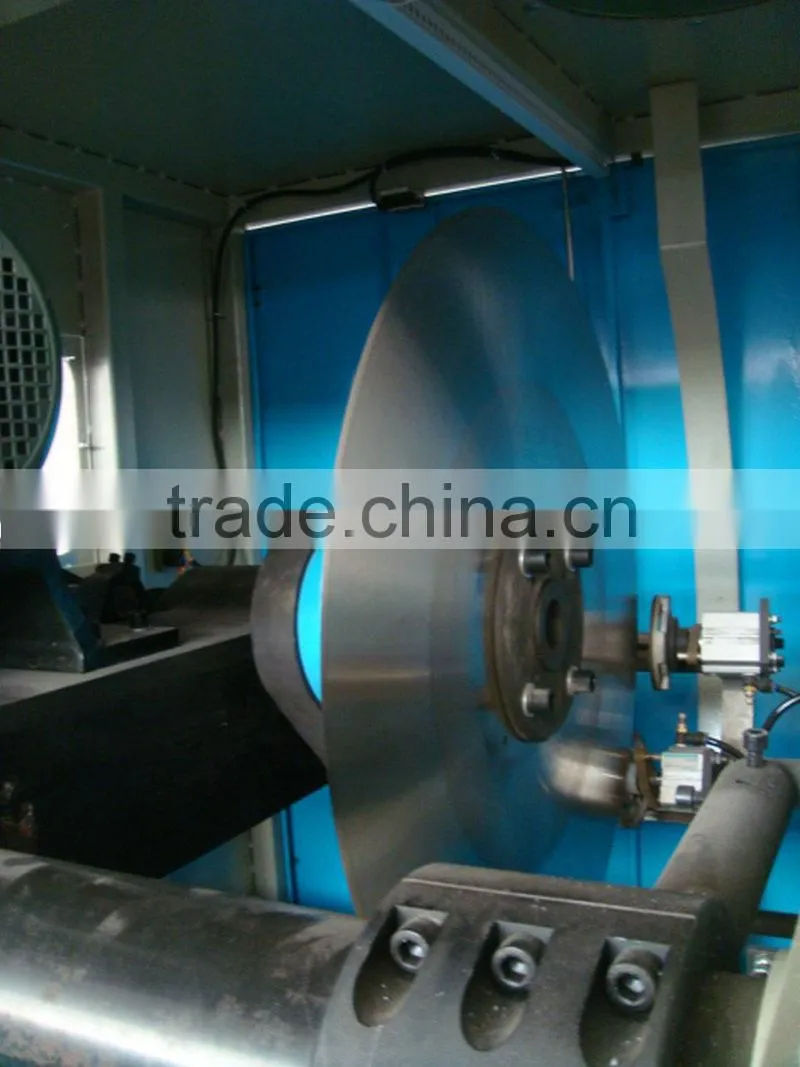

4. 610 mm diameter disc knife high speed revolving rapidly. ( cut two roll paper at one time).Without knife mark and rough edges while cutting.
5. Equipped with advanced photoelectric checking system, advanced servo driving system, pneumatic element, bearing tool and other advanced products.
6. Equipped with feeding knife grinder, the grinding of knife blade is higher precision. It is safe and insures while grind the knife.
Main technical parameter:
1. Paper Roll Length: 1200~2800mm (it is according to customers’ requirement)
2. Diameter of paper roll: φ90~φ160mm ( it can be changed)
3. Production speed: times of cut 80~100 times/min ×2 roll/time
4. Power 10kw(380v 50Hz)
5. Overall size: 7.0m×1.5m×2.3m( L×W×H)
6. Weight: about 3 ton
Video link: /watch?v=CdKfeNK_wEc
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional manufacturer of: 1)Toilet Paper Machine 2)Facial Tissue Machine
3)Napkin Paper machine 4)Hand Towel Paper Machine 5)Pocket Tissue Machine
6)All kinds of Tissue Paper Cutting and Packing Machine and another Household Paper Equipments Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
small toilet paper toill cutting machine toilet paper cutting machine toilet roll cutting machine paper roll cutting machine small toilet paper cutting machine paper cutting machine small toilet roll cutting machine
