Home > Products > MV instrument transformer > outdoor current transformer 10KV 12KV LZW-10
outdoor current transformer 10KV 12KV LZW-10
- Ningbo / Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dixsen | |
| Model Number | LZW-10 | Usage | Current | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Other, primary,secondary |
Product Description
Specifications
A.Founded in1992B.IEC Standard
C.ISO9001,14001
D.manufacturer
E. 430 employees,15000 square meter factory
Discription
LZW-10 outdoor current transformer 10KV 12KV
type midium voltage current transformer is a range of well cast-resin metering and protection combined current transformer, used in 50Hz, rated voltage up to 12KV and below AC power system, it's especially suit for using in narrow case (fixed) ring-net switchgear.
Specification:
Um: 12KV
Test Voltage: 42/75KV
Rated Primary Current: 5-3150A
Rated Secondary Current: 5/1A
Rated Short-time thermal Current(Ith): Up to 100In, Max 100KA
Rated Dynamic Current: 2.5x Ith
Rated Frequency: 50/60HZ
Accuracy: 0.5, 0.2/P, 10P
Rated Accuracy Limit Factor: FS<10

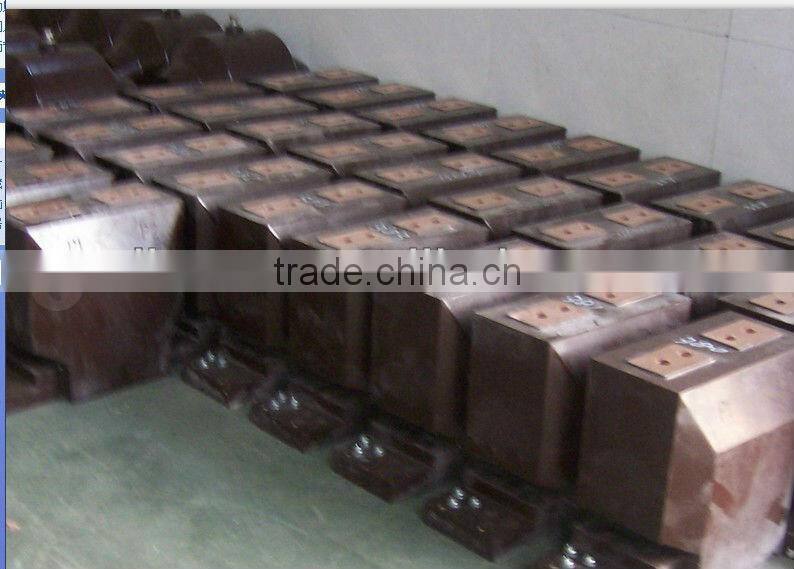

2. Packing show

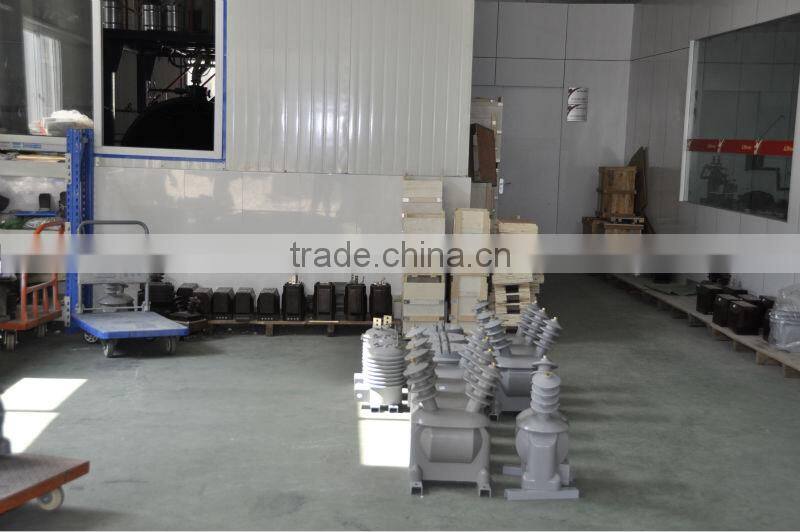

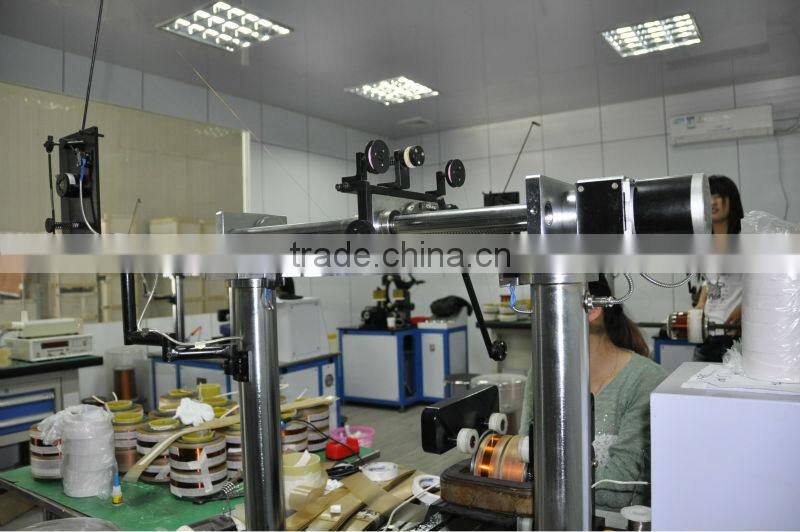

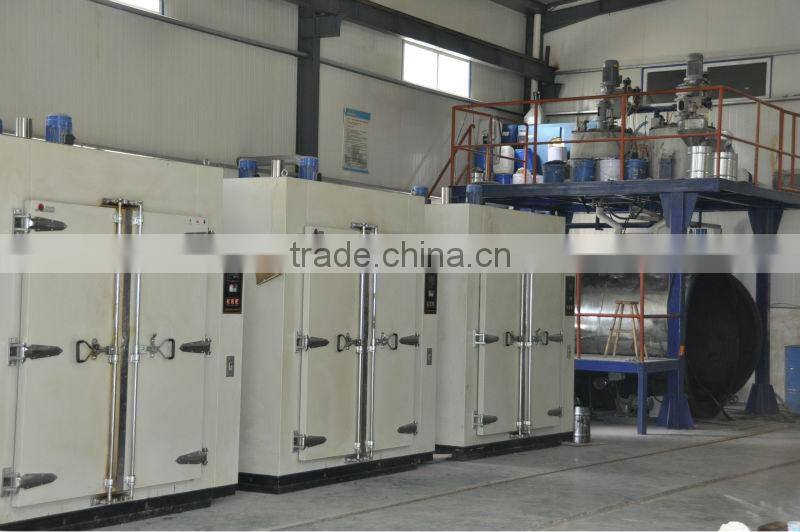

3. Company show
4. Production series
....
