Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > HIGH VOLTAGE VT

HIGH VOLTAGE VT

Name: HIGH VOLTAGE VT
Brand: Dixsen
SKU: 114706053

US$ 1 - 1,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Dixsen

Model Number:

JDZ(X)(F)9-35Q

Contact Supplier Request Quote Chat Now

Zhejiang Dixsen Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port(Ningbo shanghai)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Dixsen

Model Number JDZ(X)(F)9-35Q

Usage Other, VOLTAGE

Phase Single

Coil Structure Toroidal

Coil Number Other, primary,secondary

Specifications

A.Founded in1980
B.CE,ROHS,SGS,UL,KEMA,VDE,TSE,CB
C.ISO9001,14001
D.manufacturer
E. 430 employees,15000 square meter factory

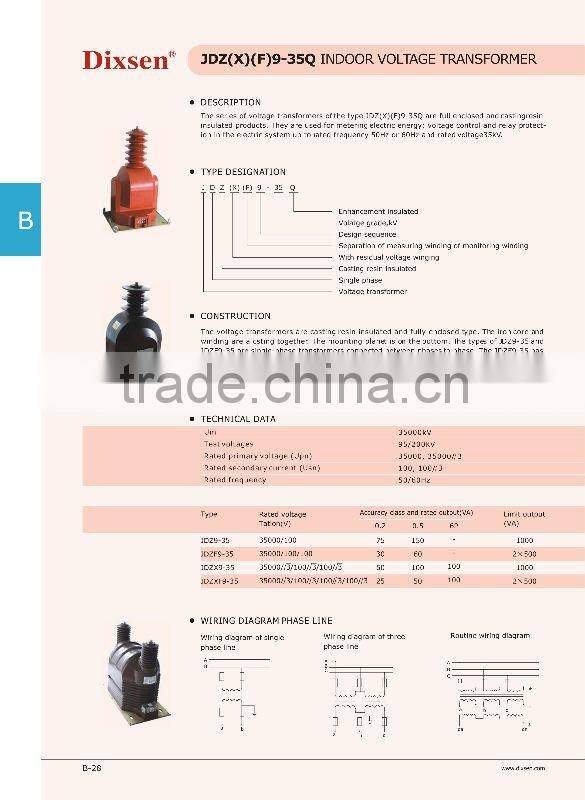

JDZ(X)(F)9-35Q INDOOR VOLTAGE TRANSFORMER

TECHNICAL DATA

The current transformers of types JDZ(X)(F)9-35Qare casting resins and fully enclosed. It is used for metering electric energy ad current, relay protection in the electrical system up to rated frequency 50Hz or 60Hz and rated voltage 35kV. The transformers can be executed according to the standards IEC185 and GB1208-1997.

·TYPE DESIGNATION
LZZB9-35, 40.5 W1/W2

·TECHNICAL DATA
Um                                                         40.5kV
Test voltages                              95/185(200)kV
Rated primary current                           20-2500A
Rated secondary current                             5/1A
Rated dynamic current                          2.5 x Ith
Rated frequency                                   50/60Hz
Accuracy                                 0.5,0.2/ 5P,10P
Rated accuracy limit factor                       FS<10
