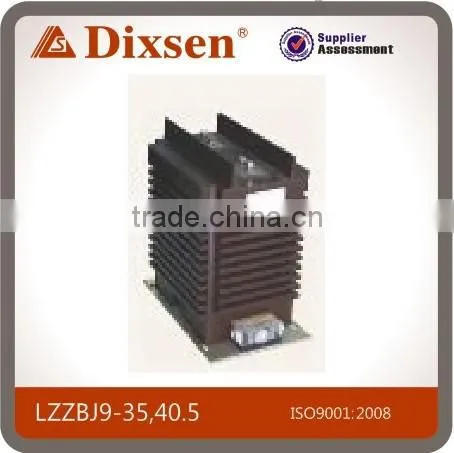

LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS

LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS thumbnail-1
LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS photo-1
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dixsen
Model Number:
LZZBJ9-35,40.5
Contact Supplier Request Quote Chat Now
Zhejiang Dixsen Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port(Ningbo shanghai)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dixsen
Model Number LZZBJ9-35,40.5
Usage Current
Phase Single
Coil Structure Toroidal
Coil Number Other, primary,secondary

Specifications

A.Founded in1980
B.CE,ROHS,SGS,UL,KEMA,VDE,TSE,CB
C.ISO9001,14001
D.manufacturer
E. 430 employees,15000 square meter factory

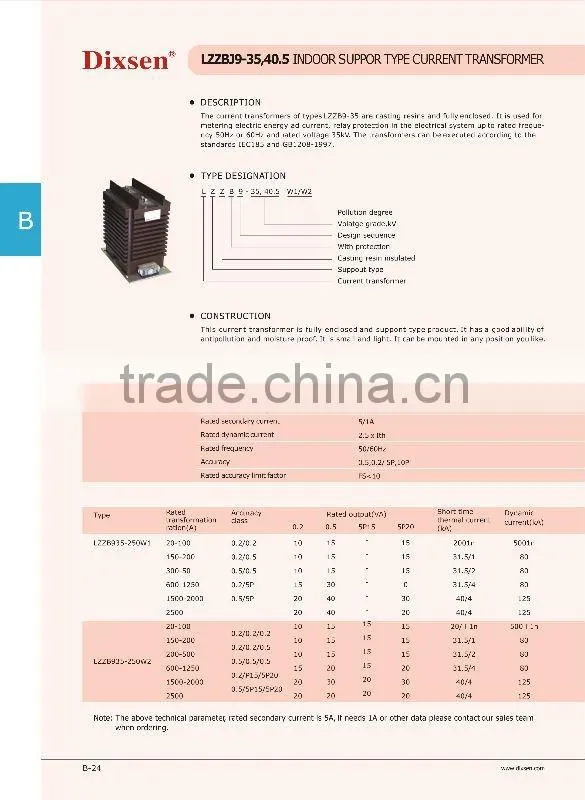

LZZBJ9-35,40.5 INDOOR SUPPORT TYPE CURRENT TRANSFORMER

The current transformers of types LZZB9-35 are casting resins and fully enclosed. It is used for metering electric energy ad current, relay protection in the electrical system up to rated frequency 50Hz or 60Hz and rated voltage 35kV. The transformers can be executed according to the standards IEC185 and GB1208-1997.

·TYPE DESIGNATION
LZZB9-35, 40.5 W1/W2

·TECHNICAL DATA
Um                                                         40.5kV
Test voltages                                95/185(200)kV
Rated primary current                           20-2500A
Rated secondary current                             5/1A
Rated dynamic current                           2.5 x Ith
Rated frequency                                    50/60Hz
Accuracy                                   0.5,0.2/ 5P,10P
Rated accuracy limit factor                       FS<10



 LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS







  LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS





LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS



LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS



LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS





2. Packing show

LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS



3. Company show

LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS





 LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS



4. Production series

LZZBJ9-35,40.5 HIGH VOLTAGE SUPPORT TYPE INSTRUMENT TRANSFORMERS





....
